ECL05-30 Series

Manufacturer: XP Power

Catalog

SWITCHING POWER SUPPLIES PSU, 5W, MINI, OPEN FRAME

Part	Mounting Type	Number of Outputs	Features	Power (Watts)	Efficiency	Applications	Standard Number	Voltage - Output 1	Voltage - Isolation	Current - Output 1 [custom]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Type	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output 1	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension	Size / Dimension [y]	Voltage - Output 2	Current - Output 2	Approval Agency	Load Regulation	Weight	Weight	Line Regulation	Current - Output (Max)	Package / Case	Current - Output (Max) [Max]	Voltage - Output 3	Current - Output 3
XP Power ECL05US15-T	Chassis Mount	1	Adjustable Output DC Input Capable Universal Input	5 W	80 %	ITE (Commercial)	62368-1	15 V	3000 V	330 mA	34.6 mm	87.9 mm	1.36 in	22.4 mm	0.88 in	3.46 in	Open Frame	70 °C	-20 °C
XP Power ECL25US24-S	Chassis Mount	1	Adjustable Output DC Input Capable Universal Input	25 W		ITE (Commercial)	62368-1	24 V	3000 V								Enclosed	70 °C	-20 °C	1.04 A	3.78 in	1.12 "	28.5 mm 40 mm 96 mm	1.57 "
XP Power ECL30UD02-T	Chassis Mount	2	Adjustable Output DC Input Capable Universal Input	30 Watts	83 %	ITE (Commercial)	62368-1	15 V	3000 V		34.6 mm	87.9 mm	1.36 in	22.4 mm	0.88 in	3.46 in	Open Frame	70 °C	-20 °C	1 A					-15 V	1 A
XP Power ECL15US48-S	Chassis Mount	1	Adjustable Output DC Input Capable Universal Input	15 W		ITE (Commercial)	62368-1	48 V	4000 V				34.5 mm		26.4 mm	84 mm	Enclosed	70 °C	-20 °C	320 mA	3.3 "	1.04 in		1.36 "			CE

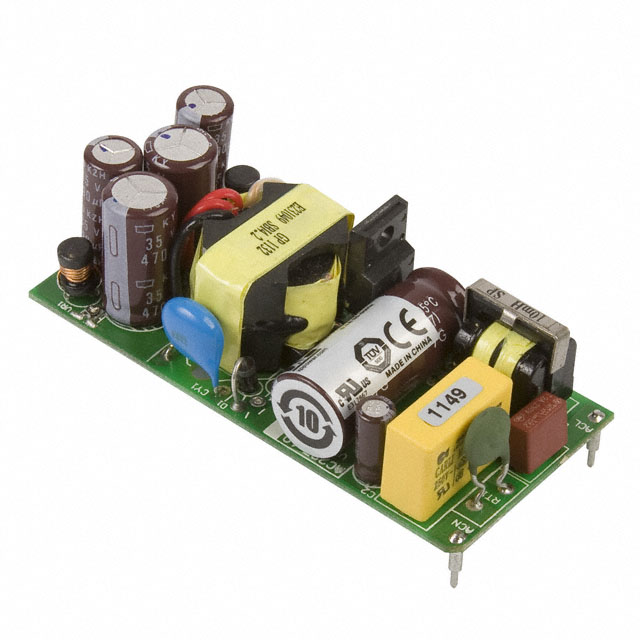

XP Power ECL30UD03-P	Through Hole	2	Universal Input	30 Watts	81 %	ITE (Commercial)	62368-1	5 V					34.6 mm		26.7 mm	75.2 mm	Open Frame	70 °C	-20 °C		2.96 in	1.05 in		1.36 "			CSA cUL EN IEC UL	±1%	59.87 g	0.132 lb	0.5 %	1.3 A 3 A	6-DIP Module
XP Power ECL05US48-E	Through Hole	1	Universal Input	5 W		ITE (Commercial)	62368-1	48 V					27.2 mm		23 mm	52.3 mm	Enclosed	70 °C	-20 °C		2.06 "	0.91 in		1.07 in			CSA cUL EN IEC UL	±1%	59.87 g	0.132 lb	0.5 %		4-DIP Module	100 mA
XP Power ECL30UT03-S	Chassis Mount	3	Adjustable Output DC Input Capable Universal Input	30 Watts	81 %	ITE (Commercial)	62368-1	5 V	3000 V								Enclosed	70 °C	-20 °C	3 A	3.78 in	1.12 "	28.5 mm 40 mm 96 mm	1.57 "	15 V	500 mA									-15 V	500 mA
XP Power ECL25US48-T	Chassis Mount	1	Adjustable Output DC Input Capable Universal Input	25 W		ITE (Commercial)	62368-1	48 V	3000 V		34.6 mm	87.9 mm	1.36 in	22.4 mm	0.88 in	3.46 in	Open Frame	70 °C	-20 °C
XP Power ECL15US12-T	Chassis Mount	1	Adjustable Output DC Input Capable Universal Input	15 W	80 %	ITE (Commercial)	62368-1	12 V	3000 V				31.7 mm		20 mm	78.7 mm	Open Frame	70 °C	-20 °C	1.25 A	3.1 in	0.78 in		1.25 in
XP Power ECL15US24-P	Through Hole	1	Universal Input	15 W		ITE (Commercial)	62368-1	24 V					30.7 mm		24.4 mm	62 mm	Open Frame	70 °C	-20 °C		2.44 "	0.96 in		1.21 in			CSA EN IEC UL						4-DIP Module	630 mA
