PH9572 Series

Catalog

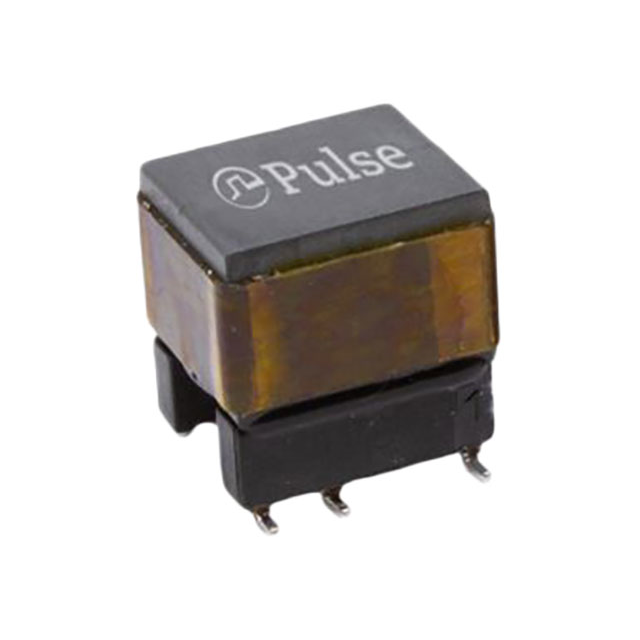

POWER TRANSFORMERS 2.8MH 2500V 2:1:1 DCR=1.6-1.0OHMS

Part	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Turns Ratio - Primary:Secondary [custom]	Turns Ratio - Primary:Secondary [custom]	Turns Ratio - Primary:Secondary [custom]	Transformer Type	ET (Volt-Time)	Mounting Type	Inductance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Pulse Electronics PH9572.211ANLT	125 °C	-40 C	10.2 mm	7.5 mm	0.295 in	0.402 in	1	1	2	Gate Drive	84.7 VµS	Surface Mount	4 mH	11 mm	0.433 in
Pulse Electronics PH9572.122ANLT	125 °C	-40 C	10.2 mm	7.5 mm	0.295 in	0.402 in				Gate Drive	42.4 VµS	Surface Mount	1 mH	11 mm	0.433 in
Pulse Electronics PH9572.322ANLT										Gate Drive		Surface Mount
