1337418 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

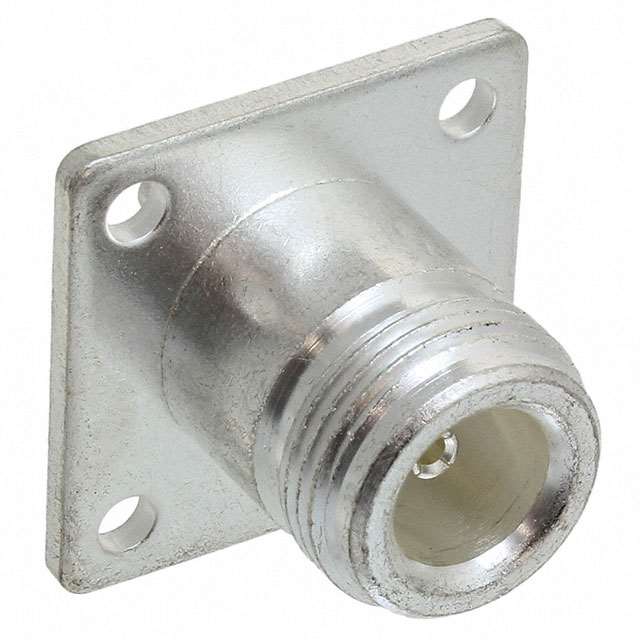

CONN N JACK STR 50 OHM SOLDER
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Body Material | Mating Cycles | Center Contact Plating | Body Finish | Voltage Rating | Connector Style | Connector Type | Mounting Feature | Housing Color | Impedance | Mounting Type | Number of Ports | Center Contact Material | Contact Termination | Frequency - Max [Max] | Fastening Type | Shield Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | Brass | 500 | Silver | Silver | 1000 VDC | N Type | Female Socket Jack | Flange | Silver | 50 Ohms | Panel Mount | 1 | Brass | Solder Cup | 11 GHz | Threaded | Solder |
