R14329 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K
TNC / STRAIGHT SQUARE FLANGE JAC
| Part | Body Material | Center Contact Plating | Insertion Loss | Mating Cycles | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Dielectric Material | Mounting Type | Fastening Type | Shield Termination | Connector Style | Number of Ports | Contact Termination | Housing Color | Impedance | Frequency - Max [Max] | Cable Group | Mounting Feature | Connector Type | Center Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

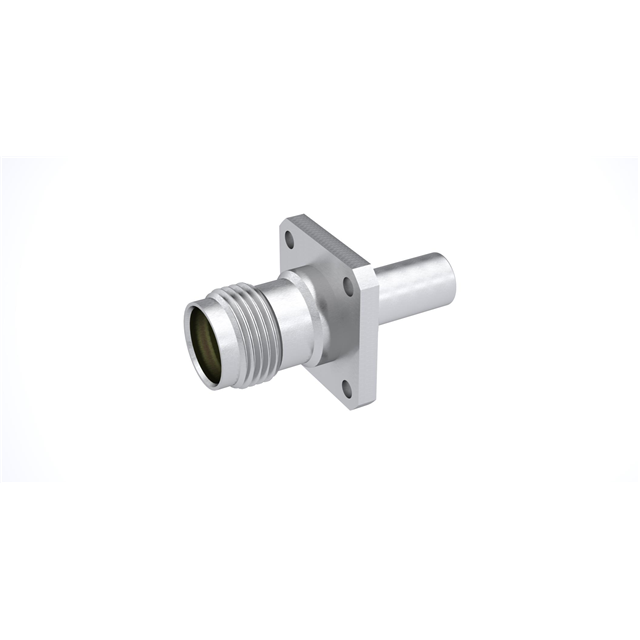

 Radiall USA, Inc. | Stainless Steel | Gold | 0.18 dB | 500 | -65 ░C | 165 °C | 500 V | Polytetrafluoroethylene (PTFE) | Panel Mount | Threaded | Crimp | TNC | 1 | Crimp | Silver | 50 Ohms | 18 GHz | 223 400 RG-142 | Flange | Female Socket Jack | Bronze |

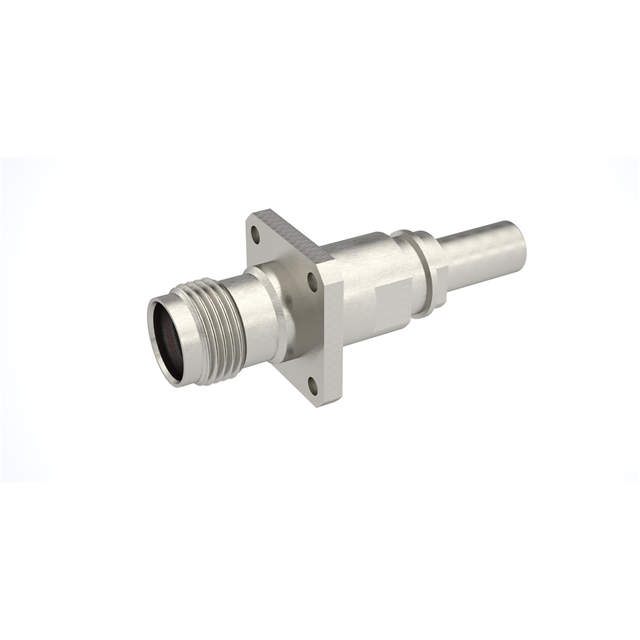

 Radiall USA, Inc. | Stainless Steel | Gold | 0.18 dB | 500 | -65 ░C | 165 °C | 500 V | Polytetrafluoroethylene (PTFE) | Panel Mount | Threaded | Crimp | TNC | 1 | Crimp | Silver | 50 Ohms | 66 GHz 6000 MHz | 223 400 RG-142 | Flange | Female Socket Jack | Beryllium Copper |
