R6-32 Series
Manufacturer: APM Hexseal
Beta
⌘K
MACHINE SCREW PAN PHILLIPS 6-32
| Part | Length - Overall [x] | Length - Overall [x] | Material | Length - Below Head [x] | Length - Below Head [x] | Length - Below Head [x] | Screw Head Type | Type | Head Diameter | Head Diameter [diameter] | Thread Size | Head Height | Head Height | Drive Type | Features | Length - Below Head | Length - Below Head | Length - Below Head | Length - Overall | Length - Overall | Length - Below Head | Length - Below Head [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 APM Hexseal | 8.81 mm | 0.347 in | Stainless Steel | 1/4 | 6.35 mm | 0.25 in | Pan Head | Machine Screw | 7.47 mm | 0.294 in | #6-32 | 2.46 mm | 0.097 " | Phillips | Self Sealing | |||||||

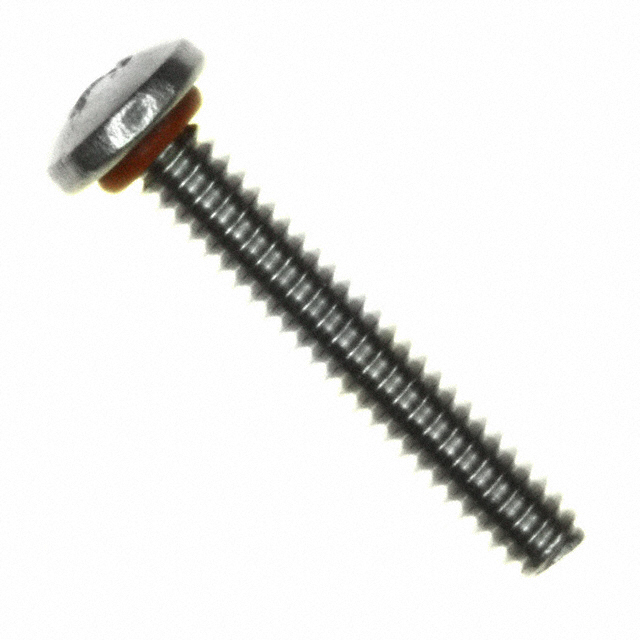

 APM Hexseal | Stainless Steel | Pan Head | Machine Screw | 7.47 mm | 0.294 in | #6-32 | 2.46 mm | 0.097 " | Phillips | Self Sealing | 0.875 " | 0.875 " | 22.23 mm | 24.7 mm | 0.972 in | |||||||

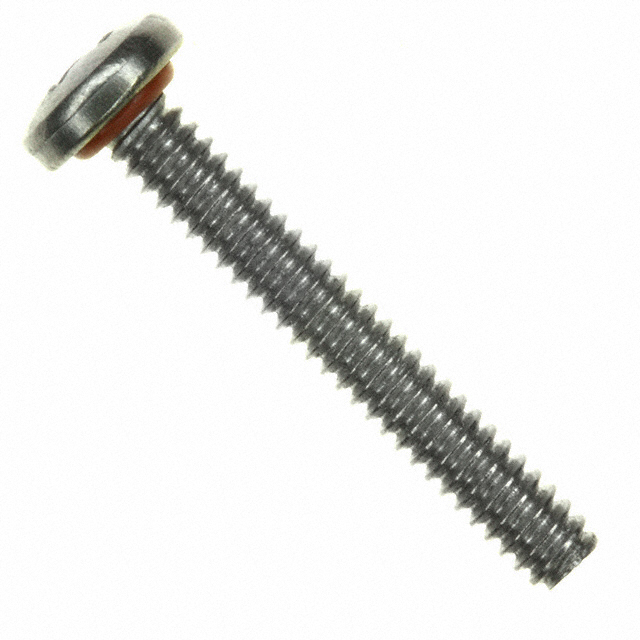

 APM Hexseal | 27.86 mm | 1.097 " | Stainless Steel | Pan Head | Machine Screw | 7.47 mm | 0.294 in | #6-32 | 2.46 mm | 0.097 " | Phillips | Self Sealing | 25.4 mm | 1 in | ||||||||

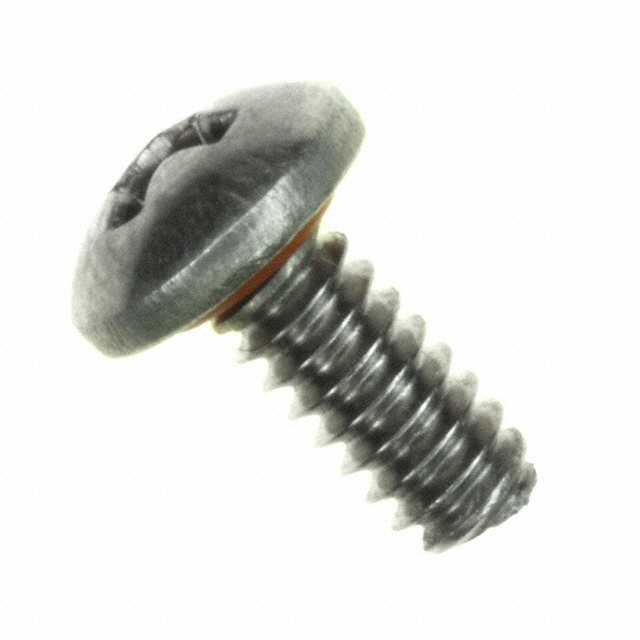

 APM Hexseal | 10.41 mm | 0.41 in | Stainless Steel | Pan Head | Machine Screw | 7.47 mm | 0.294 in | #6-32 | 2.46 mm | 0.097 " | Phillips | Self Sealing | 0.313 in | 0.3125 in | 7.95 mm | |||||||
 APM Hexseal | 15.16 mm | 0.597 in | Stainless Steel | Pan Head | Machine Screw | 7.47 mm | 0.294 in | #6-32 | 2.46 mm | 0.097 " | Phillips | Self Sealing | 0.5 in | 0.5 in | 12.7 mm | |||||||

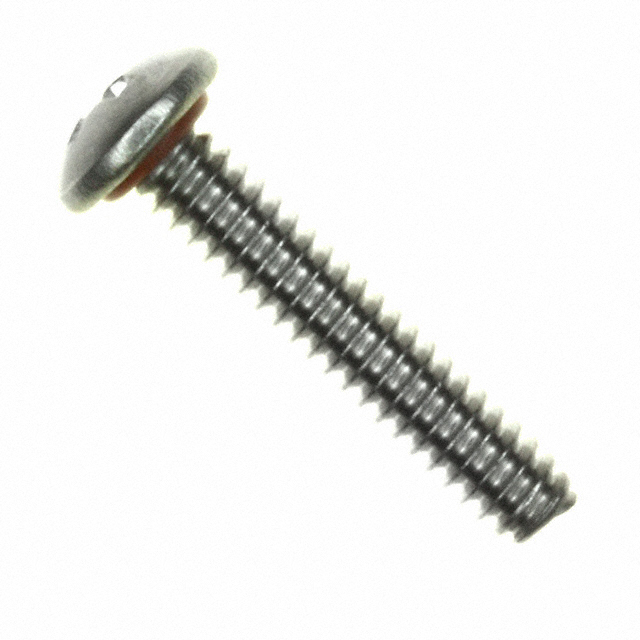

 APM Hexseal | 21.51 mm | 0.847 in | Stainless Steel | 19.05 mm | 0.75 in | Pan Head | Machine Screw | 7.47 mm | 0.294 in | #6-32 | 2.46 mm | 0.097 " | Phillips | Self Sealing | 0.75 in | |||||||

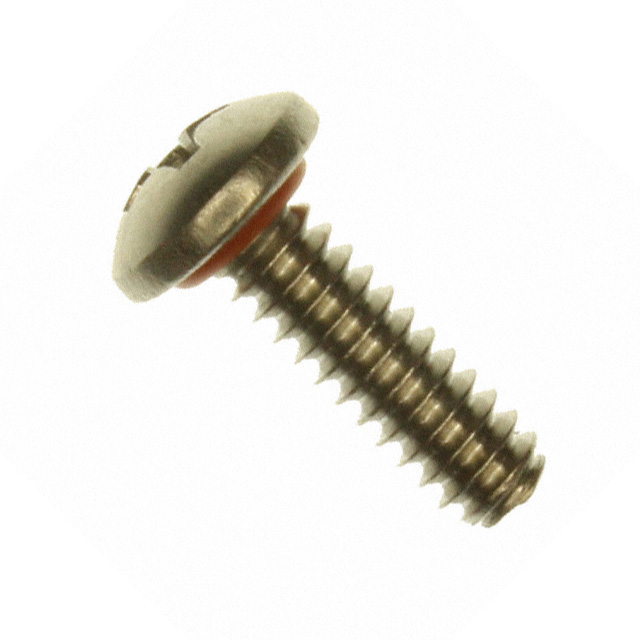

 APM Hexseal | 13.59 mm | 0.535 in | Stainless Steel | 0.438 " | Pan Head | Machine Screw | 7.47 mm | 0.294 in | #6-32 | 2.46 mm | 0.097 " | Phillips | Self Sealing | 0.4375 " | ||||||||
 APM Hexseal | 16.76 mm | 0.66 in | Stainless Steel | Pan Head | Machine Screw | 7.47 mm | 0.294 in | #6-32 | 2.46 mm | 0.097 " | Phillips | Self Sealing | 0.563 in | 0.5625 in | 14.3 mm | |||||||
APM Hexseal | Pan Head | Machine Screw | 7.47 mm | 0.294 in | #6-32 | Phillips | Self Sealing | 0.313 in | 0.3125 in | 7.95 mm | ||||||||||||

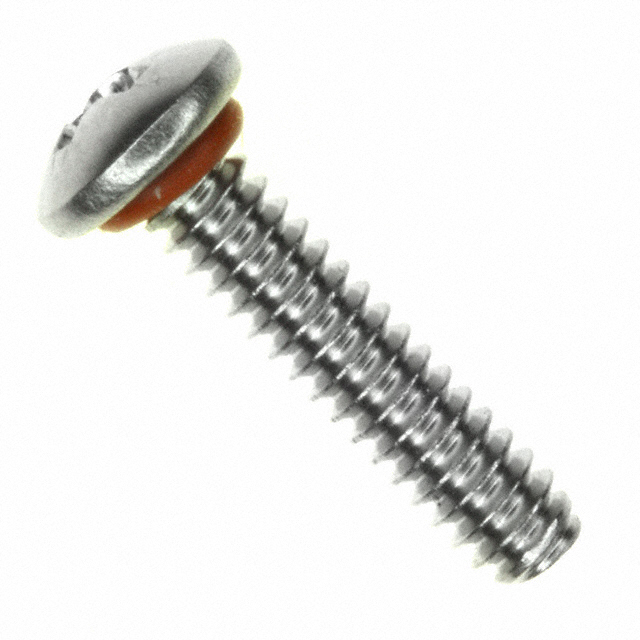

 APM Hexseal | 18.34 mm | 0.722 " | Stainless Steel | Pan Head | Machine Screw | 7.47 mm | 0.294 in | #6-32 | 2.46 mm | 0.097 " | Phillips | Self Sealing | 0.625 in | 15.88 mm | 0.625 in |
