FHQ69273 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

RF ANT 475/829MHZ MODULE RP-SMA

Part	Gain	Applications	Power - Max [Max]	RF Family/Standard	Ingress Protection	Frequency Range [Max]	Frequency Range [Min]	Mounting Type	Height (Max) [Max] [z]	Height (Max) [Max] [z]	Frequency Group	Number of Bands	Termination	Antenna Type	VSWR	Frequency (Center/Band)
TE Connectivity AMP Connectors FHQ69273CE-518VC5	8.2 dBi	GPS LTE WLAN	10 W	Cellular Navigation WiFi	IP67	2.7 GHz 5.875 GHz 520 MHz 960 MHz	1.71 GHz 4.9 GHz 430 MHz 698 MHz	Panel Mount	160 mm	6.299 in	Wide Band	4	RP-SMA Male SMA Male	Module	2	2.2 GHz 475 MHz 829 MHz 5400 MHz
TE Connectivity AMP Connectors FHQ69273CE-518VC3	8.2 dBi	GPS LTE WLAN	10 W	Cellular Navigation WiFi	IP67	2.7 GHz 5.875 GHz 520 MHz 960 MHz	1.71 GHz 4.9 GHz 430 MHz 698 MHz	Panel Mount	160 mm	6.299 in	Wide Band	4		Module	2	2.2 GHz 475 MHz 829 MHz 5400 MHz
TE Connectivity AMP Connectors FHQ69273CE-518VC5	8.2 dBi	GPS LTE WLAN	10 W	Cellular Navigation WiFi	IP67	2.7 GHz 5.875 GHz 520 MHz 960 MHz	1.71 GHz 4.9 GHz 430 MHz 698 MHz	Panel Mount	160 mm	6.299 in	Wide Band	4	RP-SMA Male SMA Male	Module	2	2.2 GHz 475 MHz 829 MHz 5400 MHz
TE Connectivity AMP Connectors FHQ69273CD-518VC4	7.8 dBi	GPS LTE WLAN	10 W	Cellular Navigation WiFi	IP67	2.7 GHz 5.875 GHz 430 MHz 960 MHz	1.71 GHz 4.9 GHz 380 MHz 698 MHz	Panel Mount	160 mm	6.299 in	Wide Band	4	FME Male SMA Male	Module	1.5	2.2 GHz 405 MHz 829 MHz 5400 MHz
TE Connectivity AMP Connectors FHQ69273CE-518VC4	8.2 dBi	GPS LTE WLAN	10 W	Cellular Navigation WiFi	IP67	2.7 GHz 5.875 GHz 520 MHz 960 MHz	1.71 GHz 4.9 GHz 430 MHz 698 MHz	Panel Mount	160 mm	6.299 in	Wide Band	4	FME Male SMA Male	Module	2	2.2 GHz 475 MHz 829 MHz 5400 MHz
TE Connectivity AMP Connectors FHQ69273CD-518VC6	7.8 dBi	GPS LTE WLAN	10 W	Cellular Navigation WiFi	IP67	2.7 GHz 5.875 GHz 430 MHz 960 MHz	1.71 GHz 4.9 GHz 380 MHz 698 MHz	Panel Mount	160 mm	6.299 in	Wide Band	4	FME Male RP-SMA Male SMA Male	Module	1.5	2.2 GHz 405 MHz 829 MHz 5400 MHz
TE Connectivity AMP Connectors FHQ69273CD-518VC3	7.8 dBi	GPS LTE WLAN	10 W	Cellular Navigation WiFi	IP67	2.7 GHz 5.875 GHz 430 MHz 960 MHz	1.71 GHz 4.9 GHz 380 MHz 698 MHz	Panel Mount	160 mm	6.299 in	Wide Band	4		Module	1.5	2.2 GHz 405 MHz 829 MHz 5400 MHz
TE Connectivity AMP Connectors FHQ69273CE-518VC4	8.2 dBi	GPS LTE WLAN	10 W	Cellular Navigation WiFi	IP67	2.7 GHz 5.875 GHz 520 MHz 960 MHz	1.71 GHz 4.9 GHz 430 MHz 698 MHz	Panel Mount	160 mm	6.299 in	Wide Band	4	FME Male SMA Male	Module	2	2.2 GHz 475 MHz 829 MHz 5400 MHz

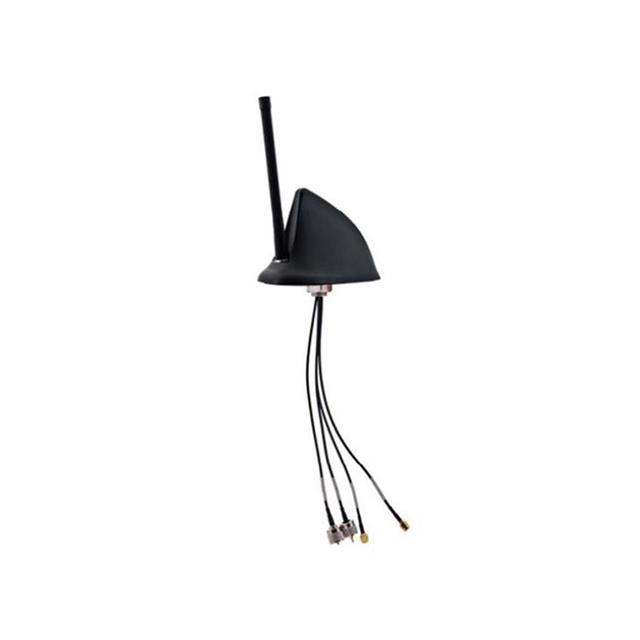

TE Connectivity AMP Connectors FHQ69273CE-518VC3	8.2 dBi	GPS LTE WLAN	10 W	Cellular Navigation WiFi	IP67	2.7 GHz 5.875 GHz 520 MHz 960 MHz	1.71 GHz 4.9 GHz 430 MHz 698 MHz	Panel Mount	160 mm	6.299 in	Wide Band	4		Module	2	2.2 GHz 475 MHz 829 MHz 5400 MHz
TE Connectivity AMP Connectors FHQ69273CD-518VC5	7.8 dBi	GPS LTE WLAN	10 W	Cellular Navigation WiFi	IP67	2.7 GHz 5.875 GHz 430 MHz 960 MHz	1.71 GHz 4.9 GHz 380 MHz 698 MHz	Panel Mount	160 mm	6.299 in	Wide Band	4	RP-SMA Male SMA Male	Module	1.5	2.2 GHz 405 MHz 829 MHz 5400 MHz
