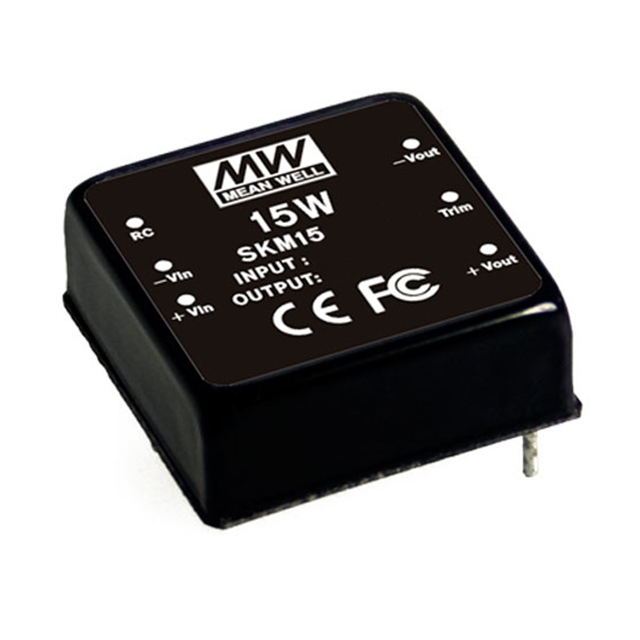

SKM15 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
DC DC CONVERTER 15V 15W
| Part | Features | Voltage - Input (Max) [Max] | Type | Power (Watts) | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Operating Temperature [Max] | Operating Temperature [Min] | Number of Outputs | Current - Output (Max) [Max] | Voltage - Input (Min) [Min] | Voltage - Isolation | Efficiency | Package / Case | Applications | Mounting Type | Voltage - Output 1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | OCP OVP Remote On/Off SCP | 75 V | Isolated Module | 15 W | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | 80 ¯C | -40 °C | 1 | 1 A | 36 V | 1.5 kV | 87 % | 6-DIP Module | ITE (Commercial) | Through Hole | 15 V |
MEAN WELL USA Inc. | OCP OVP Remote On/Off SCP | 75 V | Isolated Module | 15 W | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | 80 ¯C | -40 °C | 1 | 3 A | 36 V | 1.5 kV | 86 % | 6-DIP Module | ITE (Commercial) | Through Hole | 5 V |
MEAN WELL USA Inc. | OCP OVP Remote On/Off SCP | 36 V | Isolated Module | 15 W | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | 80 ¯C | -40 °C | 1 | 1 A | 18 V | 1.5 kV | 88 % | 6-DIP Module | ITE (Commercial) | Through Hole | 15 V |
MEAN WELL USA Inc. | OCP OVP Remote On/Off SCP | 18 V | Isolated Module | 15 W | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | 80 ¯C | -40 °C | 1 | 1 A | 9 V | 1.5 kV | 88 % | 6-DIP Module | ITE (Commercial) | Through Hole | 15 V |
MEAN WELL USA Inc. | OCP OVP Remote On/Off SCP | 36 V | Isolated Module | 15 W | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | 80 ¯C | -40 °C | 1 | 1.25 A | 18 V | 1.5 kV | 87 % | 6-DIP Module | ITE (Commercial) | Through Hole | 12 V |
