M52-505 Series
Manufacturer: Harwin Inc.
Beta
⌘K
20 POS. FEMALE SIL VERTICAL SMT CONN. ROHS COMPLIANT: YES
| Part | Applications | Contact Shape | Contact Material | Insulation Material | Mounting Type | Number of Positions | Fastening Type | Insulation Color | Number of Positions Loaded | Insulation Height [z] | Insulation Height [z] | Termination | Material Flammability Rating | Pitch - Mating | Pitch - Mating | Mated Stacking Heights | Number of Rows | Contact Finish - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | General Purpose Medical Telecommunications | Square | Phosphor Bronze | Nylon 6T Polyamide (PA6T) | Surface Mount | 20 | Push-Pull | Black | All | 5.69 mm | 0.224 in | Solder | UL94 V-0 | 1.27 mm | 0.05 in | 8.5 mm 9.77 mm | 1 | Gold | -40 C | 105 ░C | Receptacle | Female Socket |
Harwin Inc. | General Purpose Medical Telecommunications | Square | Phosphor Bronze | Nylon 6T Polyamide (PA6T) | Surface Mount | 6 | Push-Pull | Black | All | 5.69 mm | 0.224 in | Solder | UL94 V-0 | 1.27 mm | 0.05 in | 8.5 mm 9.77 mm | 1 | Gold | -40 C | 105 ░C | Receptacle | Female Socket |

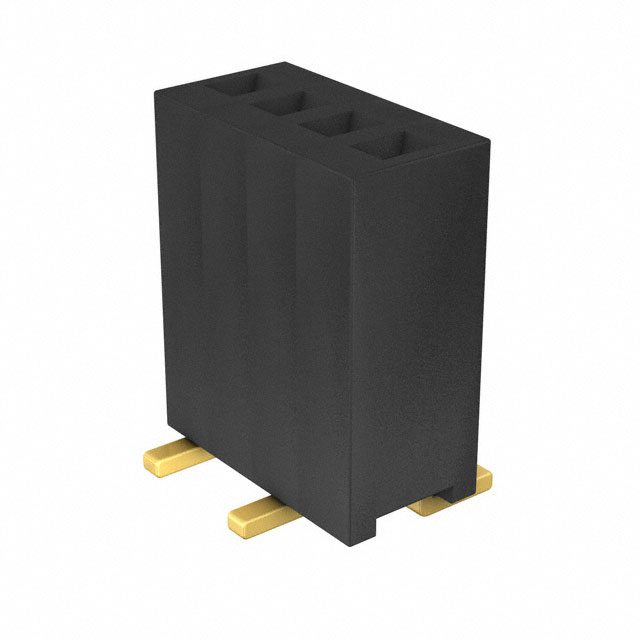

 Harwin Inc. | General Purpose Medical Telecommunications | Square | Phosphor Bronze | Nylon 6T Polyamide (PA6T) | Surface Mount | 4 | Push-Pull | Black | All | 5.69 mm | 0.224 in | Solder | UL94 V-0 | 1.27 mm | 0.05 in | 8.5 mm 9.77 mm | 1 | Gold | -40 C | 105 ░C | Receptacle | Female Socket |
