QEC1 Series

Catalog

EMITTER IR 940NM 50MA RADIAL

Part	Type	Viewing Angle	Voltage - Forward (Vf) (Typ)	Package / Case	Package / Case [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Radiant Intensity (Ie) Min @ If	Current - DC Forward (If) (Max) [Max]	Wavelength	Orientation	Mounting Type	Radiant Intensity (Ie) Min @ If [Min]

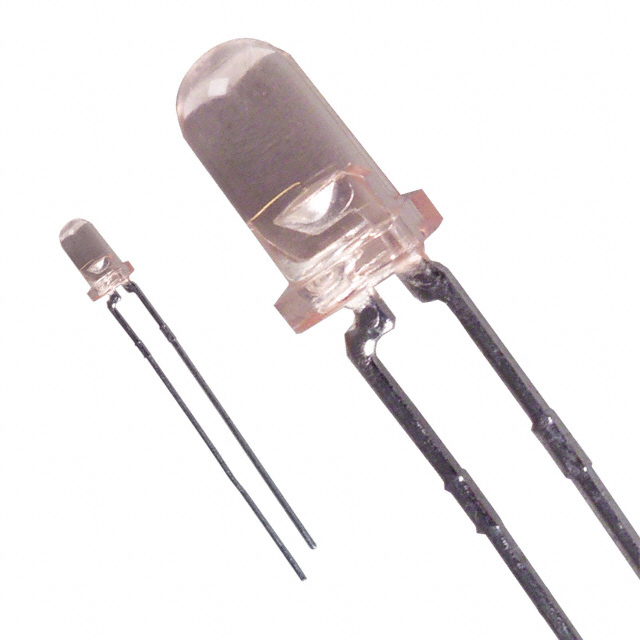

ON Semiconductor QEC113C6R0	Infrared (IR)	18 °	1.5 V	Radial	3 mm	-40 °C	100 °C	14 mW/sr	50 mA	940 nm	Top View	Through Hole

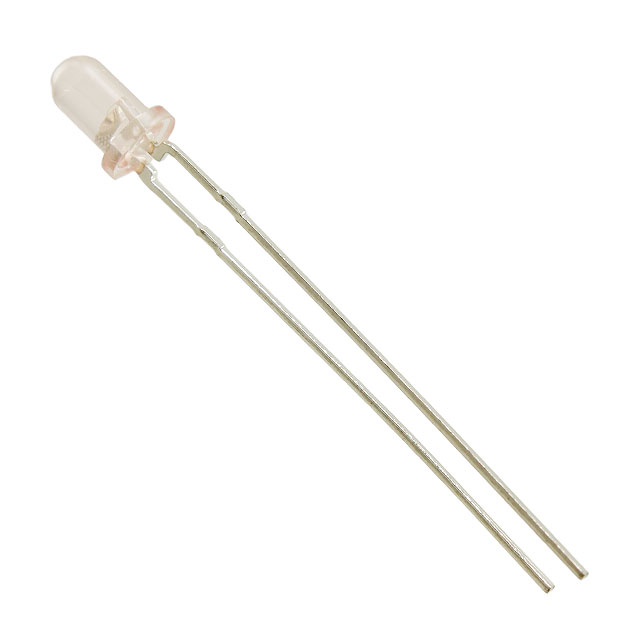

ON Semiconductor QEC112	Infrared (IR)	18 °	1.5 V	Radial	3 mm	-40 °C	100 °C	6 mW/sr	50 mA	940 nm	Top View	Through Hole
ON Semiconductor QEC113	Infrared (IR)	18 °	1.5 V	Radial	3 mm	-40 °C	100 °C	14 mW/sr	50 mA	940 nm	Top View	Through Hole

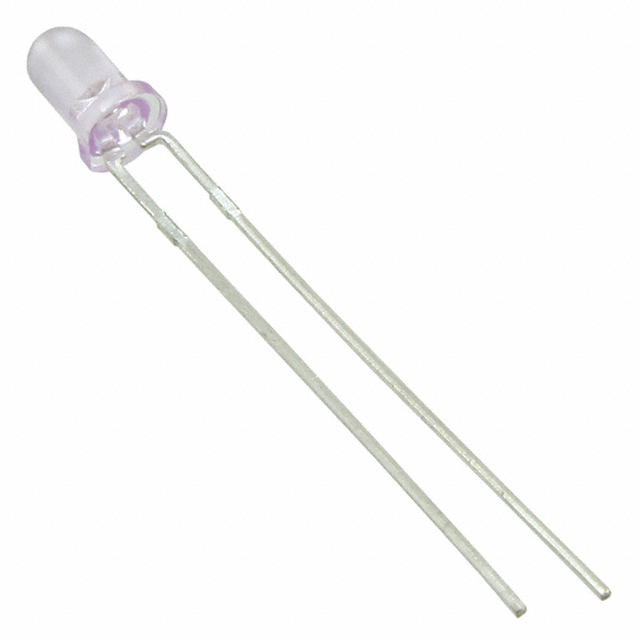

ON Semiconductor QEC122	Infrared (IR)	18 °	1.7 V	Radial	3 mm	-40 °C	100 °C		50 mA	880 nm	Top View	Through Hole	27 mW/sr
ON Semiconductor QEC121	Infrared (IR)	18 °	1.7 V	Radial	3 mm	-40 °C	100 °C	14 mW/sr	50 mA	880 nm	Top View	Through Hole
