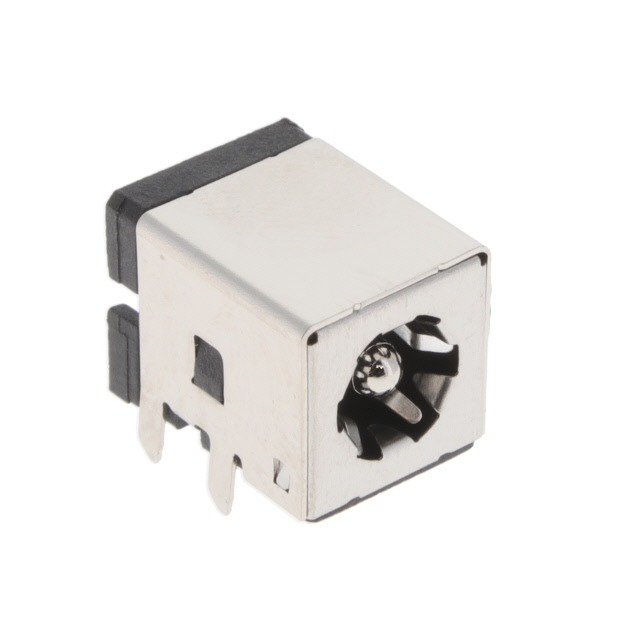

ADC-096 Series
Manufacturer: Adam Tech
Beta
⌘K
DC POWER JACK
| Part | Body Color | Contact Material - Plating | Housing Material | Contact Material | Gender | Operating Temperature [Min] | Operating Temperature [Max] | Industry Recognized Mating Diameter [custom] | Industry Recognized Mating Diameter [custom] | Industry Recognized Mating Diameter [custom] | Industry Recognized Mating Diameter [custom] | Shielding | Mounting Type | Actual Diameter [custom] | Actual Diameter [custom] | Actual Diameter [custom] | Actual Diameter [custom] | Material Flammability Rating | Internal Switch(s) | Connector Type | Termination | Voltage - Rated | Insulation Color | Number of Positions/Contacts [custom] | Number of Positions/Contacts [custom] | Current Rating (Amps) | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | Black | Silver | Thermoplastic | Copper Alloy | Male | -20 ░C | 70 °C | 0.217 in | 2.5 mm | 5.5 mm | 0.098 in | Shielded | Right Angle Through Hole | 5.3 mm | 0.209 in | 2.5 mm | 0.098 in | UL94 V-0 | Jack | Solder | 20 V | Black | 2 | 2 | 4 A | Board Guide |
