PPTC291 Series

Catalog

CONN HDR 29POS 0.1 TIN PCB

Part	Contact Material	Contact Shape	Insulation Material	Current Rating (Amps)	Contact Length - Post [x]	Contact Length - Post [x]	Fastening Type	Number of Positions	Pitch - Mating	Pitch - Mating	Connector Type	Number of Rows	Insulation Height	Insulation Height	Mounting Type	Insulation Color	Voltage Rating	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Number of Positions Loaded	Contact Type	Contact Finish - Post	Contact Length - Post	Contact Length - Post
Sullins Connector Solutions PPTC291LFBN-RC	Phosphor Bronze	Square	Polyester	3 A	0.126 "	3.2 mm	Push-Pull	29	0.1 "	2.54 mm	Header	1	0.335 "	8.51 mm	Through Hole	Black	250 V	Solder	-40 C	105 ░C	UL94 V-0	All	Female Socket	Tin

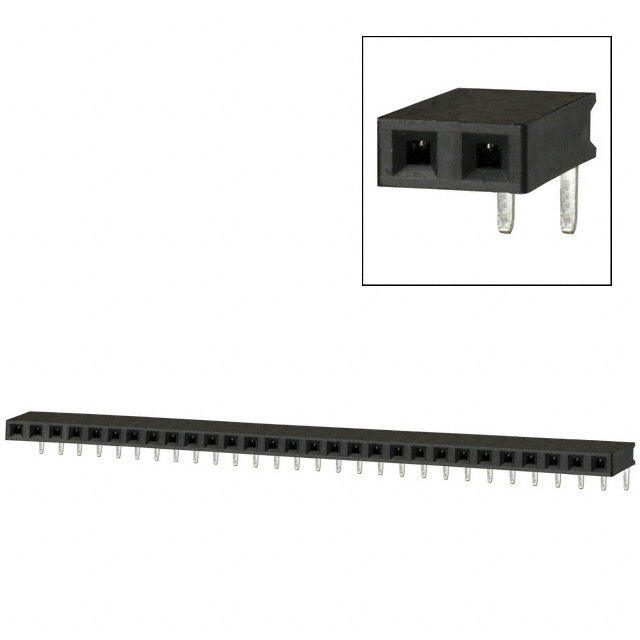

Sullins Connector Solutions PPTC291LGBN-RC	Phosphor Bronze	Square	Polyester	3 A			Push-Pull	29	0.1 "	2.54 mm	Header	1	0.1 in	2.54 mm	Right Angle Through Hole	Black	250 V	Solder	-40 C	105 ░C	UL94 V-0	All	Female Socket	Tin	0.124 in	3.15 mm
Sullins Connector Solutions PPTC291LGBN	Phosphor Bronze	Square	Polyester	3 A			Push-Pull	29	0.1 "	2.54 mm	Header	1	0.1 in	2.54 mm	Right Angle Through Hole	Black	250 V	Solder	-40 C	105 ░C	UL94 V-0	All	Female Socket	Tin	0.124 in	3.15 mm

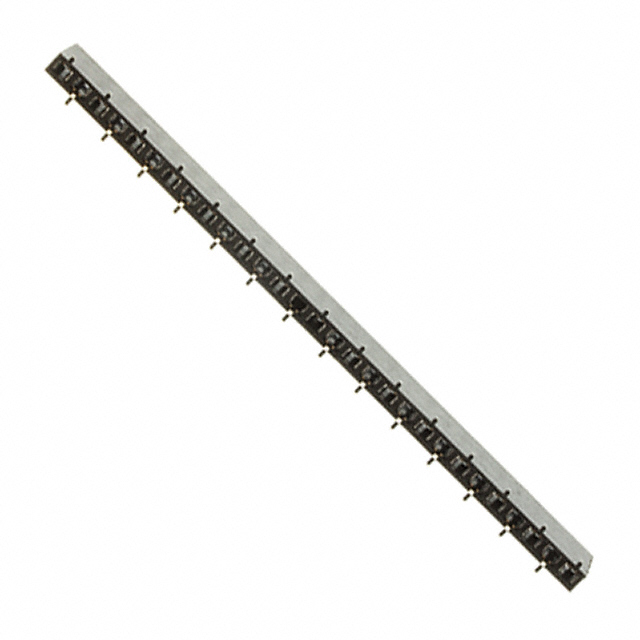

Sullins Connector Solutions PPTC291KFXC	Phosphor Bronze	Square	Polyester	3 A			Push-Pull	29	0.1 "	2.54 mm	Header Top or Bottom Entry	1	0.28 in	7.1 mm	Surface Mount	Black	250 V	Solder	-40 C	105 ░C	UL94 V-0	All	Female Socket	Tin
