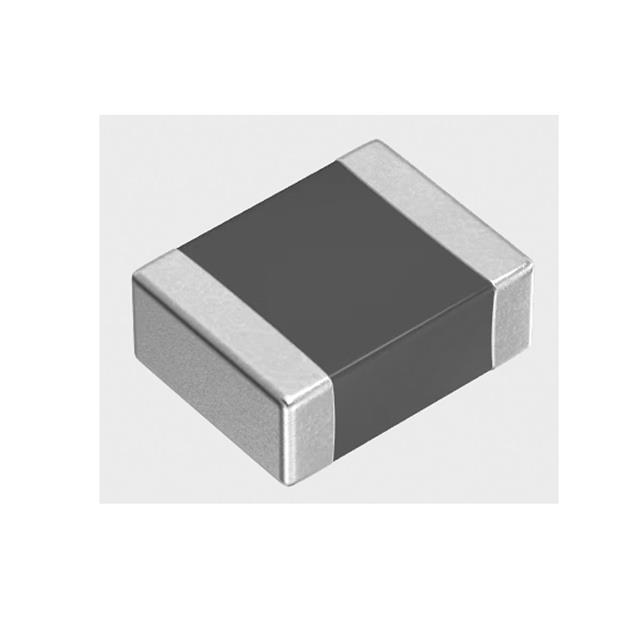

TMS322512ALM Series

Catalog

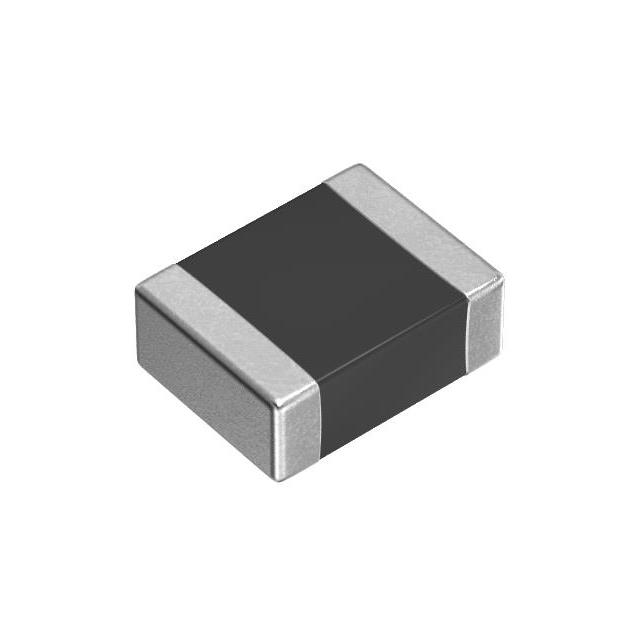

FIXED IND 6.8UH 1.4A 0.26OHM SMD

Part	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Tolerance	DC Resistance (DCR)	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Current - Saturation (Isat)	Mounting Type	Package / Case	Package / Case	Inductance Frequency - Test	Features	Type	Current Rating (Amps)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Material - Core	Inductance	Shielding	DC Resistance (DCR) [Max]
TDK Corporation TMS322512ALM-6R8MTAA	2.5 mm	0.098 in	3.2 mm	0.126 "	20 %	260 mOhm	1210	125 °C	-40 C	1.8 A	Surface Mount	1210	3225 Metric	1 MHz	Soft Termination	Thin Film	1.4 A	1.2 mm	0.047 "	Metal	6.8 µH	Shielded
TDK Corporation TMS322512ALM-100MTAA	2.5 mm	0.098 in	3.2 mm	0.126 "	20 %		1210	125 °C	-40 C	1.6 A	Surface Mount	1210	3225 Metric	1 MHz	Soft Termination	Thin Film	1.2 A	1.2 mm	0.047 "	Metal	10 µH	Shielded	360 mOhm
TDK Corporation TMS322512ALM-R33MTAA	2.5 mm	0.098 in	3.2 mm	0.126 "	20 %		1210	125 °C	-40 C	8.6 A	Surface Mount	1210	3225 Metric	1 MHz	Soft Termination	Thin Film	6 A	1.2 mm	0.047 "	Metal	330 nH	Shielded	15 mOhm
TDK Corporation TMS322512ALM-R15MTAA	2.5 mm	0.098 in	3.2 mm	0.126 "	20 %		1210	125 °C	-40 C		Surface Mount	1210	3225 Metric	1 MHz	Soft Termination	Thin Film	8 A	1.2 mm	0.047 "	Metal	150 nH	Shielded	9 mOhm
TDK Corporation TMS322512ALM-R10MTAA	2.5 mm	0.098 in	3.2 mm	0.126 "	20 %		1210	125 °C	-40 C	14 A	Surface Mount	1210	3225 Metric	1 MHz	Soft Termination	Thin Film	8 A	1.2 mm	0.047 "	Metal	100 nH	Shielded	8 mOhm
TDK Corporation TMS322512ALM-1R0MTAA	2.5 mm	0.098 in	3.2 mm	0.126 "	20 %		1210	125 °C	-40 C	4.6 A	Surface Mount	1210	3225 Metric	1 MHz	Soft Termination	Thin Film	4 A	1.2 mm	0.047 "	Metal	1 µH	Shielded	37 mOhm
TDK Corporation TMS322512ALM-2R2MTAA	2.5 mm	0.098 in	3.2 mm	0.126 "	20 %		1210	125 °C	-40 C	3.3 A	Surface Mount	1210	3225 Metric	1 MHz	Soft Termination	Thin Film	2.7 A	1.2 mm	0.047 "	Metal	2.2 µH	Shielded	77 mOhm
TDK Corporation TMS322512ALM-R68MTAA	2.5 mm	0.098 in	3.2 mm	0.126 "	20 %		1210	125 °C	-40 C	5.5 A	Surface Mount	1210	3225 Metric	1 MHz	Soft Termination	Thin Film	4.4 A	1.2 mm	0.047 "	Metal	0.68 µH	Shielded	30 mOhm
TDK Corporation TMS322512ALM-R22MTAA	2.5 mm	0.098 in	3.2 mm	0.126 "	20 %		1210	125 °C	-40 C	10 A	Surface Mount	1210	3225 Metric	1 MHz	Soft Termination	Thin Film	7 A	1.2 mm	0.047 "	Metal	220 nH	Shielded	11 mOhm
TDK Corporation TMS322512ALM-4R7MTAA	2.5 mm	0.098 in	3.2 mm	0.126 "	20 %		1210	125 °C	-40 C	2.2 A	Surface Mount	1210	3225 Metric	1 MHz	Soft Termination	Thin Film	1.9 A	1.2 mm	0.047 "	Metal	4.7 ÁH	Shielded	151 mOhm
