U5354 Series

Catalog

SENSOR

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Features	Port Style	Port Size	Port Size	Port Size	Output Type	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Applications	Pressure Type	Operating Pressure	Operating Pressure	Maximum Pressure	Maximum Pressure	Output [Min]	Output [Max]	Accuracy
TE Connectivity AMP Connectors U5354-000002-001BG	9 V	30 VDC	Temperature Compensated	Threaded	BSPP Male	0.25 in	0.25 "	Analog Current	Connector	125 °C	-40 C	Cylinder	Industrial Automation	Vented Gauge	1 bar	14.5 PSI	43.51 PSI	300 kPa	4 mA	20 mA	0.1 %

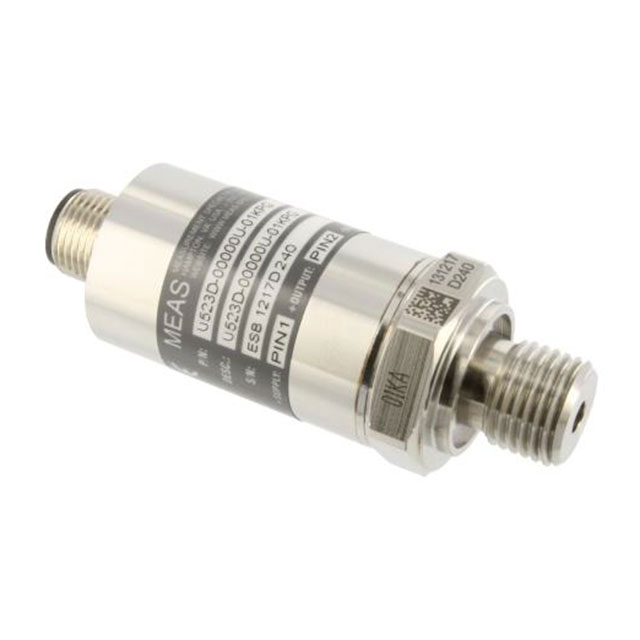

TE Connectivity AMP Connectors U5354-000005-015PG	9 V	30 VDC	Temperature Compensated	Threaded	Male NPT	0.25 in	0.25 "	Analog Current	Connector	125 °C	-40 C	Cylinder	Industrial Automation	Vented Gauge	103.42 kPa	15 PSI	15 PSI	103.42 kPa	4 mA	20 mA	0.1 %
