CUS600M Series

Catalog

AC/DC ENCLOSED POWER SUPPLY (PSU), ITE & MEDICAL, 1 OUTPUTS, 400.8 W, 12 V, 33.4 A

Part	Voltage - Isolation	Current - Output 1	Features	Type	Mounting Type	Applications	Voltage - Input [Max]	Voltage - Input [Min]	Power (Watts)	Power (Watts)	Approval Agency	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Voltage - Output 1	Standard Number	Voltage - Output 2	Current - Output 2	Voltage - Output 4	Current - Output 5	Current - Output 3	Current - Output 6	Voltage - Output 5	Voltage - Output 3	Voltage - Output 6
TDK Corporation CUS600M-12/EF	4000 V	33.4 A	Adjustable Output Remote On/Off Remote Sense Standby Output Universal Input	Enclosed	Chassis Mount	ITE (Commercial) Medical	265 VAC	85 VAC	401 W	600 W	CE	3.35 in	85 mm	157 mm	6.18 in	1.67 in	42.5 mm	96 %	70 °C	-20 °C	1	12 V	60601-1 60950-1 62368-1
TDK Corporation CUS600M-48	4000 V	8.4 A	Remote On/Off Remote Sense Standby Output Universal Input	Open Frame	Chassis Mount	ITE (Commercial) Medical	265 VAC	85 VAC	403 W	605 W	CE	3 "	76.2 mm	127 mm	5 "	1.34 "	34 mm	96 %	70 °C	-20 °C	1	48 V	60601-1 60950-1 62368-1
TDK Corporation CUS600M-24/ADJ	4000 V	25 A	Adjustable Output Remote On/Off Remote Sense Standby Output	Open Frame	Chassis Mount	ITE (Commercial) Medical	265 VAC	85 VAC	401 W	600 W	CE	3 "	76.2 mm	127 mm	5 "	1.46 in	37.1 mm	96 %	70 °C	-20 °C	6	24 V	60601-1 60950-1 62368-1	24 V	25 A	24 V	25 A	25 A	25 A	24 V	24 V	24 V
TDK Corporation CUS600M-19/EF	4000 V	21.1 A	Adjustable Output Remote On/Off Remote Sense Standby Output Universal Input	Enclosed	Chassis Mount	ITE (Commercial) Medical	265 VAC	85 VAC	401 W	600 W	CE	3.35 in	85 mm	157 mm	6.18 in	1.67 in	42.5 mm	96 %	70 °C	-20 °C	1	19 V	60601-1 60950-1 62368-1
TDK Corporation CUS600M-48/EF	4000 V	8.4 A	Adjustable Output Remote On/Off Remote Sense Standby Output Universal Input	Enclosed	Chassis Mount	ITE (Commercial) Medical	265 VAC	85 VAC	403 W	605 W	CE	3.35 in	85 mm	157 mm	6.18 in	1.67 in	42.5 mm	96 %	70 °C	-20 °C	1	48 V	60601-1 60950-1 62368-1
TDK Corporation CUS600M-24/EF	4000 V	16.7 A	Adjustable Output Remote On/Off Remote Sense Standby Output Universal Input	Enclosed	Chassis Mount	ITE (Commercial) Medical	265 VAC	85 VAC	401 W	600 W	CE	3.35 in	85 mm	157 mm	6.18 in	1.67 in	42.5 mm	96 %	70 °C	-20 °C	1	24 V	60601-1 60950-1 62368-1
TDK Corporation CUS600M-32/EF	4000 V	12.5 A	Adjustable Output Remote On/Off Remote Sense Standby Output Universal Input	Enclosed	Chassis Mount	ITE (Commercial) Medical	265 VAC	85 VAC	400 W	602 W	CE	3.35 in	85 mm	157 mm	6.18 in	1.67 in	42.5 mm	96 %	70 °C	-20 °C	1	32 V	60601-1 60950-1 62368-1

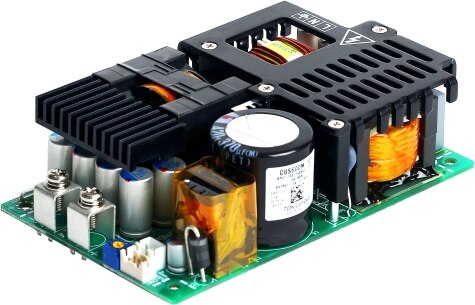

TDK Corporation CUS600M-12	4000 V	33.4 A	Remote On/Off Remote Sense Standby Output Universal Input	Open Frame	Chassis Mount	ITE (Commercial) Medical	265 VAC	85 VAC	401 W	600 W	CE	3 "	76.2 mm	127 mm	5 "	1.34 "	34 mm	96 %	70 °C	-20 °C	1	12 V	60601-1 60950-1 62368-1
TDK Corporation CUS600M-32	4000 V	12.5 A	Remote On/Off Remote Sense Standby Output Universal Input	Open Frame	Chassis Mount	ITE (Commercial) Medical	265 VAC	85 VAC	400 W	602 W	CE	3 "	76.2 mm	127 mm	5 "	1.34 "	34 mm	96 %	70 °C	-20 °C	1	32 V	60601-1 60950-1 62368-1
TDK Corporation CUS600M-28/EF	4000 V	14.3 A	Adjustable Output Remote On/Off Remote Sense Standby Output Universal Input	Enclosed	Chassis Mount	ITE (Commercial) Medical	265 VAC	85 VAC	400 W	602 W	CE	3.35 in	85 mm	157 mm	6.18 in	1.67 in	42.5 mm	96 %	70 °C	-20 °C	1	28 V	60601-1 60950-1 62368-1
