AFB0812 Series

Catalog

FAN AXIAL 80X25.4MM 12VDC WIRE

Part	Material - Blade	Lifetime @ Temp.	Material - Frame	Current Rating (Amps)	Voltage Range [Max]	Voltage Range [Min]	Air Flow	Air Flow	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [z]	Size / Dimension [x]	Termination	Static Pressure	Static Pressure	Features	Fan Type	RPM	Voltage - Rated	Approval Agency	Noise	Weight	Weight	Width [y]	Bearing Type

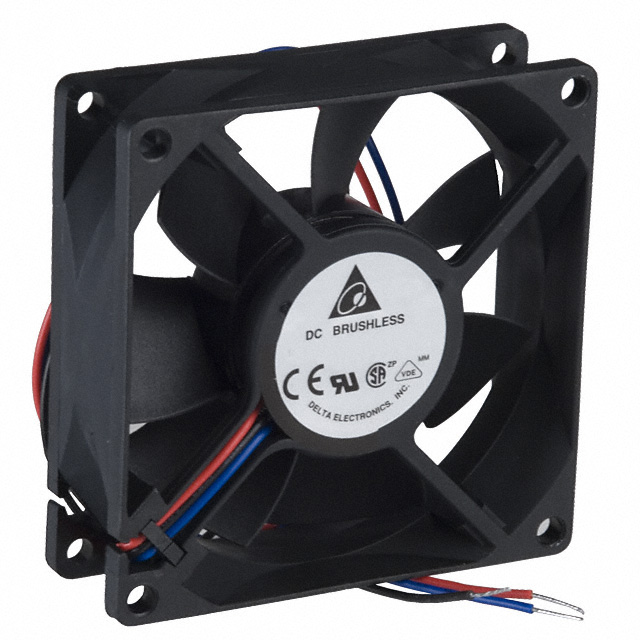

Delta Electronics AFB0812M-F00	Plastic	70000 Hrs	Plastic	120 mA	13.8 VDC	7 V	0.879 m³/min	31.4 CFM	1.44 W	70 °C	-10 °C	80 mm	80 mm	3 Wire Leads	0.129 in H2O	32.1 Pa	Locked Rotor Protection Speed Sensor (Tach)	Tubeaxial	2700 RPM	12 VDC	CE CSA UL VDE	28 dB	0.176 lb	80 g	25.4 mm	Ball
Delta Electronics AFB0812SH-R00	Plastic	70000 Hrs	Plastic	0.34 A	13 V	7 V	1.3 m³/min	46.6 CFM		70 °C	-10 °C	80 mm	80 mm	3 Wire Leads	0.267 in H2O	66.5 Pa	Locked Rotor Sensor	Tubeaxial	4000 RPM	12 VDC	CE CSA UL VDE	40 dB(A)	0.176 lb	80 g	25.4 mm	Ball
Delta Electronics AFB0812VHB-R00	Plastic	70000 Hrs	Plastic	190 mA	13.8 VDC	7 V	1.1 m³/min	39.2 CFM	2.28 W	70 °C	-10 °C	80 mm	80 mm	3 Wire Leads	0.188 in H2O	46.8 Pa	Locked Rotor Sensor	Tubeaxial	3700 RPM	12 VDC	CE CSA UL VDE	39.5 dB	0.128 lb	58.06 g	15 mm	Ball
Delta Electronics AFB0812SHE	Plastic	70000 Hrs	Plastic	0.68 A	13.8 VDC	6 VDC	2.04 m³/min	72.8 CFM	8.16 W	70 °C	-10 °C	80 mm	80 mm	2 Wire Leads	0.547 in H2O	136.3 Pa		Tubeaxial	5000 RPM	12 VDC	CE CSA UL VDE	46 dB(A)	0.344 lb	156.04 g	38 mm	Ball

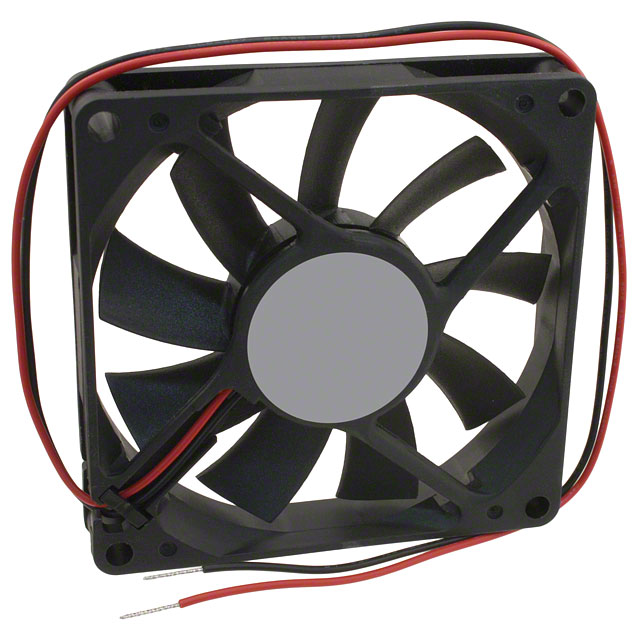

Delta Electronics AFB0812HHB	Plastic	70000 Hrs	Plastic		13.8 VDC	7 V	1 m³/min	35.7 CFM	1.92 W	70 °C	-10 °C	80 mm	80 mm	2 Wire Leads	0.159 in H2O	39.6 Pa		Tubeaxial	3400 RPM	12 VDC	CE CSA UL VDE	37 dB	0.128 lb	58.06 g	15 mm	Ball

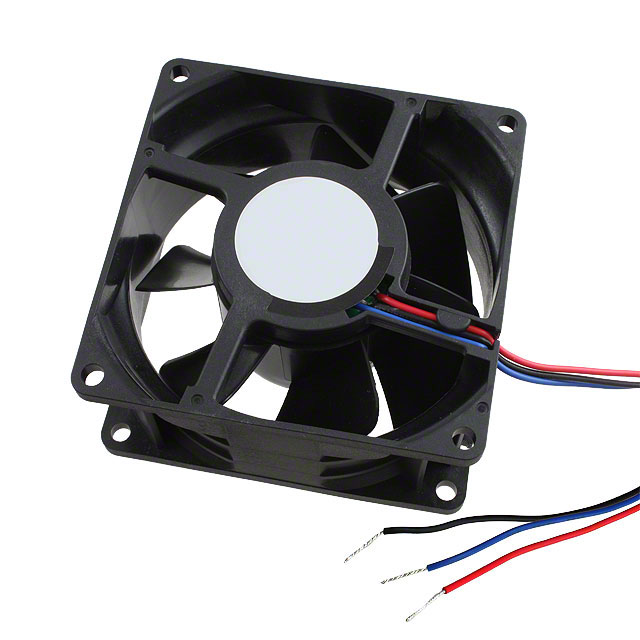

Delta Electronics AFB0812GHE-F00	Plastic	70000 Hrs	Plastic	1.4 A	13.8 VDC	6 VDC	2.77 m³/min	99 CFM	16.8 W	70 °C	-10 °C	80 mm	80 mm	3 Wire Leads	1.006 in H2O	250.6 Pa	Locked Rotor Protection Speed Sensor (Tach)	Tubeaxial	6800 RPM	12 VDC	CE CSA UL VDE	54 dB	0.344 lb	156.04 g	38 mm	Ball
Delta Electronics AFB0812M	Plastic	70000 Hrs	Plastic	120 mA	13.8 VDC	7 V	0.879 m³/min	31.4 CFM	1.44 W	70 °C	-10 °C	80 mm	80 mm	2 Wire Leads	0.129 in H2O	32.1 Pa		Tubeaxial	2700 RPM	12 VDC	CE CSA UL VDE	28 dB	0.176 lb	80 g	25.4 mm	Ball

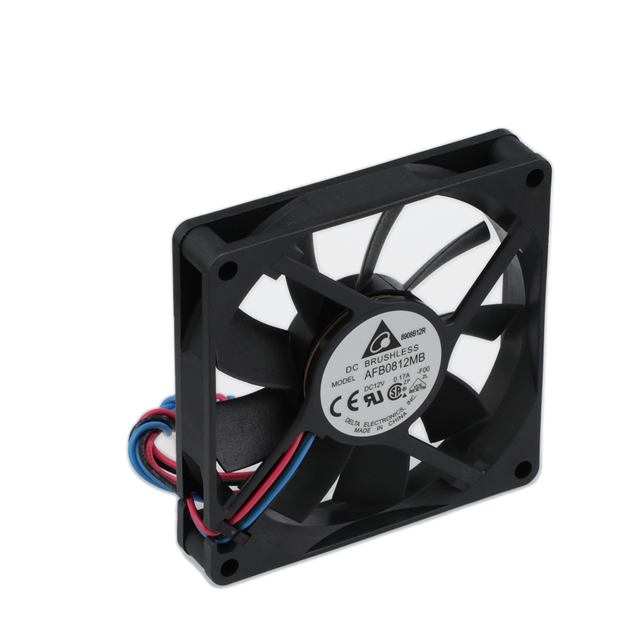

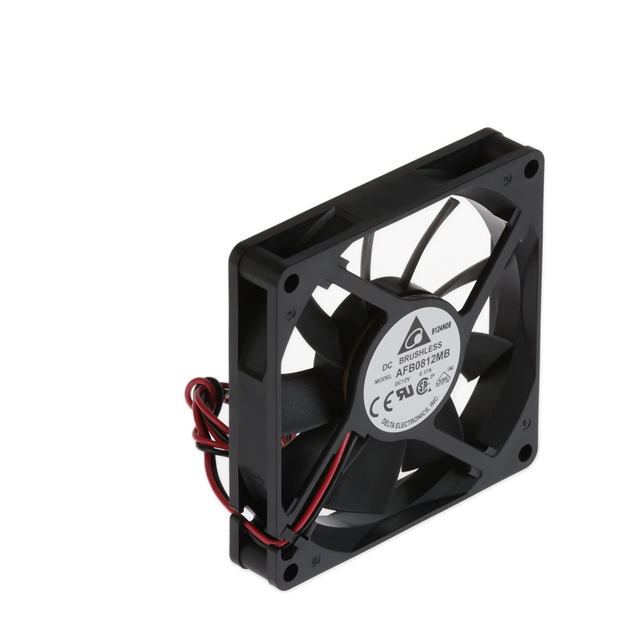

Delta Electronics AFB0812MB	Plastic	70000 Hrs	Plastic	110 mA	13.8 VDC	7 V	0.792 m³/min	28.3 CFM	1.32 W	70 °C	-10 °C	80 mm	80 mm	2 Wire Leads	0.107 in H2O	26.6 Pa		Tubeaxial	2700 RPM	12 VDC	CE CSA UL VDE	30.5 dB	0.128 lb	58.06 g	15 mm	Ball
Delta Electronics AFB0812SH	Plastic	70000 Hrs	Plastic	0.34 A	13 V	7 V	1.3 m³/min	46.6 CFM		70 °C	-10 °C	80 mm	80 mm	2 Wire Leads	0.267 in H2O	66.5 Pa		Tubeaxial	4000 RPM	12 VDC	CE CSA UL VDE	40 dB(A)	0.176 lb	80 g	25.4 mm	Ball

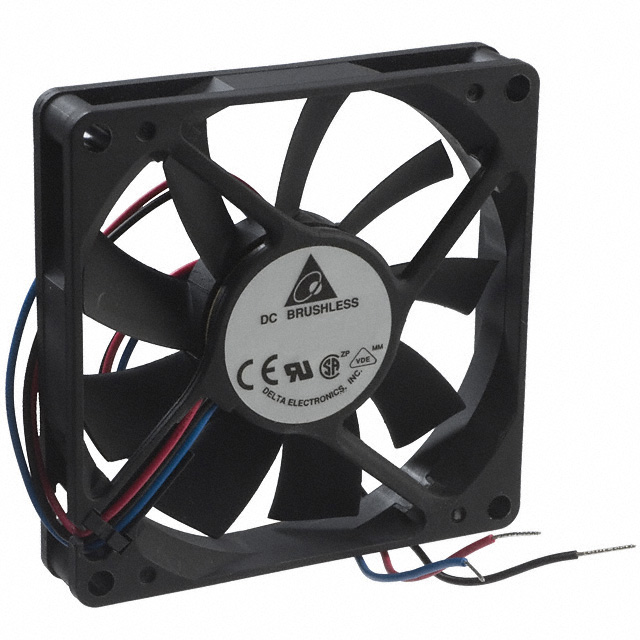

Delta Electronics AFB0812VHB-F00	Plastic	70000 Hrs	Plastic	190 mA	13.8 VDC	7 V	1.1 m³/min	39.2 CFM	2.28 W	70 °C	-10 °C	80 mm	80 mm	3 Wire Leads	0.188 in H2O	46.8 Pa	Locked Rotor Protection Speed Sensor (Tach)	Tubeaxial	3700 RPM	12 VDC	CE CSA UL VDE	39.5 dB	0.128 lb	58.06 g	15 mm	Ball
