960106 Series

Catalog

CONN RCPT 6POS 0.1 GOLD PCB

Part	Contact Material	Contact Shape	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Material	Contact Finish - Post	Fastening Type	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Number of Positions	Contact Length - Post	Contact Length - Post	Material Flammability Rating	Contact Finish - Mating	Termination	Contact Finish Thickness - Mating	Connector Type	Insulation Height	Insulation Height	Number of Positions Loaded	Mounting Type	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Color	Number of Rows	Contact Type

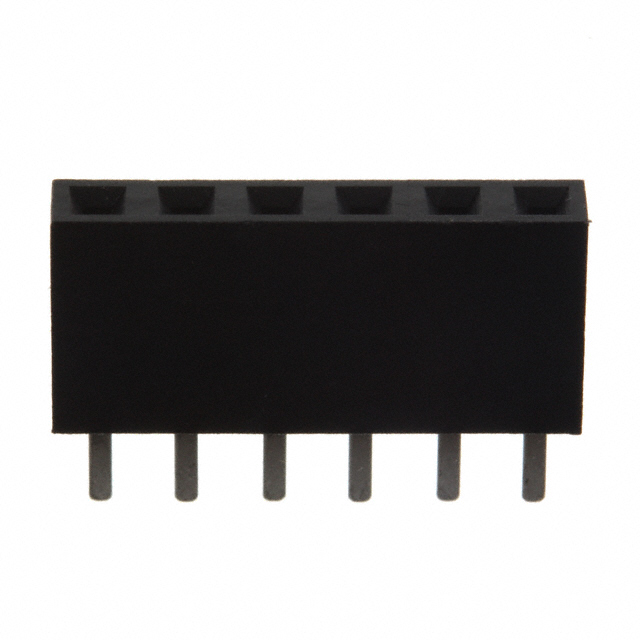

3M Electronic Specialty 960106-6202-AR	Copper Alloy	Square	40 Áin	1.02 Ám	Thermoplastic	Tin	Push-Pull	0.1 "	2.54 mm	2 A	6	0.118 in	3 mm	UL94 V-0	Gold	Solder	Flash	Receptacle	0.28 in	7.1 mm	All	Through Hole	1000 VDC	105 ░C	-25 °C	Black	1	Female Socket
