ADP-SMAM Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

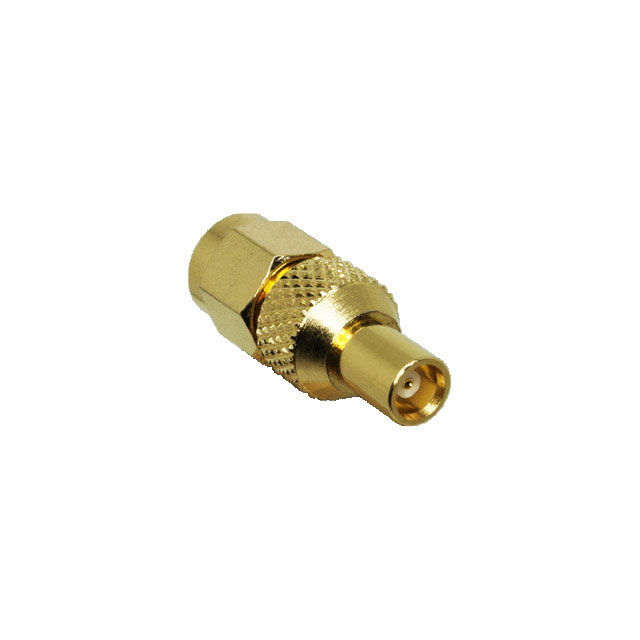

SMA PLUG TO MCX JACK ADAPTER
| Part | Body Finish | Mating Cycles | Center Contact Material | Dielectric Material | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Plating | Adapter Series | Adapter Type | Frequency - Max [Max] | Convert To (Adapter End) | Mounting Type | Impedance | Style | Convert From (Adapter End) | Center Gender | Conversion Type | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Gold | 500 | Beryllium Copper | Polytetrafluoroethylene (PTFE) | Brass | -65 ░C | 165 °C | Gold | SMA to MCX | Plug to Jack | 6000 MHz | Female Socket MCX Jack | Free Hanging (In-Line) | 50 Ohms | Straight | Male Pin SMA Plug | Male to Female | Between Series | Snap-On Threaded |
 TE Connectivity AMP Connectors | Gold | 500 | Beryllium Copper | Polytetrafluoroethylene (PTFE) | Brass | -55 C | 125 °C | Gold | SMA to MMCX | Plug to Jack | 6000 MHz | MMCX Jack Female Socket | Free Hanging (In-Line) | 50 Ohms | Straight | Male Pin SMA Plug | Male to Female | Between Series | Snap-On Threaded |

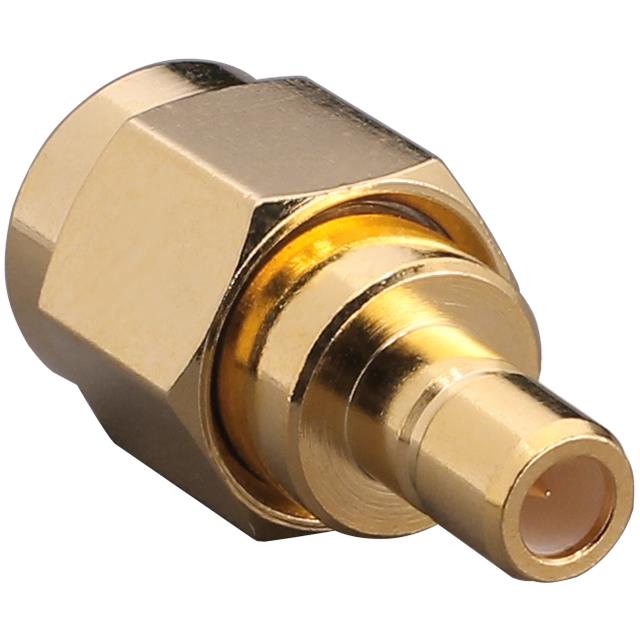

 TE Connectivity AMP Connectors | Gold | 500 | Brass | Polytetrafluoroethylene (PTFE) | Brass | -65 ░C | 165 °C | Gold | SMA to SMB | Plug to Jack | 4 GHz | SMB Jack Male Pin | Free Hanging (In-Line) | 50 Ohms | Straight | Male Pin SMA Plug | Between Series | Snap-On Threaded | |

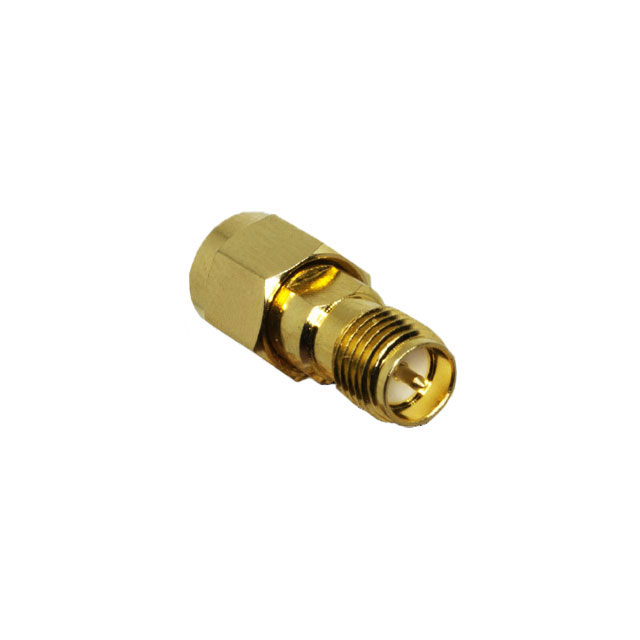

 TE Connectivity AMP Connectors | Gold | 500 | Brass | Polytetrafluoroethylene (PTFE) | Brass | -65 ░C | 165 °C | Gold | SMA to RP-SMA | Plug to Jack | 18 GHz | RP-SMA Jack Male Pin | Free Hanging (In-Line) | 50 Ohms | Straight | Male Pin SMA Plug | Male to Female | Same Series | |

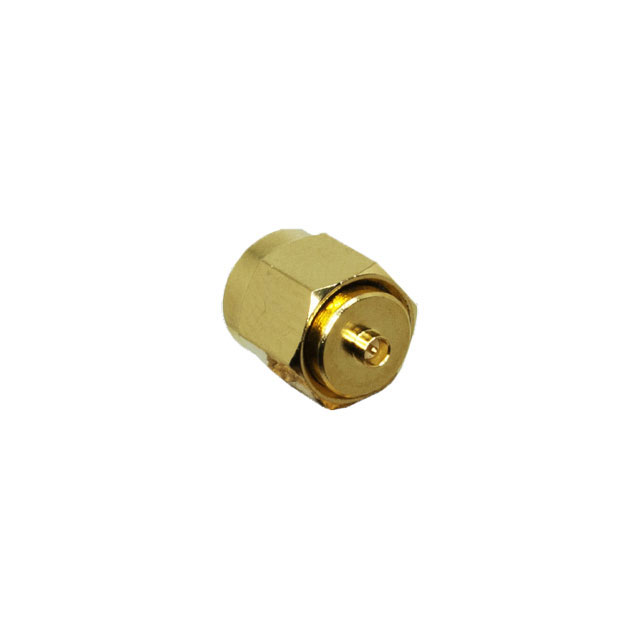

 TE Connectivity AMP Connectors | Gold | 500 | Brass | Polytetrafluoroethylene (PTFE) | Brass | -55 C | 125 °C | Gold | SMA to U.FL (UMCC) | Plug to Jack | 6000 MHz | U.FL Jack Male Pin | Free Hanging (In-Line) | 50 Ohms | Straight | Male Pin SMA Plug | Male to Male | Between Series | Snap-On Threaded |

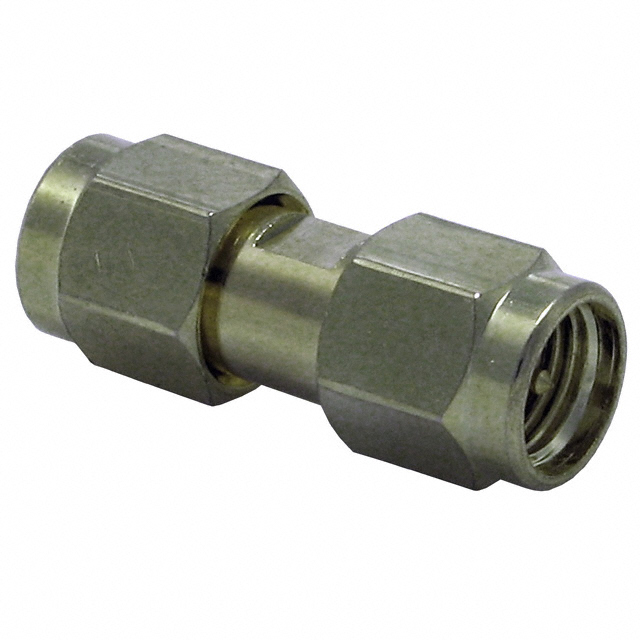

 TE Connectivity AMP Connectors | Nickel | 500 | Brass | Polytetrafluoroethylene (PTFE) | Brass | -65 ░C | 165 °C | Gold | SMA to SMA | Plug to Plug | 12.4 GHz | SMA Plug Male Pin | Free Hanging (In-Line) | 50 Ohms | Straight | Male Pin SMA Plug | Male to Male | Same Series | |

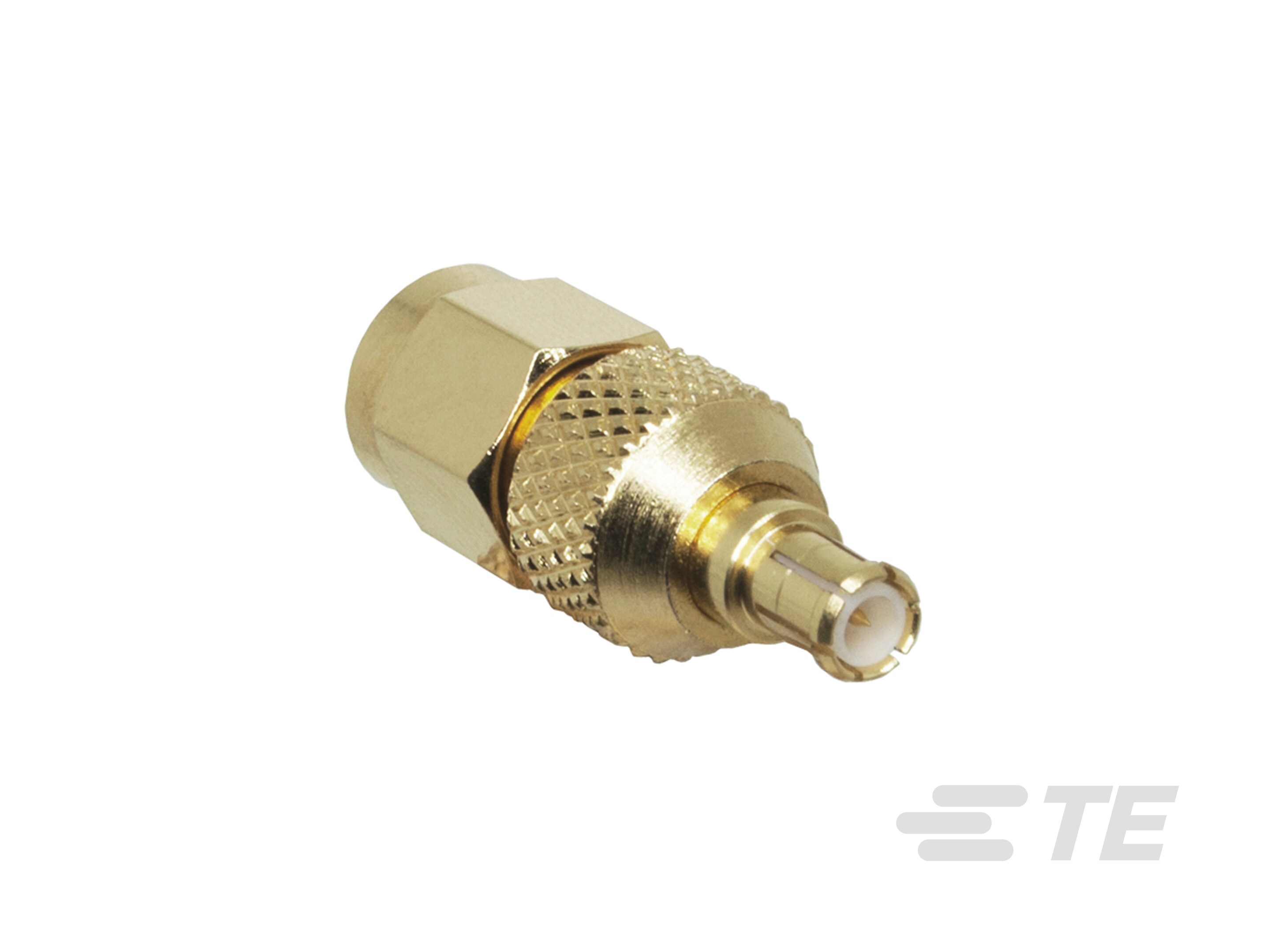

 TE Connectivity AMP Connectors | Gold | 500 | Brass | Polytetrafluoroethylene (PTFE) | Brass | -65 ░C | 165 °C | Gold | SMA to MCX | Plug to Plug | 6000 MHz | MCX Plug Male Pin | Free Hanging (In-Line) | 50 Ohms | Straight | Male Pin SMA Plug | Male to Male | Between Series | Snap-On Threaded |

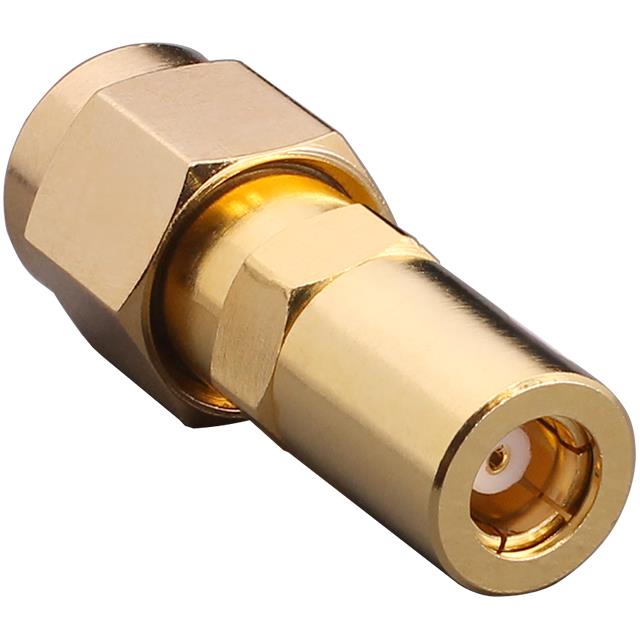

 TE Connectivity AMP Connectors | Gold | 500 | Beryllium Copper | Polytetrafluoroethylene (PTFE) | Brass | -65 ░C | 165 °C | Gold | SMA to SMB | Plug to Plug | 4 GHz | Female Socket SMB Plug | Free Hanging (In-Line) | 50 Ohms | Straight | Male Pin SMA Plug | Between Series | Snap-On Threaded | |

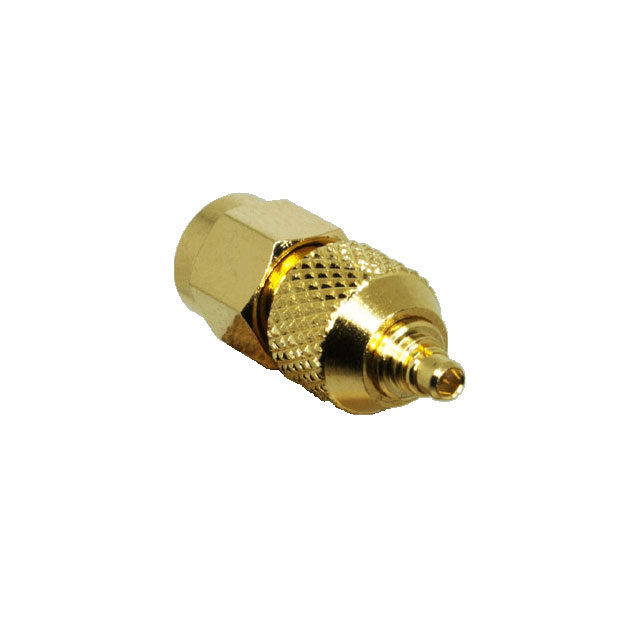

 TE Connectivity AMP Connectors | Gold | 500 | Brass | Polytetrafluoroethylene (PTFE) | Brass | -55 C | 125 °C | Gold | SMA to MMCX | Plug to Plug | 6000 MHz | MMCX Plug Male Pin | Free Hanging (In-Line) | 50 Ohms | Straight | Male Pin SMA Plug | Male to Male | Between Series | Snap-On Threaded |

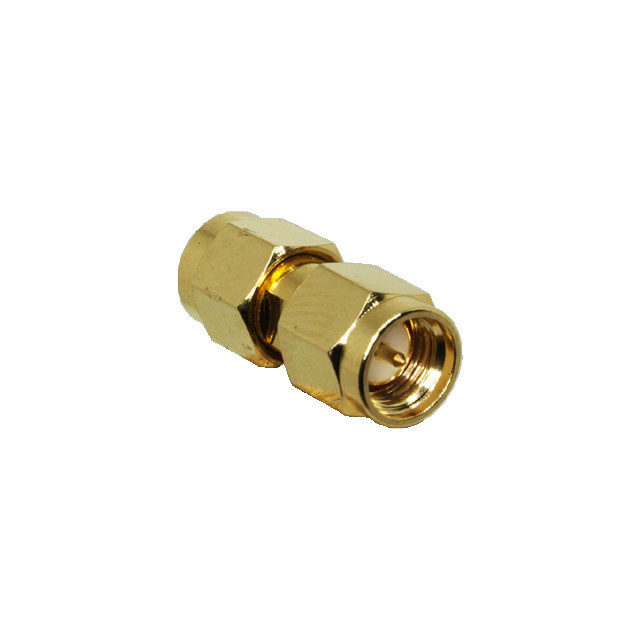

 TE Connectivity AMP Connectors | Gold | 500 | Brass | Polytetrafluoroethylene (PTFE) | Brass | -65 ░C | 165 °C | Gold | SMA to SMA | Plug to Plug | 18 GHz | SMA Plug Male Pin | Free Hanging (In-Line) | 50 Ohms | Straight | Male Pin SMA Plug | Male to Male | Same Series |
