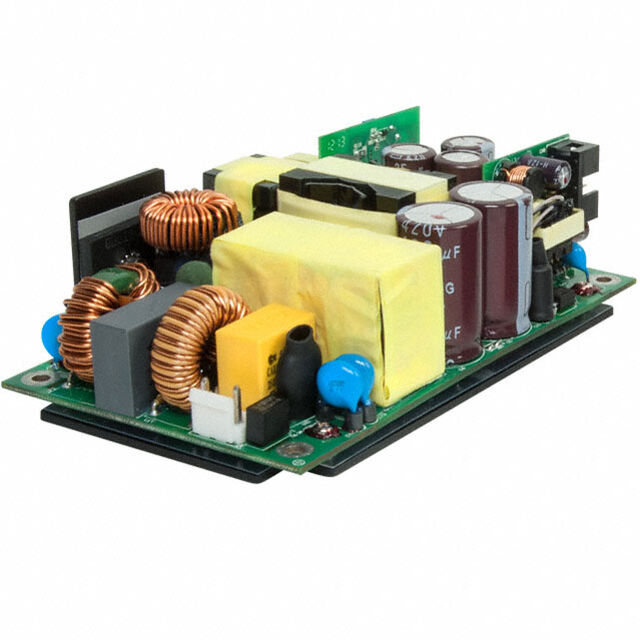

VBM-360 Series
Manufacturer: CUI Inc.
Beta
⌘K
AC/DC CONVERTER 12V 360W
| Part | Power (Watts) | Voltage - Output 1 | Standard Number | Voltage - Isolation | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input [Max] | Voltage - Input [Min] | Applications | Efficiency | Current - Output 1 | Number of Outputs | Size / Dimension | Size / Dimension | Mounting Type | Type | Approval Agency | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CUI Inc. | 360 W | 12 V | 55024 55032 Class B 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3 61204-3 | 3000 V | 85 °C | -20 °C | 264 VAC | 90 VAC | ITE (Commercial) | 92 % | 29.6 A | 1 | 1.6 in 3 in 5 " | 40.6 mm 76.2 mm 127 mm | Chassis Mount | Open Frame | CB Scheme EN IEC UL | Adjustable Output Baseplate PFC Remote On/Off Remote Sense Standby Output Universal Input |
CUI Inc. | 360 W | 48 V | 55024 55032 Class B 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3 61204-3 | 3000 V | 85 °C | -20 °C | 264 VAC | 90 VAC | ITE (Commercial) | 94 % | 7.4 A | 1 | 1.6 in 3 in 5 " | 40.6 mm 76.2 mm 127 mm | Chassis Mount | Enclosed | CB Scheme EN IEC UL | Adjustable Output Baseplate PFC Remote On/Off Remote Sense Standby Output Universal Input |
CUI Inc. | 360 W | 24 V | 55024 55032 Class B 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3 61204-3 | 3000 V | 85 °C | -20 °C | 264 VAC | 90 VAC | ITE (Commercial) | 94 % | 14.8 A | 1 | 1.6 in 3 in 5 " | 40.6 mm 76.2 mm 127 mm | Chassis Mount | Open Frame | CB Scheme EN IEC UL | Adjustable Output Baseplate PFC Remote On/Off Remote Sense Standby Output Universal Input |
CUI Inc. | 360 W | 48 V | 55024 55032 Class B 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3 61204-3 | 3000 V | 85 °C | -20 °C | 264 VAC | 90 VAC | ITE (Commercial) | 94 % | 7.4 A | 1 | 1.6 in 3 in 5 " | 40.6 mm 76.2 mm 127 mm | Chassis Mount | Open Frame | CB Scheme EN IEC UL | Adjustable Output Baseplate PFC Remote On/Off Remote Sense Standby Output Universal Input |
CUI Inc. | 360 W | 12 V | 55024 55032 Class B 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3 61204-3 | 3000 V | 85 °C | -20 °C | 264 VAC | 90 VAC | ITE (Commercial) | 93 % | 29.6 A | 1 | 1.6 in 3 in 5 " | 40.6 mm 76.2 mm 127 mm | Chassis Mount | Enclosed | CB Scheme EN IEC UL | Adjustable Output Baseplate PFC Remote On/Off Remote Sense Standby Output Universal Input |
