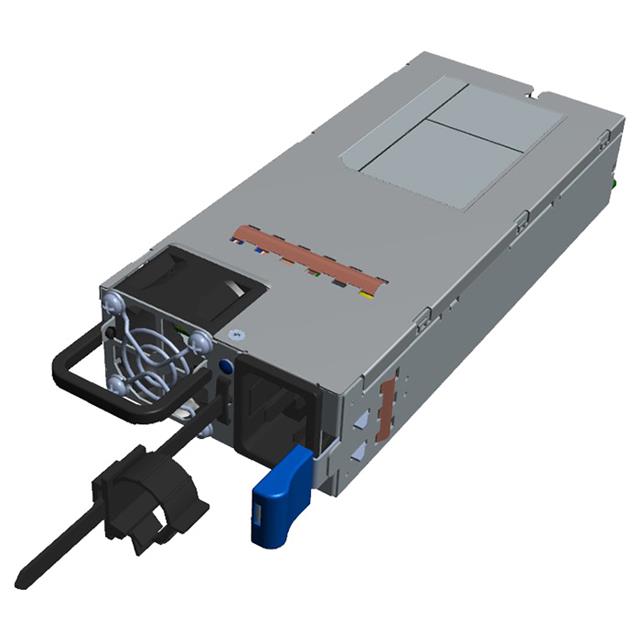

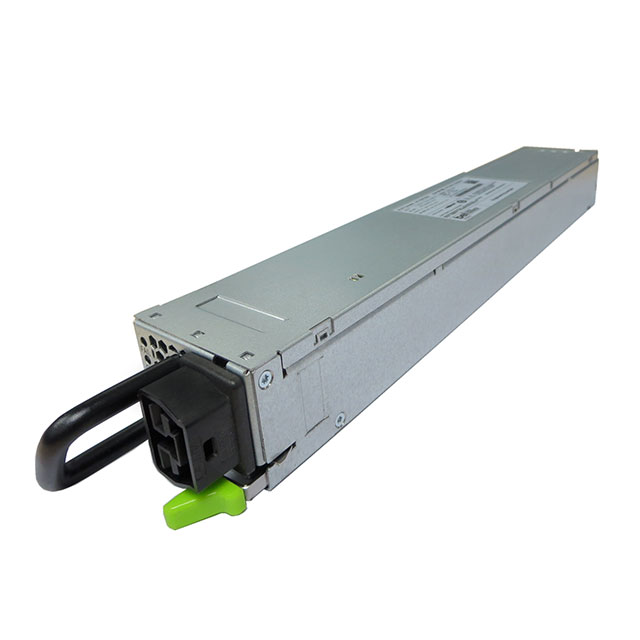

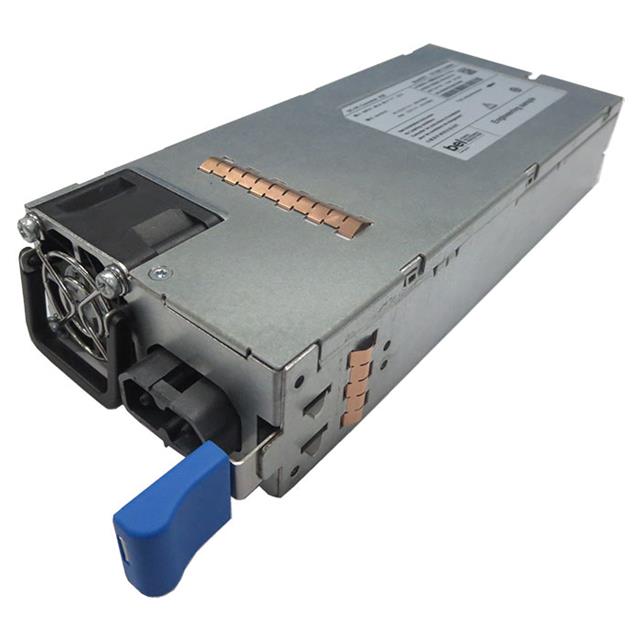

TET2200 Series
Manufacturer: Bel Fuse Inc.
Beta
⌘K
DC/DC CONVERTER 12V 2200W
| Part | Approval Agency | Efficiency | Mounting Type | Voltage - Isolation | Voltage - Input (Max) [Max] | Type | Number of Outputs | Voltage - Input (Min) [Min] | Applications | Voltage - Output 1 | Current - Output (Max) [Max] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Power (Watts) | Current - Output 1 | Features | Voltage - Input [Max] | Voltage - Input [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bel Fuse Inc. | CE | 94 % | Rack Mount | 1.5 kV | -72 V | Front End | 1 | -40 V | ITE (Commercial) | 12 V | 183 A | 3.4 in | 7.74 " | 86.3 mm | 196.5 mm | 1.57 " | 40 mm | 2200 W | ||||
 Bel Fuse Inc. | CE | 96 % | Rack Mount | 4.242 kV | Front End | 1 | ITE (Commercial) | 12 V | 3.4 in | 7.74 " | 86.3 mm | 196.5 mm | 1.57 " | 40 mm | 2196 W | 183 A | Adjustable Output Remote Sense Standby Output | 240 VAC 300 V | 100 VAC 180 VDC | |||
 Bel Fuse Inc. | CE | 96 % | Rack Mount | 4.242 kV | Front End | 1 | ITE (Commercial) | 12 V | 3.4 in | 7.74 " | 86.3 mm | 196.5 mm | 1.57 " | 40 mm | 2196 W | 183 A | Adjustable Output Remote Sense Standby Output | 240 VAC 300 V | 100 VAC 180 VDC | |||
Bel Fuse Inc. | CE | 94 % | Rack Mount | 1.5 kV | -72 V | Front End | 1 | -40 V | ITE (Commercial) | 12 V | 183 A | 3.4 in | 7.74 " | 86.3 mm | 196.5 mm | 1.57 " | 40 mm | 2200 W |
