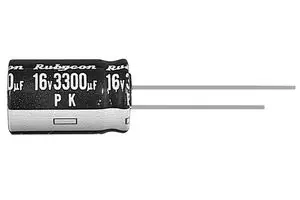

PK Series

Manufacturer: Rubycon

Catalog

ALUMINIUM ELECTROLYTIC CAPACITOR, PK SERIES, 10 - F, - 20%, 63 V, 5 MM, RADIAL LEADED ROHS COMPLIANT: YES

Part	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Mounting Type	Applications	Size / Dimension [diameter]	Size / Dimension [diameter]	Lead Spacing	Lead Spacing	Lifetime @ Temp.	Package / Case	Polarization	Ripple Current @ High Frequency	Capacitance	Voltage - Rated	Operating Temperature [Max]	Operating Temperature [Min]	Tolerance	Ripple Current @ Low Frequency	Height - Seated (Max) [Max]	Height - Seated (Max)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [z]
Rubycon 63PK10MEFC5X11	0.492 in	12.5 mm	Through Hole	General Purpose	0.197 in	5 mm	2 mm	0.079 in	2000 Hrs	Can Radial	Polar	105 mA	10 µF	63 V	85 °C	-40 C	20 %	70 mA
Rubycon 50PK4700MEFC18X40			Through Hole	General Purpose	0.709 in	18 mm	7.5 mm	0.295 in	2000 Hrs	Can Radial	Polar	3.22 A	4700 µF	50 VDC	85 °C	-40 C	20 %	2.8 A	1.634 in	41.5 mm
Rubycon 160PK10MEFC8X11.5	13.5 mm		Through Hole	General Purpose	0.315 in	8 mm	3.5 mm	0.138 in	2000 Hrs	Can Radial	Polar	124.5 mA	10 µF	160 V	85 °C	-40 C	20 %	83 mA	0.531 in
Rubycon 160PK220MEFC16X31.5			Through Hole	General Purpose	0.63 in	16 mm	7.5 mm	0.295 in	2000 Hrs	Can Radial	Polar	774 mA	220 µF	160 V	85 °C	-40 C	20 %	645 mA		33.5 mm	1.319 in
Rubycon 10PK10000MEFC16X25	27 mm		Through Hole	General Purpose	0.63 in	16 mm	7.5 mm	0.295 in	2000 Hrs	Can Radial	Polar	2.6105 A	10000 µF	10 V	85 °C	-40 C	20 %	2.27 A	1.063 in
Rubycon 50PK3300MEFC18X31.5			Through Hole	General Purpose	0.709 in	18 mm	7.5 mm	0.295 in	2000 Hrs	Can Radial	Polar	2.415 A	3.3 mF	50 VDC	85 °C	-40 C	20 %	2.1 A		33.5 mm	1.319 in
Rubycon 25PK220MEFC6.3X11	0.492 in	12.5 mm	Through Hole	General Purpose	0.248 "	6.3 mm	2.5 mm	0.098 in	2000 Hrs	Can Radial	Polar	372 mA	220 µF	25 VDC	85 °C	-40 C	20 %	310 mA
Rubycon 400PK10MEFC10X16			Through Hole	General Purpose	0.394 in	10 mm	5 mm	0.197 "	2000 Hrs	Can Radial	Polar	135 mA	10 µF	400 V	85 °C	-40 C	20 %	90 mA				17.5 mm	0.689 in
Rubycon 50PK2200MEFC16X31.5			Through Hole	General Purpose	0.63 in	16 mm	7.5 mm	0.295 in	2000 Hrs	Can Radial	Polar	2.277 A	2200 µF	50 VDC	85 °C	-40 C	20 %	1.98 A		33.5 mm	1.319 in
Rubycon 25PK6800MEFC16X31.5			Through Hole	General Purpose	0.63 in	16 mm	7.5 mm	0.295 in	2000 Hrs	Can Radial	Polar	2.806 A	6800 µF	25 VDC	85 °C	-40 C	20 %	2.44 A					1.299 in	33 mm
