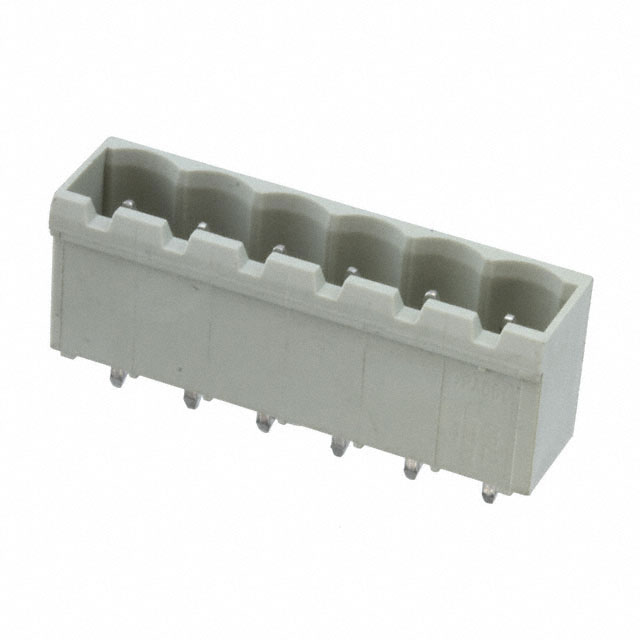

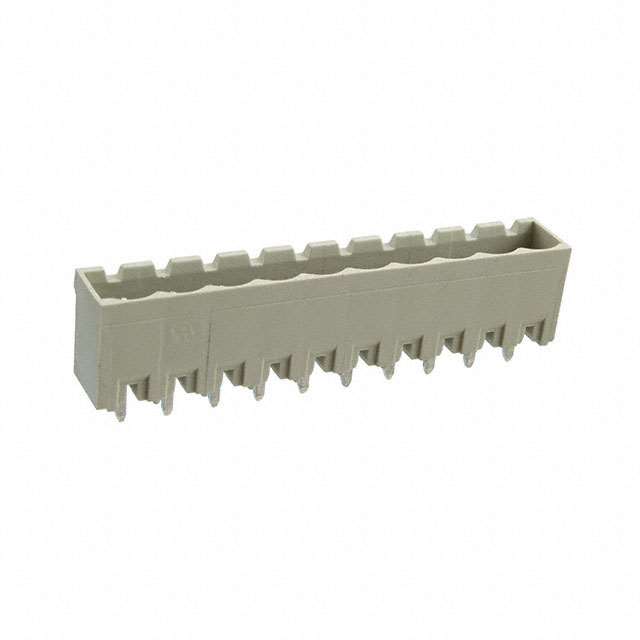

1546111 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

TERM BLOCK HDR 19POS VERT 5.08MM

Part	Insulation Height	Insulation Height	Contact Tail Length	Contact Tail Length	Operating Temperature [Min]	Operating Temperature [Max]	Color	Contact Mating Finish	Mounting Type	Header Orientation	Positions Per Level	Type	Pitch [x]	Pitch [x]	Voltage - UL	Number of Positions	Termination Style	Contact Material	Number of Levels	Material Flammability Rating	Number of Positions
TE Connectivity Raychem Cable Protection 1-1546111-9	0.472 in	12 mm	3.5 mm	0.138 in	-40 °C	110 °C	Gray	Tin	Through Hole	Vertical	19	Header Male Pins Shrouded (4 Side)	0.2 in	5.08 mm	300 V	19	Solder	Copper Alloy	1	UL94 V-0
TE Connectivity Raychem Cable Protection 1-1546111-1	0.472 in	12 mm	3.5 mm	0.138 in	-40 °C	110 °C	Gray	Tin	Through Hole	Vertical	11	Header Male Pins Shrouded (4 Side)	0.2 in	5.08 mm	300 V	11	Solder	Copper Alloy	1	UL94 V-0
TE Connectivity Raychem Cable Protection 1546111-3	0.472 in	12 mm	3.5 mm	0.138 in	-40 °C	110 °C	Gray	Tin	Through Hole	Vertical	3	Header Male Pins Shrouded (4 Side)	0.2 in	5.08 mm	300 V		Solder	Copper Alloy	1	UL94 V-0
TE Connectivity Raychem Cable Protection 1546111-5	0.472 in	12 mm	3.5 mm	0.138 in	-40 °C	110 °C	Gray	Tin	Through Hole	Vertical	5	Header Male Pins Shrouded (4 Side)	0.2 in	5.08 mm	300 V		Solder	Copper Alloy	1	UL94 V-0
TE Connectivity Raychem Cable Protection 1546111-7	0.472 in	12 mm	3.5 mm	0.138 in	-40 °C	110 °C	Gray	Tin	Through Hole	Vertical	7	Header Male Pins Shrouded (4 Side)	0.2 in	5.08 mm	300 V	7	Solder	Copper Alloy	1	UL94 V-0
TE Connectivity Raychem Cable Protection 1-1546111-6	0.472 in	12 mm	3.5 mm	0.138 in	-40 °C	110 °C	Gray	Tin	Through Hole	Vertical	16	Header Male Pins Shrouded (4 Side)	0.2 in	5.08 mm	300 V		Solder	Copper Alloy	1	UL94 V-0	16
