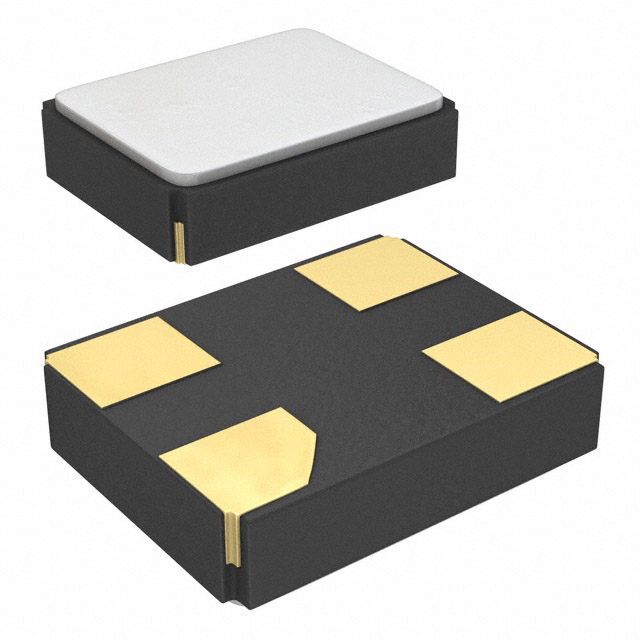

7V Series

Catalog

CRYSTALS 12MHZ 10PF -20C +70C

Part	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Load Capacitance	Mounting Type	Operating Mode	Type	Frequency Tolerance	Frequency	Frequency Stability	Supplier Device Package [x]	Supplier Device Package [y]	Supplier Device Package	Package / Case	ESR (Equivalent Series Resistance)	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]
TXC CORPORATION 7V12000008	0.035 in	0.9 mm	-20 ░C	70 °C	10 pF	Surface Mount	Fundamental	MHz Crystal	20 ppm	12 MHz	30 ppm	3.2	2.5	4-SMD	4-SMD No Lead	100 Ohms	2.5 mm	0.098 in	3.2 mm	0.126 "
TXC CORPORATION 7V-10.000MAKV-T	0.035 in	0.9 mm	-40 C	125 °C	8 pF	Surface Mount	Fundamental	MHz Crystal	30 ppm	10 MHz	60 ppm	3.2	2.5	4-SMD	4-SMD No Lead	150 Ohms	2.5 mm	0.098 in	3.2 mm	0.126 "
TXC CORPORATION 7V-24.000MDDV-T	0.035 in	0.9 mm	-20 ░C	70 °C	8 pF	Surface Mount	Fundamental	MHz Crystal	20 ppm	24 MHz	20 ppm	3.2	2.5	4-SMD	4-SMD No Lead	60 Ohms	2.5 mm	0.098 in	3.2 mm	0.126 "
TXC CORPORATION 7V-48.213330MAAQ-T	0.035 in	0.9 mm	-20 ░C	70 °C	10 pF	Surface Mount	Fundamental	MHz Crystal	30 ppm	48.21333 MHz	30 ppm	3.2	2.5	4-SMD	4-SMD No Lead	60 Ohms	2.5 mm	0.098 in	3.2 mm	0.126 "
TXC CORPORATION 7V-12.000MAHQ-T	0.035 in	0.9 mm	-40 C	85 °C	10 pF	Surface Mount	Fundamental	MHz Crystal	30 ppm	12 MHz	30 ppm	3.2	2.5	4-SMD	4-SMD No Lead	100 Ohms	2.5 mm	0.098 in	3.2 mm	0.126 "
TXC CORPORATION 7V-25.000MAAE-T	0.035 in	0.9 mm	-20 ░C	70 °C	12 pF	Surface Mount	Fundamental	MHz Crystal	30 ppm	25 MHz	30 ppm	3.2	2.5	4-SMD	4-SMD No Lead	60 Ohms	2.5 mm	0.098 in	3.2 mm	0.126 "
TXC CORPORATION 7V-16.384MAHE-T	0.035 in	0.9 mm	-40 C	85 °C	12 pF	Surface Mount	Fundamental	MHz Crystal	30 ppm	16.384 MHz	30 ppm	3.2	2.5	4-SMD	4-SMD No Lead	60 Ohms	2.5 mm	0.098 in	3.2 mm	0.126 "
TXC CORPORATION 7V-30.000MAGJ-T	0.035 in	0.9 mm	-40 C	85 °C	18 pF	Surface Mount	Fundamental	MHz Crystal	30 ppm	30 MHz	50 ppm	3.2	2.5	4-SMD	4-SMD No Lead	60 Ohms	2.5 mm	0.098 in	3.2 mm	0.126 "
TXC CORPORATION 7V-12.000MAHV-T	0.035 in	0.9 mm	-40 C	85 °C	8 pF	Surface Mount	Fundamental	MHz Crystal	30 ppm	12 MHz	30 ppm	3.2	2.5	4-SMD	4-SMD No Lead	100 Ohms	2.5 mm	0.098 in	3.2 mm	0.126 "
TXC CORPORATION 7V-28.000MDDV-T	0.035 in	0.9 mm	-20 ░C	70 °C	8 pF	Surface Mount	Fundamental	MHz Crystal	20 ppm	28 MHz	20 ppm	3.2	2.5	4-SMD	4-SMD No Lead	60 Ohms	2.5 mm	0.098 in	3.2 mm	0.126 "
