OC69271 Series

Catalog

OMNI,DBAND,FIXED,NF 698-960MHZ,1.5DBI

Part	Frequency (Center/Band)	Gain	Number of Bands	VSWR	Applications	Frequency Group	Termination	Height (Max) [z]	Height (Max) [z]	Power - Max [Max]	Antenna Type	Mounting Type	Frequency Range [Min]	Frequency Range [Max]	RF Family/Standard
TE Connectivity AMP Connectors OC69271-FNF	1.85 GHz 2.045 GHz 2.3 GHz 2.595 GHz 829 MHz	1.5 dBi 3.5 dBi	5	2 2.5	3G 4G GSM LTE WiMax™	Wide Band	N Type Female	248 mm	9.764 in	10 W	Whip Straight	Bracket Mount	1.71 GHz 1.92 GHz 2.1 GHz 2.5 GHz 698 MHz	1.99 GHz 2.17 GHz 2.5 GHz 2.69 GHz 960 MHz	Cellular WiFi

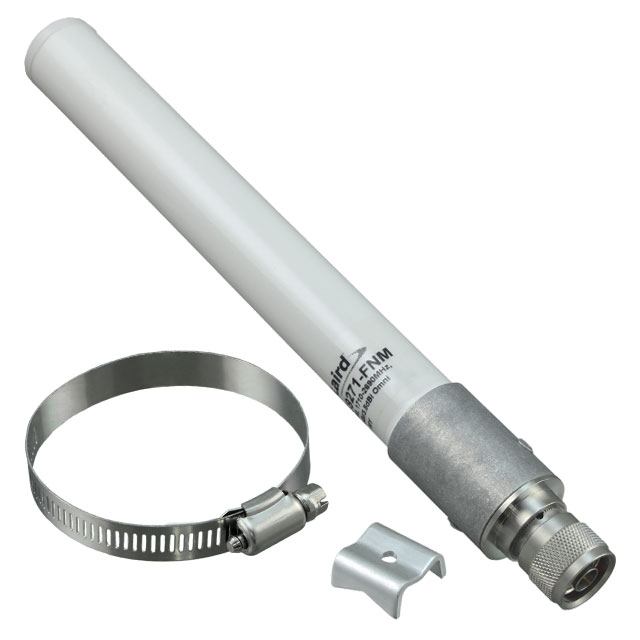

TE Connectivity AMP Connectors OC69271-FNM	1.85 GHz 2.045 GHz 2.3 GHz 2.595 GHz 829 MHz	1.5 dBi 3.5 dBi	5	2 2.5	3G 4G GSM LTE WiMax™	Wide Band	N Type Male	248 mm	9.764 in	10 W	Whip Straight	Bracket Mount	1.71 GHz 1.92 GHz 2.1 GHz 2.5 GHz 698 MHz	1.99 GHz 2.17 GHz 2.5 GHz 2.69 GHz 960 MHz	Cellular WiFi
TE Connectivity AMP Connectors OC69271-FNF	1.85 GHz 2.045 GHz 2.3 GHz 2.595 GHz 829 MHz	1.5 dBi 3.5 dBi	5	2 2.5	3G 4G GSM LTE WiMax™	Wide Band	N Type Female	248 mm	9.764 in	10 W	Whip Straight	Bracket Mount	1.71 GHz 1.92 GHz 2.1 GHz 2.5 GHz 698 MHz	1.99 GHz 2.17 GHz 2.5 GHz 2.69 GHz 960 MHz	Cellular WiFi
TE Connectivity AMP Connectors OC69271-FNM	1.85 GHz 2.045 GHz 2.3 GHz 2.595 GHz 829 MHz	1.5 dBi 3.5 dBi	5	2 2.5	3G 4G GSM LTE WiMax™	Wide Band	N Type Male	248 mm	9.764 in	10 W	Whip Straight	Bracket Mount	1.71 GHz 1.92 GHz 2.1 GHz 2.5 GHz 698 MHz	1.99 GHz 2.17 GHz 2.5 GHz 2.69 GHz 960 MHz	Cellular WiFi
