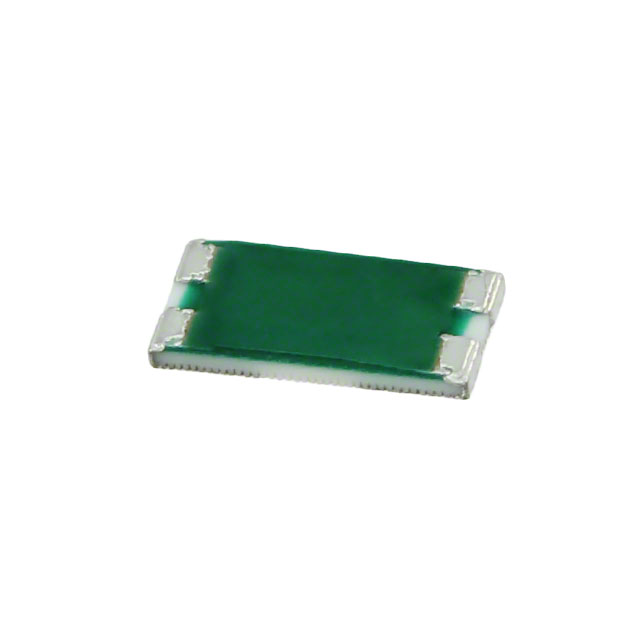

LVK Series

Manufacturer: Ohmite

Catalog

CURRENT SENSE RESISTORS - SMD 0.05OHM .5% 4 TERMINAL

Part	Number of Terminations	Temperature Coefficient	Features	Resistance	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Power (Watts)	Power (Watts)	Composition	Tolerance	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Power (Watts)	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Ohmite LVK12R050DER	4	50 ppm/░C	Anti-Corrosive Current Sense Moisture Resistant	0.05 Ohms	1206 (3216 Metric)	0.026 in	0.65 mm	0.063 "	0.126 "	3.2 mm	1.6 mm	0.5 W	0.5 W	Thick Film	0.5 %	1206	125 °C	-40 C
Ohmite LVK20R030DER	4	50 ppm/░C	Anti-Corrosive Current Sense Moisture Resistant	0.03 Ohms	2010 (5025 Metric)	0.026 in	0.65 mm	0.098 in	0.197 in	5 mm	2.5 mm	0.75 W		Thick Film	0.5 %		125 °C	-40 C	2010	3/4W
Ohmite LVK12R030CER	4	50 ppm/░C	Current Sense Moisture Resistant	0.03 Ohms	1206 (3216 Metric)	0.026 in	0.65 mm	0.063 "	0.126 "	3.2 mm	1.6 mm	0.5 W	0.5 W	Thick Film	0.25 %	1206	125 °C	-40 C

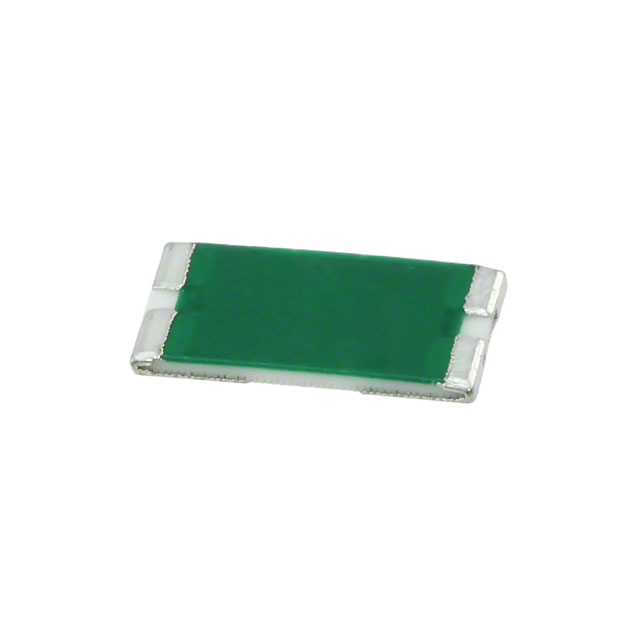

Ohmite LVK24R100CER	4	50 ppm/░C	Current Sense Moisture Resistant	0.1 Ohms	2512 2512 (6432 Metric)							1 W		Thick Film	0.25 %		125 °C	-40 C	2512		6332 Metric	0.7 mm	0.028 "
Ohmite LVK12R100CER	4	50 ppm/░C	Current Sense Moisture Resistant	0.1 Ohms	1206 (3216 Metric)	0.026 in	0.65 mm	0.063 "	0.126 "	3.2 mm	1.6 mm	0.5 W	0.5 W	Thick Film	0.25 %	1206	125 °C	-40 C
Ohmite LVK08R015FER
Ohmite LVK12R047FER	4	50 ppm/░C	Anti-Corrosive Current Sense Moisture Resistant	47 mOhms	1206 (3216 Metric)	0.026 in	0.65 mm	0.063 "	0.126 "	3.2 mm	1.6 mm	0.5 W	0.5 W	Thick Film	1 %	1206	125 °C	-40 C
