2174988 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
CONN SOCKET LGA 2011POS GOLD
| Part | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish - Mating | Housing Material | Pitch - Mating | Pitch - Mating | Features | Material Flammability Rating | Number of Positions or Pins (Grid) [custom] | Number of Positions or Pins (Grid) [custom] | Contact Material - Mating | Termination | Pitch - Post | Pitch - Post | Contact Finish - Post | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Material - Post [custom] | Type | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

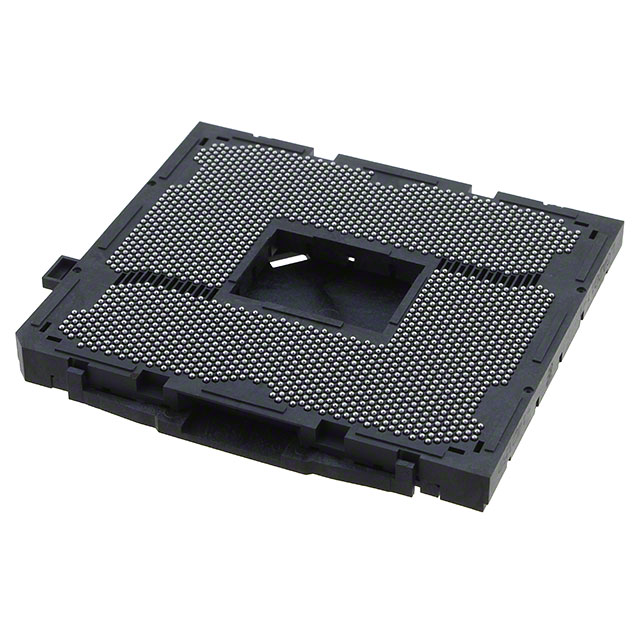

 TE Connectivity Raychem Cable Protection | 15 µin | 0.38 µm | Gold | Thermoplastic | 1.02 mm | 0.04 in | Closed Frame | UL94 V-0 | 47 x 58 | 2011 | Copper Alloy | Solder | 0.035 " | 0.9 mm | Gold | 15 µin | 0.38 µm | Copper Alloy | LGA | Surface Mount |

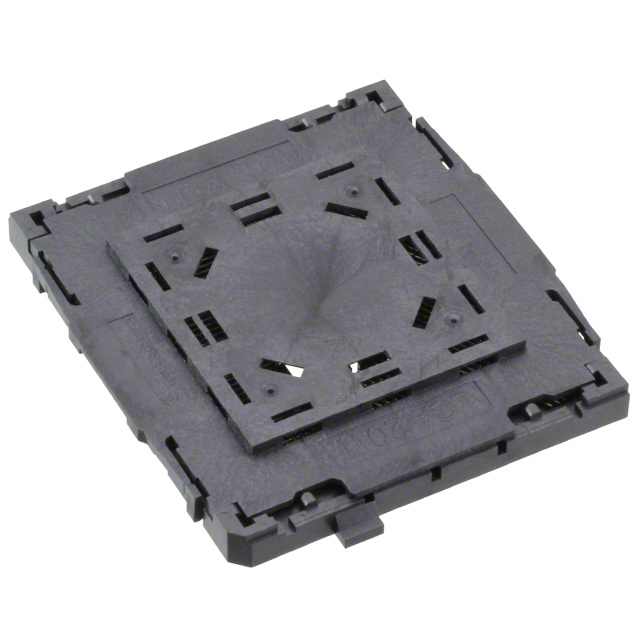

 TE Connectivity Raychem Cable Protection | 30 Áin | 0.76 Ám | Gold | Thermoplastic | 1.02 mm | 0.04 in | Open Frame | UL94 V-0 | 47 x 58 | 2011 | Copper Alloy | Solder | 0.035 " | 0.9 mm | Gold | 30 µin | 0.76 µm | Copper Alloy | LGA | Surface Mount |
