ET Series

Catalog

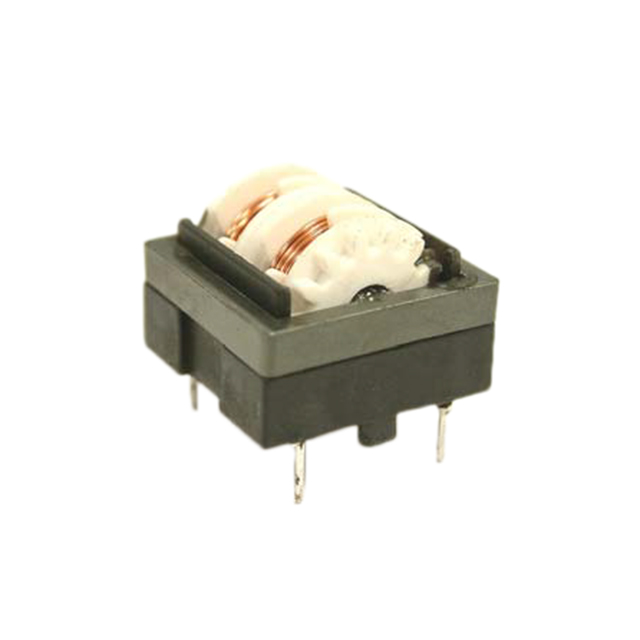

COMMON MODE CHOKES / FILTERS COMMON MODE CHOKE 120.0MHA.0.5ARMS/ET2825-025

Part	Package / Case	Current Rating (Max) [Max]	Voltage Rating - AC	DC Resistance (DCR) (Max) [Max]	Height (Max) [z]	Height (Max) [z]	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Number of Lines	Filter Type	Approval Agency	Mounting Type	Inductance @ Frequency
Triad Magnetics ET2825-025	4 PC Pin Horizontal	500 mA	250 V	2.6 Ohm	0.984 in	25 mm	-20 ░C	105 ░C	30 mm	30 mm	1.181 in	1.181 in	2	Power Line	CSA IEC UL	Through Hole
Triad Magnetics ET2825-033	4 PC Pin Horizontal	3 A	250 V	100 mOhm	0.984 in	25 mm	-20 ░C	105 ░C	30 mm	30 mm	1.181 in	1.181 in	2	Power Line	CSA IEC UL	Through Hole	5 mH
