OSTTB12 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K
TERM BLK 12P TOP ENT 5.08MM PCB
| Part | Screw Material - Plating | Operating Temperature [Min] | Operating Temperature [Max] | Screw Thread | Housing Material | Clamp Material - Plating [custom] | Contact Material - Plating | Torque - Screw | Torque - Screw | Pitch | Pitch | Features | Wire Termination | Current | Mounting Type | Number of Levels | Wire Gauge [Min] | Wire Gauge [Max] | Positions Per Level | Color | Mating Orientation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

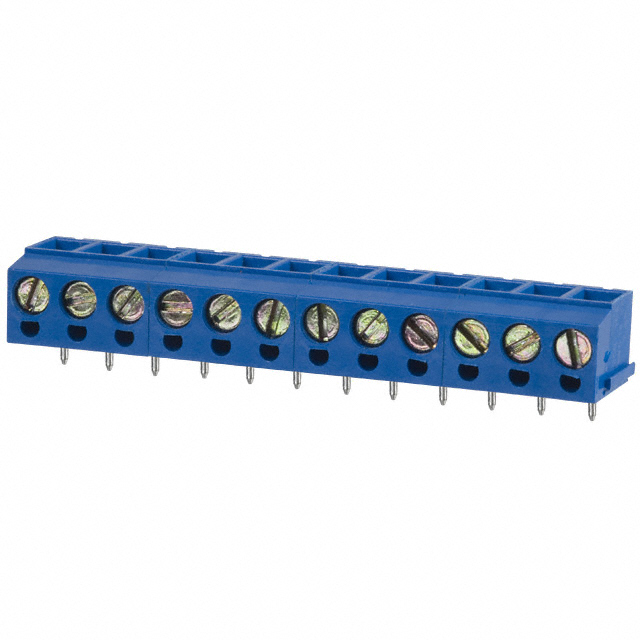

 On Shore Technology Inc. | Steel - Zinc Plated | -30 ░C | 105 ░C | M3 | Thermoplastic | Stainless Steel | Tin Plated | 3.5 Lb-In | 0.4 Nm | 5.08 mm | 0.2 in | Interlocking (Side) | Screw - Leaf Spring Wire Guard | 15 A | Through Hole | 1 | 14 AWG | 22 AWG | 12 | Blue | Vertical with Board |

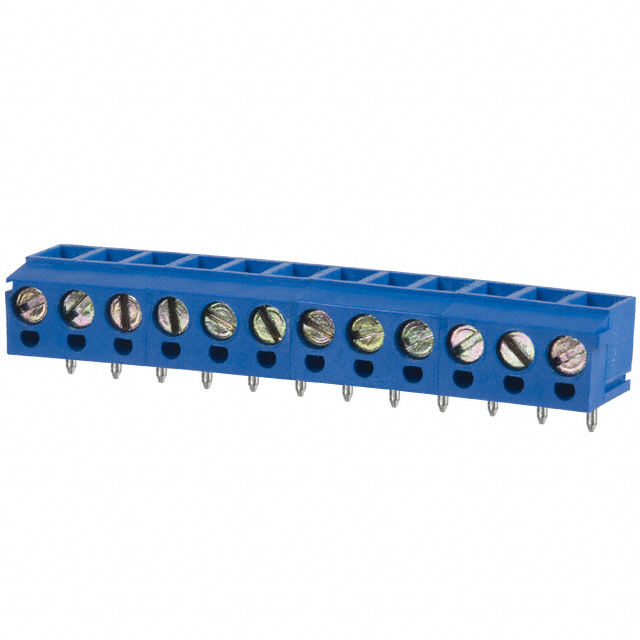

 On Shore Technology Inc. | Steel - Zinc Plated | -30 ░C | 105 ░C | M3 | Thermoplastic | Stainless Steel | Tin Plated | 2.6 Lb-In | 0.3 Nm | 5 mm | 0.197 in | Interlocking (Side) | Screw - Leaf Spring Wire Guard | 16 A | Through Hole | 1 | 14 AWG | 22 AWG | 12 | Blue | Vertical with Board |
