LTM4608 Series

Catalog

8A, LOW VINDC/DC ΜMODULE (POWER MODULE) WITH TRACKING, MARGINING, MULTIPHASE AND FREQUENCY SYNCHRONIZATION

Part	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Voltage - Input (Max) [Max]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Mounting Type	Current - Output (Max) [Max]	Voltage - Output 1 [Min] [custom]	Voltage - Output 1 [Max] [custom]	Number of Outputs	Efficiency	Type	Supplier Device Package	Supplier Device Package	Package / Case	Voltage - Input (Min) [Min]	Features

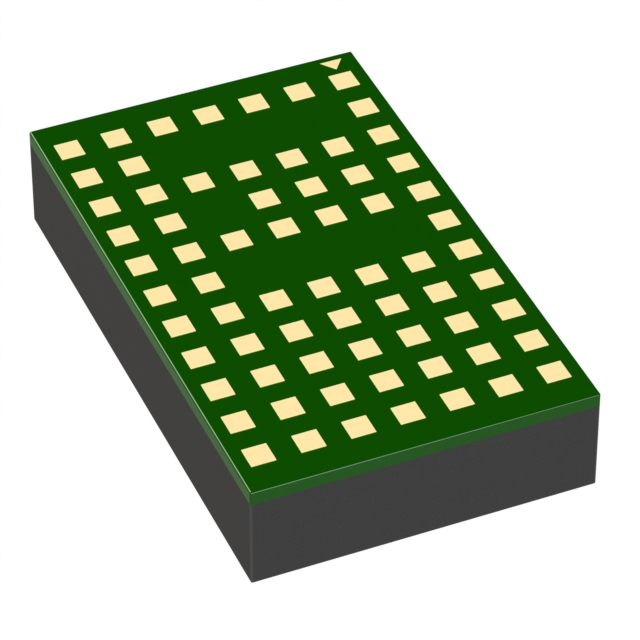

Analog Devices Inc./Maxim Integrated LTM4608IV#PBF	85 °C	-40 C	ITE (Commercial)	5.5 V	15 mm	2.8 mm	0.35 in	9 mm	0.11 "	0.59 in	Surface Mount	8 A	0.6 V	5 V	1	98 %	Non-Isolated PoL Module	68-LGA	9 15	68-BLGA Module	2.7 V
Analog Devices Inc./Maxim Integrated LTM4608AEV#PBF	125 °C	-40 C	ITE (Commercial)	5.5 V	15 mm	2.8 mm	0.35 in	9 mm	0.11 "	0.59 in	Surface Mount	8 A	0.6 V	5 V	1	98 %	Non-Isolated PoL Module	68-LGA	9 15	68-BLGA Module	2.7 V

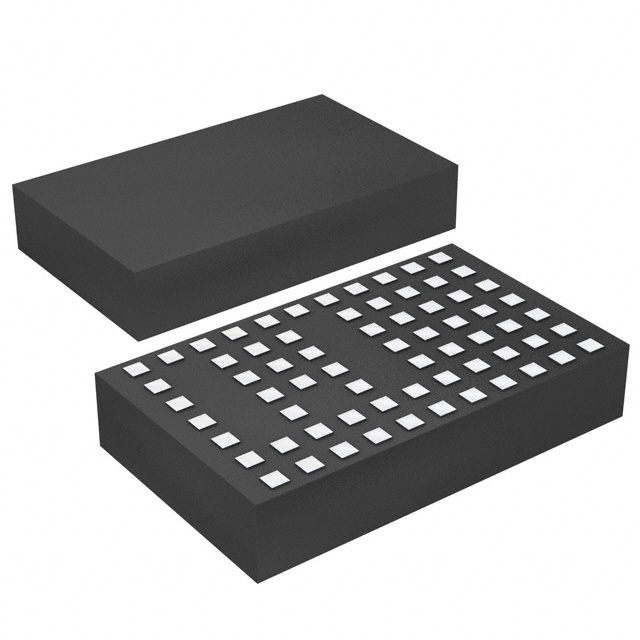

Analog Devices Inc./Maxim Integrated LTM4608AMPY#PBF	125 °C	-55 C	ITE (Commercial)	5.5 V	15 mm	3.4 mm	0.35 in	9 mm	0.13 "	0.59 in	Surface Mount	8 A	0.6 V	5 V	1		Non-Isolated PoL Module	68-BGA (15x9)		68-BBGA Module	2.7 V	OVP SCP UVLO
Analog Devices Inc./Maxim Integrated LTM4608AIV#PBF	125 °C	-40 C	ITE (Commercial)	5.5 V	15 mm	2.8 mm	0.35 in	9 mm	0.11 "	0.59 in	Surface Mount	8 A	0.6 V	5 V	1	98 %	Non-Isolated PoL Module	68-LGA	9 15	68-BLGA Module	2.7 V
Analog Devices Inc./Maxim Integrated LTM4608EV#PBF	85 °C	-40 C	ITE (Commercial)	5.5 V	15 mm	2.8 mm	0.35 in	9 mm	0.11 "	0.59 in	Surface Mount	8 A	0.6 V	5 V	1		Non-Isolated PoL Module	68-LGA	9 15	68-BLGA Module	2.7 V	OCP OTP OVP UVLO
