ISL28633 Series

5V, Rail-Rail I/O, Zero-Drift, Differential Output Programmable Gain Instrumentation Amplifier

Manufacturer: Renesas Electronics Corporation

Catalog

5V, Rail-Rail I/O, Zero-Drift, Differential Output Programmable Gain Instrumentation Amplifier

Part	Voltage - Input Offset	Voltage - Supply Span (Max) [Max]	Gain Bandwidth Product	Current - Output / Channel	Package / Case [custom]	Package / Case [custom]	Package / Case	Current - Supply	Supplier Device Package	Current - Input Bias	Number of Circuits	Slew Rate	Voltage - Supply Span (Min) [Min]	Mounting Type	Amplifier Type	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	Current - Supply (Main IC)	Channels per IC	Voltage - Supply, Single/Dual (±) [Min]	Voltage - Supply, Single/Dual (±) [Max]	Utilized IC / Part	Supplied Contents	Board Type
Renesas Electronics Corporation ISL28633FVZ-T7A	0.2 µV	5.5 V	2.3 MHz	45 mA	0.173 "	4.4 mm	14-TSSOP	3 mA	14-TSSOP	50 pA	1	0.8 V/µs	2.5 V	Surface Mount	Zero-Drift	Rail-to-Rail	125 °C	-40 °C
Renesas Electronics Corporation ISL28633FVZ	0.2 µV	5.5 V	2.3 MHz	45 mA	0.173 "	4.4 mm	14-TSSOP	3 mA	14-TSSOP	50 pA	1	0.8 V/µs	2.5 V	Surface Mount	Zero-Drift	Rail-to-Rail	125 °C	-40 °C

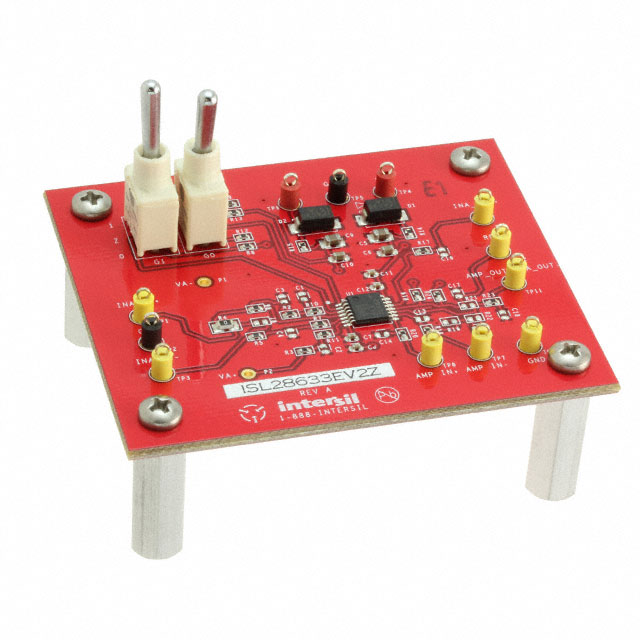

Renesas Electronics Corporation ISL28633EV2Z				45 mA								0.8 V/µs			Zero-Drift	Differential Rail-to-Rail			2.9 mA	1 - Single	-1.25 V 2.5 V	2.75 V 5.5 V	ISL28633	Board(s)	Fully Populated

Catalog

5V, Rail-Rail I/O, Zero-Drift, Differential Output Programmable Gain Instrumentation Amplifier

Description

The ISL28633 is a 5V zero-drift rail-to-rail input/output (RRIO) Programmable Gain Instrumentation Amplifier (PGIA). This instrumentation amplifier features low offset, low noise, low gain error, and high CMRR. It is ideal for high precision applications over the wide industrial temperature range. This in-amp is designed with a unique 2-bit, 3-state logic interface that allows up to 9 selectable gain settings. The ISL2863x differential output amplifier includes a reference pin to set the common-mode output voltage to interface with differential input ADCs.
