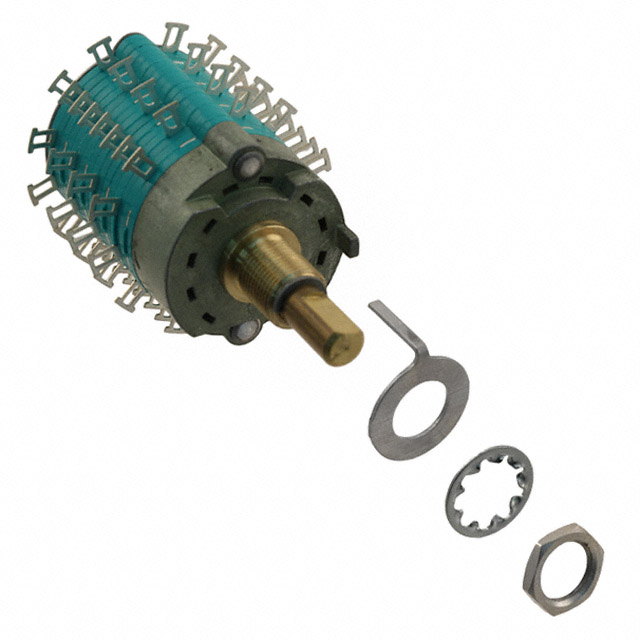

C4D1204 Series
Manufacturer: Electroswitch
Beta
⌘K
SWITCH ROTARY 2-4POS 300MA 125V
| Part | Panel Cutout Dimensions [diameter] | Number of Poles per Deck | Termination Style | Actuator Type | Circuit per Deck | Voltage Rating - AC | Number of Decks | Contact Timing | Angle of Throw | Index Stops | Contact Finish | Contact Material | Number of Positions [Min] | Number of Positions [Max] | Mounting Type | Actuator Length [x] | Depth Behind Panel [z] | Voltage Rating - DC | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Electroswitch | 9.78 mm | 3 | Solder Lug | Flatted (6.35mm Dia) | 3P4T | 125 V | 4 | Non-Shorting (BBM) | 30 ° | Adjustable | Silver | Brass | 2 | 4 | Panel Mount | 0.5 in | 41.76 mm | 28 V | 300 mA 500 mA |
