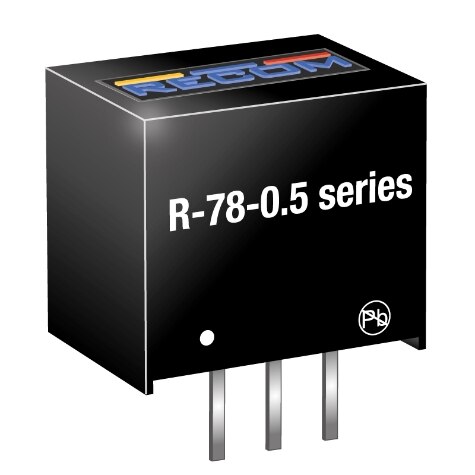

R-78 Series
Manufacturer: Recom Power
Beta
⌘K
NON-ISOLATED DC/DC CONVERTERS 0.5A DC/DC REG 6.5-34VIN 5VOUT
| Part | Applications | Voltage - Output 1 | Voltage - Input (Max) [Max] | Mounting Type | Package / Case | Number of Outputs | Features | Current - Output (Max) [Max] | Type | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Power (Watts) | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input (Min) [Min] | Efficiency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Recom Power | ITE (Commercial) | 5 V | 32 V | Through Hole | 3-SIP Module | 1 | OTP SCP | 500 mA | Linear Regulator Replacement | 10.2 mm | 11.5 mm | 0.45 " | 7.5 mm | 0.4 " | 0.3 " | 3 W | 85 °C | -40 C | 6.5 V | 94 % |
 Recom Power | ITE (Commercial) | 2.5 V | 32 V | Through Hole | 3-SIP Module | 1 | OTP SCP | 500 mA | Linear Regulator Replacement | 10.2 mm | 11.5 mm | 0.45 " | 7.5 mm | 0.4 " | 0.3 " | 1.25 W | 85 °C | -40 C | 4.75 V | 87 % |
 Recom Power | ITE (Commercial) | 12 V | 32 V | Through Hole | 3-SIP Module | 1 | OTP SCP | 500 mA | Linear Regulator Replacement | 10.2 mm | 11.5 mm | 0.45 " | 7.5 mm | 0.4 " | 0.3 " | 6 W | 85 °C | -40 C | 15 V | 97 % |
 Recom Power | ITE (Commercial) | 1.8 V | 18 V | Through Hole | 3-SIP Module | 1 | OTP SCP | 1 A | Linear Regulator Replacement | 10.2 mm | 11.5 mm | 0.45 " | 7.5 mm | 0.4 " | 0.3 " | 2 W | 85 °C | -40 C | 4.75 V | |
 Recom Power | ITE (Commercial) | 6.5 V | 32 V | Through Hole | 3-SIP Module | 1 | OTP SCP | 500 mA | Linear Regulator Replacement | 10.2 mm | 11.5 mm | 0.45 " | 7.5 mm | 0.4 " | 0.3 " | 3 W | 85 °C | -40 C | 8 V | 95 % |
Recom Power | ITE (Commercial) | 1.5 V | 30 V | Through Hole | 3-SIP Module | 1 | OTP SCP | 500 mA | Linear Regulator Replacement | 10.2 mm | 11.5 mm | 0.45 " | 7.5 mm | 0.4 " | 0.3 " | 0.75 W | 85 °C | -40 C | 4.75 V | 73 % |
 Recom Power | ITE (Commercial) | 2.5 V | 18 V | Through Hole | 3-SIP Module | 1 | OTP SCP | 1 A | Linear Regulator Replacement | 10.2 mm | 11.5 mm | 0.45 " | 7.5 mm | 0.4 " | 0.3 " | 3 W | 85 °C | -40 C | 4.75 V | 87 % |
Recom Power | ITE (Commercial) | 3.3 V | 32 V | Through Hole | 3-SIP Module | 1 | OTP SCP | 500 mA | Linear Regulator Replacement | 10.2 mm | 11.5 mm | 0.45 " | 7.5 mm | 0.4 " | 0.3 " | 2 W | 85 °C | -40 C | 4.75 V | 91 % |
Recom Power | ITE (Commercial) | 15 V | 32 V | Through Hole | 3-SIP Module | 1 | OTP SCP | 500 mA | Linear Regulator Replacement | 10.2 mm | 11.5 mm | 0.45 " | 7.5 mm | 0.4 " | 0.3 " | 8 W | 85 °C | -40 C | 18 V | 97 % |
Recom Power | ITE (Commercial) | 5 V | 18 V | Through Hole | 3-SIP Module | 1 | OTP SCP | 1 A | Linear Regulator Replacement | 10.2 mm | 11.5 mm | 0.45 " | 7.5 mm | 0.4 " | 0.3 " | 5 W | 85 °C | -40 C | 6.5 V | 94 % |
