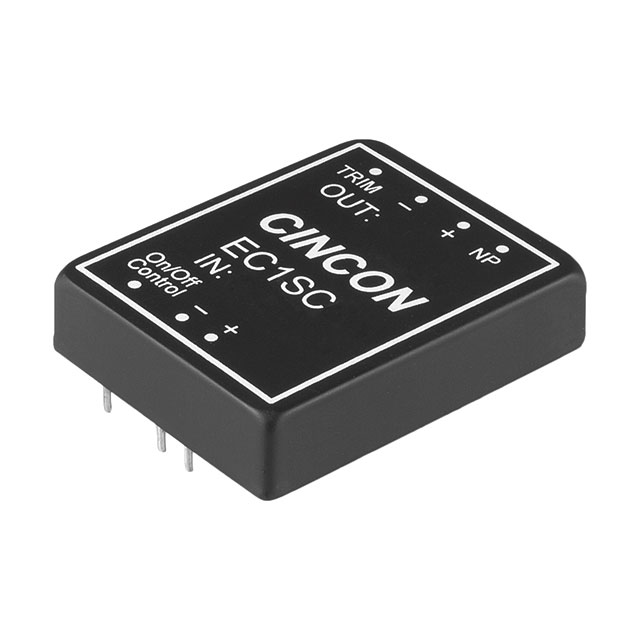

EC1SC Series
Manufacturer: Cincon Electronics Co. LTD
Beta
⌘K
DC DC CONVERTER 5V 20W
| Part | Control Features | Current - Output (Max) [Max] | Power (Watts) | Number of Outputs | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Input (Max) [Max] | Standard Number | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Voltage - Output 1 | Features | Applications | Package / Case | Voltage - Isolation | Type | Voltage - Input (Min) [Min] | Efficiency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cincon Electronics Co. LTD | Active High Enable | 4 A | 20 W | 1 | Through Hole | -25 °C | 100 °C | 72 V | 60950-1 | 50.8 mm | 0.45 in | 1.6 in | 40.6 mm | 11.4 mm | 2 in | 5 V | OCP Remote On/Off SCP | ITE (Commercial) | 8-DIP Module 7 Leads | 1.5 kV | Isolated Module | 18 V | |
 Cincon Electronics Co. LTD | Active High Enable | 4 A | 13 W | 1 | Through Hole | -25 °C | 100 °C | 36 V | 60950-1 | 50.8 mm | 0.45 in | 1.6 in | 40.6 mm | 11.4 mm | 2 in | 3.3 V | OCP Remote On/Off SCP | ITE (Commercial) | 8-DIP Module 7 Leads | 1.5 kV | Isolated Module | 9 V | 78 % |
