ISZ230 Series
Manufacturer: INFINEON
Beta
⌘K
ISZ230N10NM6 OPTIMOS™ 6 100V IN NORMAL LEVEL IS SETTING THE NEW TECHNOLOGY STANDARD IN THE FIELD OF DISCRETE POWER MOSFETS.
| Part | Drive Voltage (Max Rds On, Min Rds On) | Operating Temperature [Max] | Operating Temperature [Min] | Power Dissipation (Max) | Power Dissipation (Max) | Drain to Source Voltage (Vdss) | Supplier Device Package | Mounting Type | FET Type | Rds On (Max) @ Id, Vgs | Input Capacitance (Ciss) (Max) @ Vds [Max] | Technology | Current - Continuous Drain (Id) @ 25°C | Vgs (Max) | Gate Charge (Qg) (Max) @ Vgs | Package / Case | Vgs(th) (Max) @ Id |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

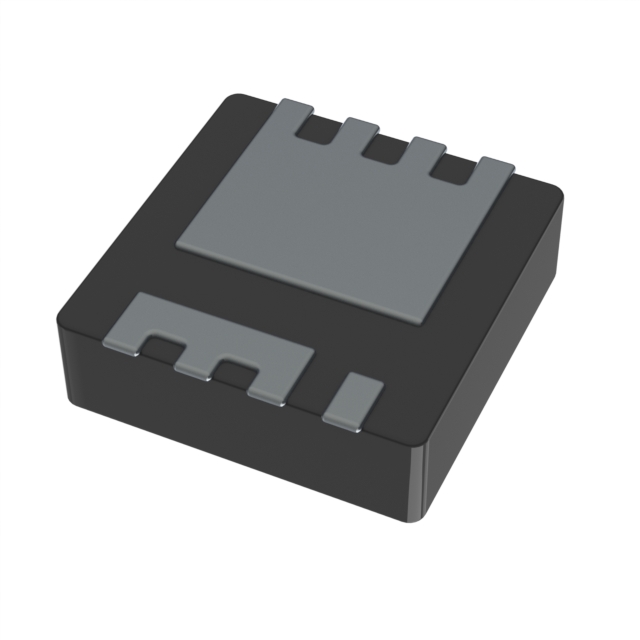

 INFINEON | 8 V 10 V | 175 °C | -55 °C | 48 W | 3 W | 100 V | PG-TSDSON-8 FL | Surface Mount | N-Channel | 23 mOhm | 690 pF | MOSFET (Metal Oxide) | 7.7 A 31 A | 20 V | 9.3 nC | 8-PowerTDFN | 3.3 V |
