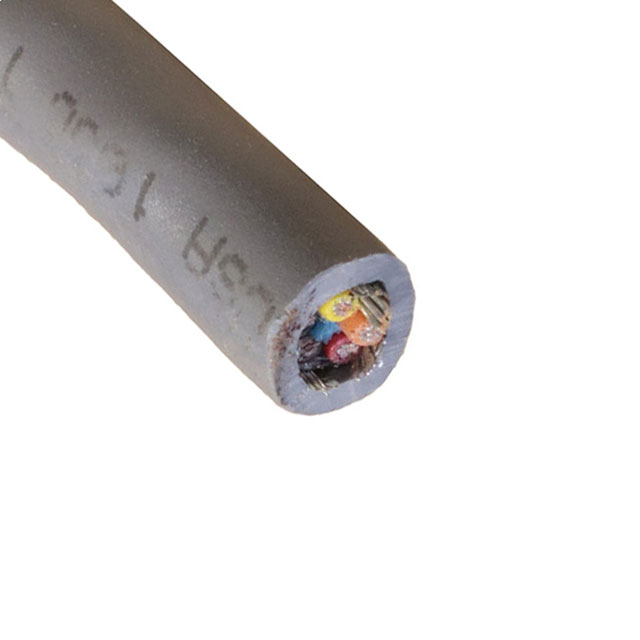

5320C Series
Manufacturer: ALPHA WIRE
Catalog
CABLE 5COND 20AWG SLATE SHLD
| Part | Shield Coverage | Shield Material | Voltage | Number of Conductors | Shield Type | Length [x] | Length [x] | Wire Gauge | Conductor Material | Features | Usage | Operating Temperature [Min] | Operating Temperature [Max] | Cable Type | Conductor Insulation | Jacket (Insulation) Material | Ratings | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Strand [custom] | Conductor Strand [custom] | Jacket Color | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | 300 VDC | 5 | Braid Foil | 100 ft | 30.5 m | 20 AWG | Copper Tinned | Biological Compatibility Drain Wire Rip Cord | Communication Control | -35 °C | 105 ░C | Multi-Conductor | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | ISO 10993 | 1.6 mm | 0.063 in | 28 AWG | 7 | Slate | 8.03 mm | 0.316 " |
