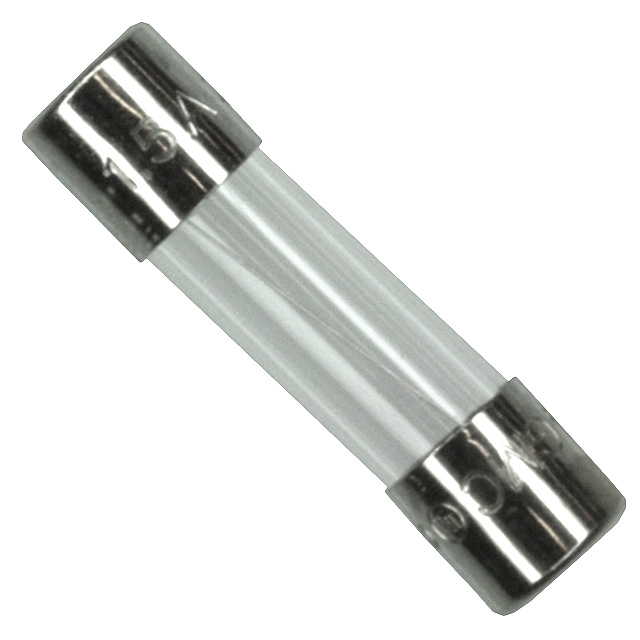

GMC Series

Cartridge Fuses 700mA 250VAC TD GMC Series

Manufacturer: Eaton - Electronics Division

Catalog

Cartridge Fuses 700mA 250VAC TD GMC Series

Catalog

Cartridge Fuses 700mA 250VAC TD GMC Series

Part	Melting I˛t	Response Time	Approval Agency	Package / Case [x]	Package / Case [y]	Breaking Capacity @ Rated Voltage	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [diameter]	Fuse Type	Melting I²t	Mounting Type	Current Rating (Amps)	Voltage Rating - AC	DC Cold Resistance	Package / Case

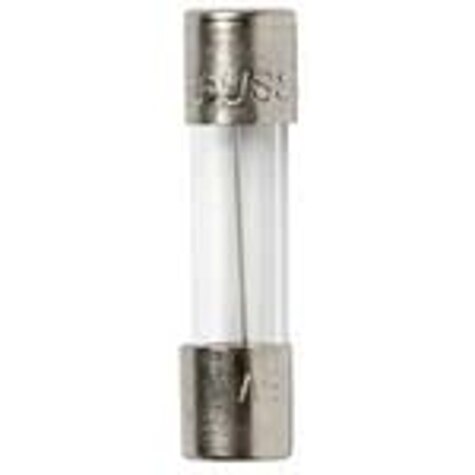

Eaton - Electronics Division GMC-80-R	0.005	Medium Blow	CSA KC-MARK UL	5 mm	20 mm	35 A	20 mm	0.205 in	0.787 "	5.2 mm	Cartridge Glass	0.005	Requires Holder	80 mA	250 V
Eaton - Electronics Division GMC-700-R		Medium Blow	CSA KC UL	5 mm	20 mm	35 A	20 mm	0.205 in	0.787 "	5.2 mm	Cartridge Glass	0.85	Requires Holder	700 mA
Eaton - Electronics Division GMC-4-R		Medium Blow	CSA KC-MARK MITI UL	5 mm	20 mm		20 mm	0.205 in	0.787 "	5.2 mm	Cartridge Glass	36	Requires Holder	4 A	125 V
Eaton - Electronics Division BK/GMC-6.3-R		Medium Blow	CSA KC-MARK MITI UL	5 mm	20 mm		20 mm	0.205 in	0.787 "	5.2 mm	Cartridge Glass	110	Requires Holder	6.3 A	125 V	0.012 Ohms
Eaton - Electronics Division GMC-1.25-R		Medium Blow	CSA KC-MARK MITI UL	5 mm	20 mm	100 A	20 mm	0.205 in	0.787 "	5.2 mm	Cartridge Glass	3.4	Requires Holder	1.25 A	250 V
Eaton - Electronics Division BK/GMC-V-2.5-R		Medium Blow	CSA KC-MARK MITI UL	5 mm	20 mm	100 A	21.1 mm	0.218 in	0.831 in	5.54 mm	Cartridge Glass	13 I²t	Through Hole	2.5 A	250 V		Axial
