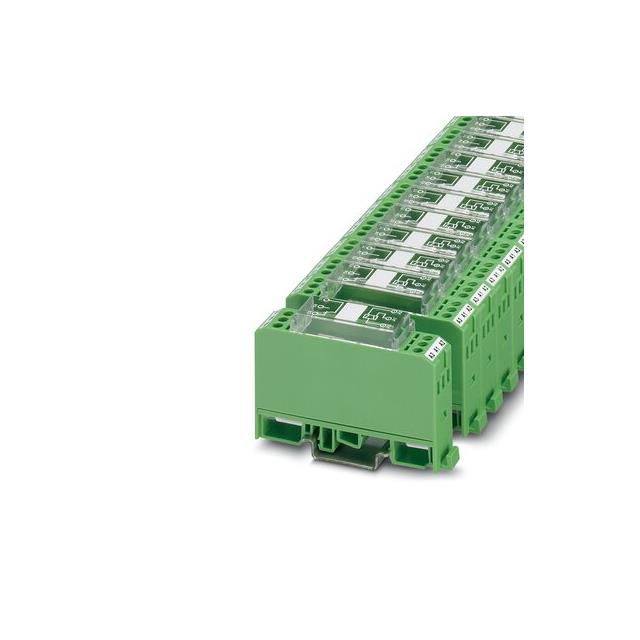

29466 Series
Manufacturer: Phoenix Contact
Beta
⌘K
POWER RLY, DC, SPDT, 250VDC, 6A ROHS COMPLIANT: YES
| Part | Coil Resistance | Contact Form | Operate Time | Coil Type | Load - Max Switching | Switching Voltage | Release Time | Relay Type | Contact Material | Contact Rating (Current) | Mounting Type | Approval Agency | Features | Termination Style | Coil Current | Coil Voltage | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Phoenix Contact | 5647 Ohms | SPDT (1 Form C) | 5 ms | Non Latching | 144 W 1500 VA | 250 VAC 250 VDC | 5 ms | General Purpose | Silver Tin Oxide (AgSnO) | 6 A | DIN Rail | cULus EAC UL | Diode Socket Included | Screw Terminal | 8.5 mA | 48 VDC | -40 C | 50 °C |
