TXW-V86 Series

Catalog

BUZZER PIEZO 35.81MM PNL MNT

Part	Mounting Type	Input Type	Technology	Operating Mode	Voltage Range [Min]	Voltage Range [Max]	Size / Dimension [diameter]	Size / Dimension [diameter]	Driver Circuitry	Port Location	Frequency	Sound Pressure Level (SPL)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Ingress Protection	Termination	Termination	Termination	Current - Supply [Max]	Current - Supply [Min]	Approval Agency

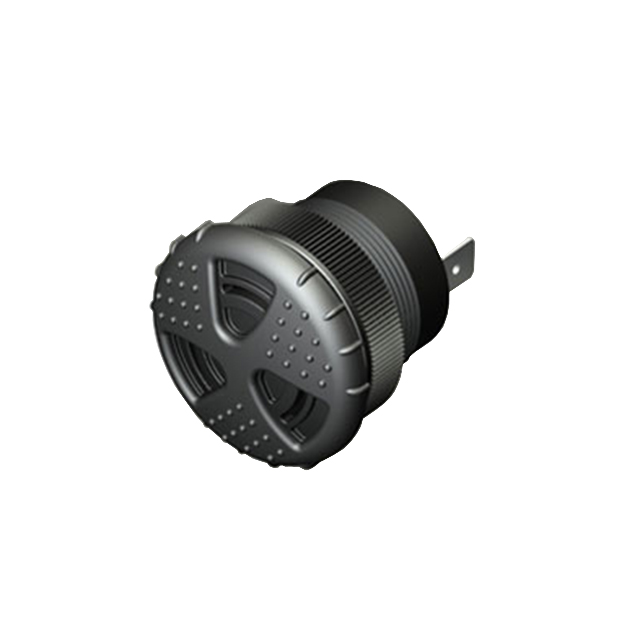

Floyd Bell Inc TXW-V86-515-Q(S)	Panel Mount	DC	Piezo	Slow Warble	5 VDC	15 V	1.41 in	35.81 mm	Indicator Internally Driven	Top	2.9 kHz	103 dB	1.25 "	31.75 mm	IP68 - Dust Tight Waterproof	Quick Connect Tab	0.25 "	6.35 mm	50 mA	10 mA	UL UR

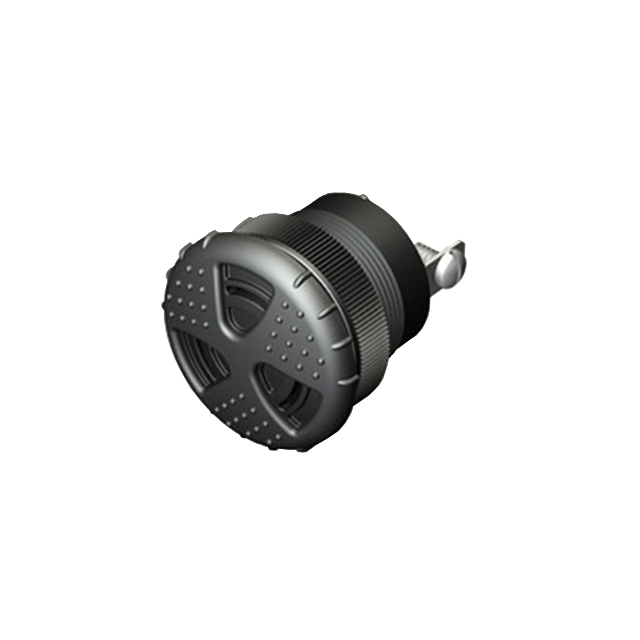

Floyd Bell Inc TXW-V86-515-S(F)	Panel Mount	DC	Piezo	Warble Fast	5 VDC	15 V	1.41 in	35.81 mm	Indicator Internally Driven	Top	2.9 kHz	103 dB	1.25 "	31.75 mm	IP68 - Dust Tight Waterproof	Screw Terminal Quick Connect Tab	0.25 "	6.35 mm	50 mA	10 mA	UL UR
Floyd Bell Inc TXW-V86-515-S(S)	Panel Mount	DC	Piezo	Slow Warble	5 VDC	15 V	1.41 in	35.81 mm	Indicator Internally Driven	Top	2.9 kHz	103 dB	1.25 "	31.75 mm	IP68 - Dust Tight Waterproof	Screw Terminal Quick Connect Tab	0.25 "	6.35 mm	50 mA	10 mA	UL UR
Floyd Bell Inc TXW-V86-515-Q(F)	Panel Mount	DC	Piezo	Warble Fast	5 VDC	15 V	1.41 in	35.81 mm	Indicator Internally Driven	Top	2.9 kHz	103 dB	1.25 "	31.75 mm	IP68 - Dust Tight Waterproof	Quick Connect Tab	0.25 "	6.35 mm	50 mA	10 mA	UL UR

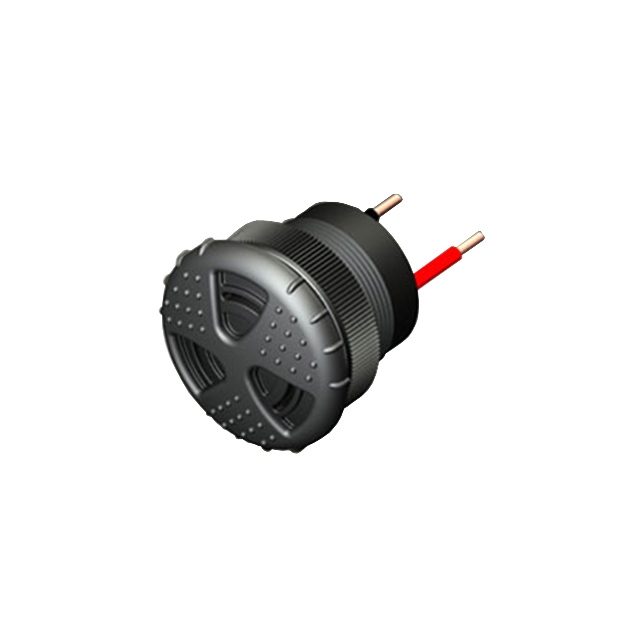

Floyd Bell Inc TXW-V86-515-W(F)	Panel Mount	DC	Piezo	Warble Fast	5 VDC	15 V	1.41 in	35.81 mm	Indicator Internally Driven	Top	2.9 kHz	103 dB	1.25 "	31.75 mm	IP68 - Dust Tight Waterproof	Wire Leads			50 mA	10 mA	UL UR
Floyd Bell Inc TXW-V86-515-W(S)	Panel Mount	DC	Piezo	Slow Warble	5 VDC	15 V	1.41 in	35.81 mm	Indicator Internally Driven	Top	2.9 kHz	103 dB	1.25 "	31.75 mm	IP68 - Dust Tight Waterproof	Wire Leads			50 mA	10 mA	UL UR
