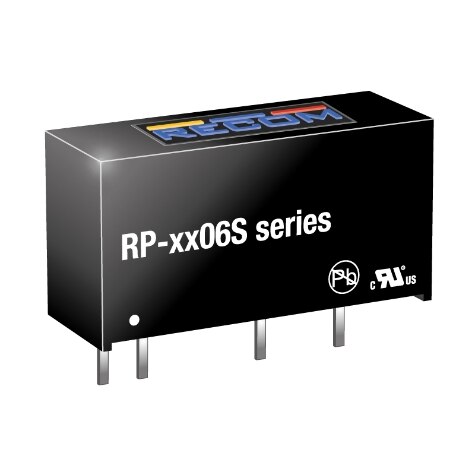

RP-xx06 Series
Isolated DC/DC Converters - Through Hole 1W 15Vin 6Vout 167mA SIP7
Manufacturer: Recom Power
Catalog
Isolated DC/DC Converters - Through Hole 1W 15Vin 6Vout 167mA SIP7
Beta
⌘K
Isolated DC/DC Converters - Through Hole 1W 15Vin 6Vout 167mA SIP7
Isolated DC/DC Converters - Through Hole 1W 15Vin 6Vout 167mA SIP7
Isolated DC/DC Converters - Through Hole 1W 15Vin 6Vout 167mA SIP7
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Type | Efficiency | Applications | Number of Outputs | Voltage - Output 1 [custom] | Current - Output (Max) [Max] | Voltage - Isolation | Voltage - Input (Min) [Min] | Mounting Type | Voltage - Input (Max) [Max] | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Recom Power | 80 °C | -40 C | 10.2 mm | 0.4 " | 0.77 in | 7.1 mm | 0.28 in | 19.6 mm | Isolated Module | 77 % | ITE (Commercial) | 1 | 6 V | 167 mA | 5.2 kV | 10.8 V | Through Hole | 13.2 V | 7-SIP Module 4 Leads |
 Recom Power | 80 °C | -40 C | 10.2 mm | 0.4 " | 0.77 in | 7.1 mm | 0.28 in | 19.6 mm | Isolated Module | 83 % | ITE (Commercial) | 1 | 6 V | 167 mA | 5.2 kV | 13.5 V | Through Hole | 16.5 V | 7-SIP Module 4 Leads |
Recom Power | 80 °C | -40 C | 10.2 mm | 0.4 " | 0.77 in | 7.1 mm | 0.28 in | 19.6 mm | Isolated Module | 81 % | ITE (Commercial) | 1 | 6 V | 167 mA | 5.2 kV | 4.5 V | Through Hole | 5.5 V | 7-SIP Module 4 Leads |
