LMP8603-Q1 Series

AEC-Q100, -22 to 60V, bi-directional current sense amplifier w/ in-line filter capability

Catalog

AEC-Q100, -22 to 60V, bi-directional current sense amplifier w/ in-line filter capability

Part	Slew Rate	Voltage - Input Offset	Mounting Type	Gain Bandwidth Product	Current - Output / Channel	Amplifier Type	Current - Input Bias	Voltage - Supply Span (Min) [Min]	Package / Case	Package / Case [custom]	Package / Case	Number of Circuits	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply Span (Max) [Max]	Current - Supply	Supplier Device Package	Package / Case [y]	Package / Case [x]	Voltage - Supply, Single/Dual (±) [Max]	Voltage - Supply, Single/Dual (±) [Min]	Channels per IC	Board Type	Current - Supply (Main IC)	Output Type	Utilized IC / Part	Supplied Contents
Texas Instruments LMP8603MME/NOPB	0.83 V/µs	150 µV	Surface Mount	60 kHz	48 mA	Current Sense	0.04 pA	3 V	8-MSOP 8-TSSOP	0.118 in	3 mm	1	125 °C	-40 °C	5.5 V	1.1 mA
Texas Instruments LMP8603MM/NOPB	0.83 V/µs	150 µV	Surface Mount	60 kHz	48 mA	Current Sense	0.04 pA	3 V	8-MSOP 8-TSSOP	0.118 in	3 mm	1	125 °C	-40 °C	5.5 V	1.1 mA
Texas Instruments LMP8603QMME/NOPB	0.83 V/µs	150 µV	Surface Mount	60 kHz	48 mA	Current Sense	0.04 pA	3 V	8-MSOP 8-TSSOP	0.118 in	3 mm	1	125 °C	-40 °C	5.5 V	1.1 mA
Texas Instruments LMP8603QMA/NOPB	0.83 V/µs	150 µV	Surface Mount	60 kHz	48 mA	Current Sense	0.04 pA	3 V	8-SOIC			1	125 °C	-40 °C	5.5 V	1.1 mA	8-SOIC	3.9 mm	0.154 in
Texas Instruments LMP8603QMMX/NOPB	0.83 V/µs	150 µV	Surface Mount	60 kHz	48 mA	Current Sense	0.04 pA	3 V	8-MSOP 8-TSSOP	0.118 in	3 mm	1	125 °C	-40 °C	5.5 V	1.1 mA
Texas Instruments LMP8603MA/NOPB	0.83 V/µs	150 µV	Surface Mount	60 kHz	48 mA	Current Sense	0.04 pA	3 V	8-SOIC			1	125 °C	-40 °C	5.5 V	1.1 mA	8-SOIC	3.9 mm	0.154 in

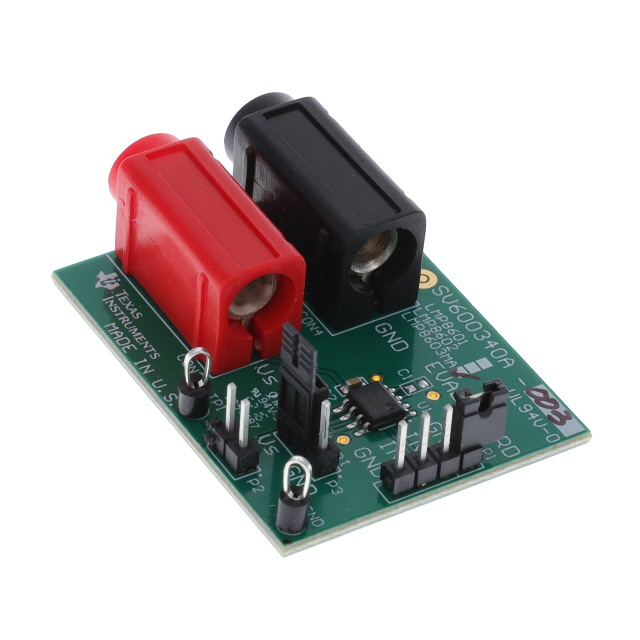

Texas Instruments LMP8603MAEVAL/NOPB	0.83 V/µs				48 mA	Current Sense														5.5 V	3 V	1 - Single	Fully Populated	1.1 mA	Single-Ended	LMP8603	Board(s)

Catalog

AEC-Q100, -22 to 60V, bi-directional current sense amplifier w/ in-line filter capability

Key Features

• Gain = 20x for LMP8601 and LMP8601-Q1Gain = 50x for LMP8602 and LMP8602-Q1Gain = 100x for LMP8603 and LMP8603-Q1TCVOS: 10 µV/°C MaximumCMRR: 90-dB MinimumInput Offset Voltage: 1-mV MaximumCMVR at VS= 3.3 V: –4 V to 27 VCMVR at VS= 5 V: –22 V to 60 VSingle-Supply Bidirectional OperationAll Minimum and Maximum Limits 100% TestedQ1 Devices Qualified for Automotive ApplicationsQ1 Devices ACE-Q100 Qualified With the Following Results:Device Temperature Grade 1: –40°C to 125°C Ambient Operating Temperature RangeDevice Temperature Grade 0: –40°C to 150°C (LMP8601EDRQ1 Only)Device HBM ESD Classification Level 2(3A on inputs)Device CDM ESD Classification Level C6Device MM ESD Classification Level M2Gain = 20x for LMP8601 and LMP8601-Q1Gain = 50x for LMP8602 and LMP8602-Q1Gain = 100x for LMP8603 and LMP8603-Q1TCVOS: 10 µV/°C MaximumCMRR: 90-dB MinimumInput Offset Voltage: 1-mV MaximumCMVR at VS= 3.3 V: –4 V to 27 VCMVR at VS= 5 V: –22 V to 60 VSingle-Supply Bidirectional OperationAll Minimum and Maximum Limits 100% TestedQ1 Devices Qualified for Automotive ApplicationsQ1 Devices ACE-Q100 Qualified With the Following Results:Device Temperature Grade 1: –40°C to 125°C Ambient Operating Temperature RangeDevice Temperature Grade 0: –40°C to 150°C (LMP8601EDRQ1 Only)Device HBM ESD Classification Level 2(3A on inputs)Device CDM ESD Classification Level C6Device MM ESD Classification Level M2

Description

The LMP8601, LMP8602, LMP8603 (LMP860x) and LMP8601-Q1, LMP8602-Q1, LMP8603-Q1 (LMP860x-Q1) devices are fixed-gain, precision current-sense amplifiers (also referred to as current-shunt monitors). The input common-mode voltage range is –22 V to +60 V when operating from a single 5-V supply, or –4 V to +27 V with a 3.3-V supply. The LMP860x and LMP860x-Q1 are ideal parts for unidirectional and bidirectional current sensing applications. These devices have a precise gain of 20x (LPM8601, LPM8601-Q1), 50x (LPM8602, LPM8602-Q1), and 100x (LPM8603, LPM8603-Q1), and are adequate in most targeted applications to drive an ADC to full-scale value. The fixed gain is achieved in two separate stages: a preamplifier with a gain of 10x and an output stage buffer amplifier with a gain of 2x (LMP8601, LMP8601-Q1), 5x (LMP8602, LMP8602-Q1), or 10x (LMP8603, LMP8603-Q1). The path between the two stages is brought out on two pins to enable the option of an additional filter network or modifying the gain. The offset input pin enables these devices for unidirectional or bidirectional single supply voltage current sensing. The LMP860x-Q1 devices incorporate enhanced manufacturing and support processes for the automotive market and are compliant with the AEC-Q100 standard. The LMP8601, LMP8602, LMP8603 (LMP860x) and LMP8601-Q1, LMP8602-Q1, LMP8603-Q1 (LMP860x-Q1) devices are fixed-gain, precision current-sense amplifiers (also referred to as current-shunt monitors). The input common-mode voltage range is –22 V to +60 V when operating from a single 5-V supply, or –4 V to +27 V with a 3.3-V supply. The LMP860x and LMP860x-Q1 are ideal parts for unidirectional and bidirectional current sensing applications. These devices have a precise gain of 20x (LPM8601, LPM8601-Q1), 50x (LPM8602, LPM8602-Q1), and 100x (LPM8603, LPM8603-Q1), and are adequate in most targeted applications to drive an ADC to full-scale value. The fixed gain is achieved in two separate stages: a preamplifier with a gain of 10x and an output stage buffer amplifier with a gain of 2x (LMP8601, LMP8601-Q1), 5x (LMP8602, LMP8602-Q1), or 10x (LMP8603, LMP8603-Q1). The path between the two stages is brought out on two pins to enable the option of an additional filter network or modifying the gain. The offset input pin enables these devices for unidirectional or bidirectional single supply voltage current sensing. The LMP860x-Q1 devices incorporate enhanced manufacturing and support processes for the automotive market and are compliant with the AEC-Q100 standard.
