PHR Series

Catalog

CONN RCPT HSG 4POS 2.00MM

Part	Note	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Number of Rows	Number of Positions	Contact Type	Pitch [x]	Pitch [x]	Fastening Type	Connector Type	Contact Termination	Color	Insulation Material

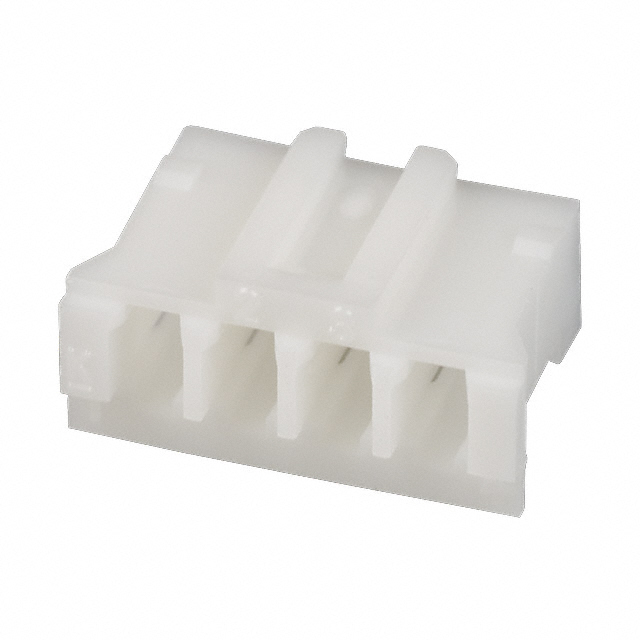

JST Sales America Inc. PHR-4	Contacts Not Included	85 °C	-25 °C	Free Hanging (In-Line)	1	4	Female Socket	0.079 in	2 mm	Detent Lock	Receptacle	Crimp	Natural	Nylon 6/6 Polyamide (PA66)
JST Sales America Inc. PHR-4-Y	Contacts Not Included	85 °C	-25 °C	Free Hanging (In-Line)	1	4	Female Socket	0.079 in	2 mm	Detent Lock	Receptacle	Crimp	Yellow	Nylon 6/6 Polyamide (PA66)
JST Sales America Inc. PHR-4-R	Contacts Not Included	85 °C	-25 °C	Free Hanging (In-Line)	1	4	Female Socket	0.079 in	2 mm	Detent Lock	Receptacle	Crimp	Red	Nylon 6/6 Polyamide (PA66)
JST Sales America Inc. PHR-5-BK	Contacts Not Included	85 °C	-25 °C	Free Hanging (In-Line)	1	5	Female Socket	0.079 in	2 mm	Detent Lock	Receptacle	Crimp	Black	Nylon 6/6 Polyamide (PA66)

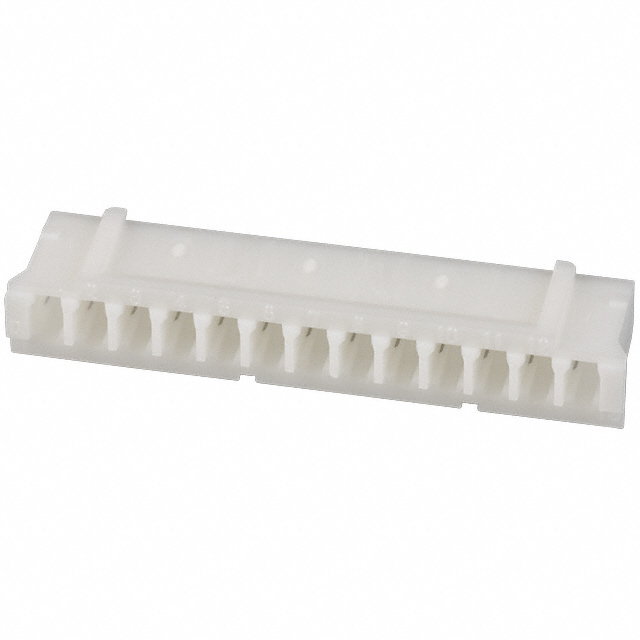

JST Sales America Inc. PHR-13	Contacts Not Included	85 °C	-25 °C	Free Hanging (In-Line)	1	13	Female Socket	0.079 in	2 mm	Detent Lock	Receptacle	Crimp	Natural	Nylon 6/6 Polyamide (PA66)

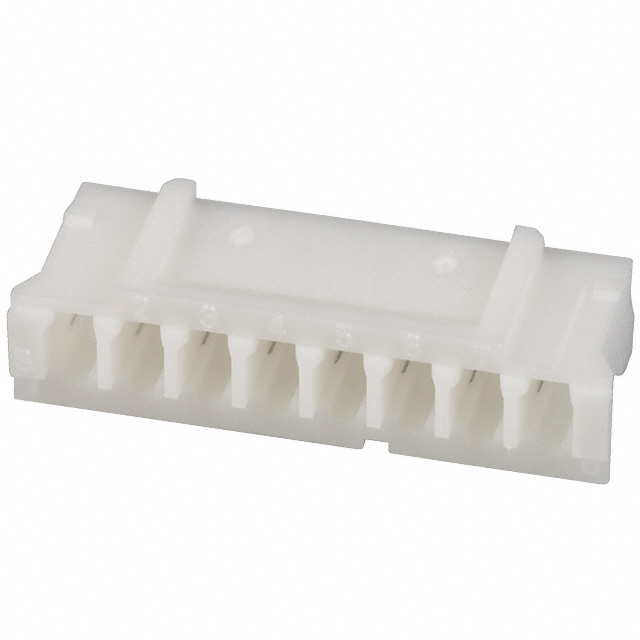

JST Sales America Inc. PHR-8	Contacts Not Included	85 °C	-25 °C	Free Hanging (In-Line)	1	8	Female Socket	0.079 in	2 mm	Detent Lock	Receptacle	Crimp	Natural	Nylon 6/6 Polyamide (PA66)

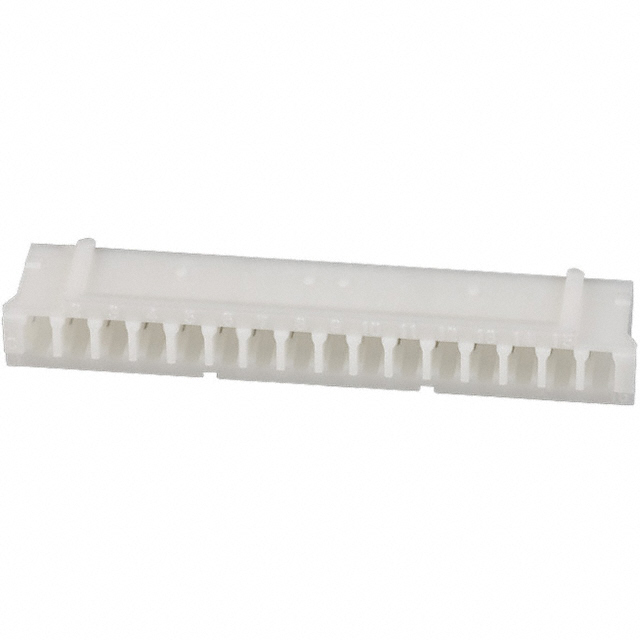

JST Sales America Inc. PHR-16	Contacts Not Included	85 °C	-25 °C	Free Hanging (In-Line)	1	16	Female Socket	0.079 in	2 mm	Detent Lock	Receptacle	Crimp	Natural	Nylon 6/6 Polyamide (PA66)

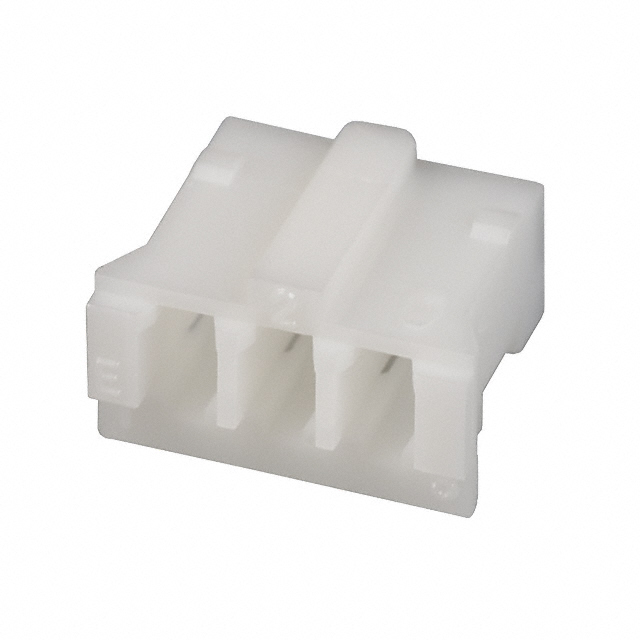

JST Sales America Inc. PHR-3	Contacts Not Included	85 °C	-25 °C	Free Hanging (In-Line)	1		Female Socket	0.079 in	2 mm	Detent Lock	Receptacle	Crimp	Natural	Nylon 6/6 Polyamide (PA66)
JST Sales America Inc. PHR-5-R	Contacts Not Included	85 °C	-25 °C	Free Hanging (In-Line)	1	5	Female Socket	0.079 in	2 mm	Detent Lock	Receptacle	Crimp	Red	Nylon 6/6 Polyamide (PA66)
JST Sales America Inc. PHR-4-BK	Contacts Not Included	85 °C	-25 °C	Free Hanging (In-Line)	1	4	Female Socket	0.079 in	2 mm	Detent Lock	Receptacle	Crimp	Black	Nylon 6/6 Polyamide (PA66)
