19365061 Series
Manufacturer: HARTING
Beta
⌘K

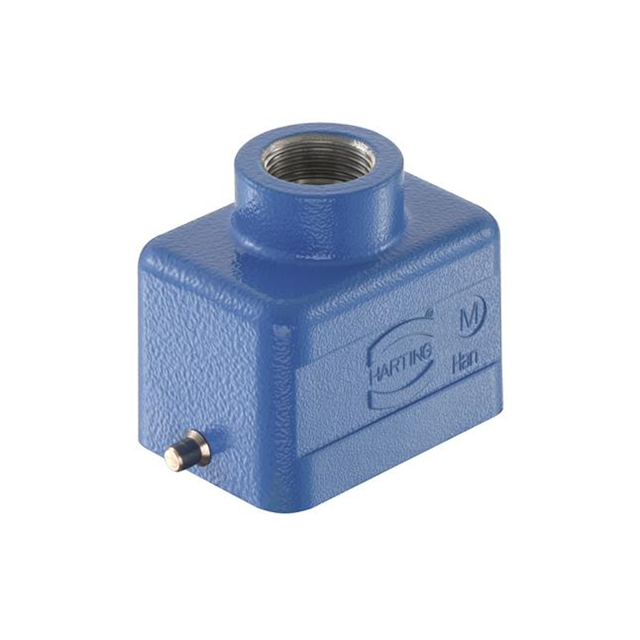

HEAVY DUTY CONNECTOR, M20, HOOD, SIDE ENTRY, ZINC BODY, 1 LEVER, 6B
| Part | Housing Material | Size | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Housing Color | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Ingress Protection | Lock Location | Style | Housing Finish | Thread Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 HARTING | Zinc Die Cast | 6B | 1.693 " 43 mm | 2.362 in | 60 mm | Blue | -20 ░C | 40 °C | Hood | IP65 - Dust Tight Water Resistant | Locking Clip (1) on Base Bottom | Side Entry | Powder Coated | M20 |
 HARTING | Zinc Die Cast | 6B | 1.693 " 43 mm | 2.362 in | 60 mm | Blue | -20 ░C | 40 °C | Hood | IP65 - Dust Tight Water Resistant | Locking Clip (1) on Base Bottom | Side Entry | Powder Coated | M25 |
 HARTING | Zinc Die Cast | 6B | Blue | -20 ░C | 40 °C | Hood | IP65 - Dust Tight Water Resistant | Locking Clip (1) on Base Bottom | Top Entry | Powder Coated | M20 | |||
 HARTING | Zinc Die Cast | 6B | Blue | -20 ░C | 40 °C | Hood | IP65 - Dust Tight Water Resistant | Locking Clip (1) on Base Bottom | Top Entry | Powder Coated | M25 |
