5815 Series
Manufacturer: BRADY
Beta
⌘K

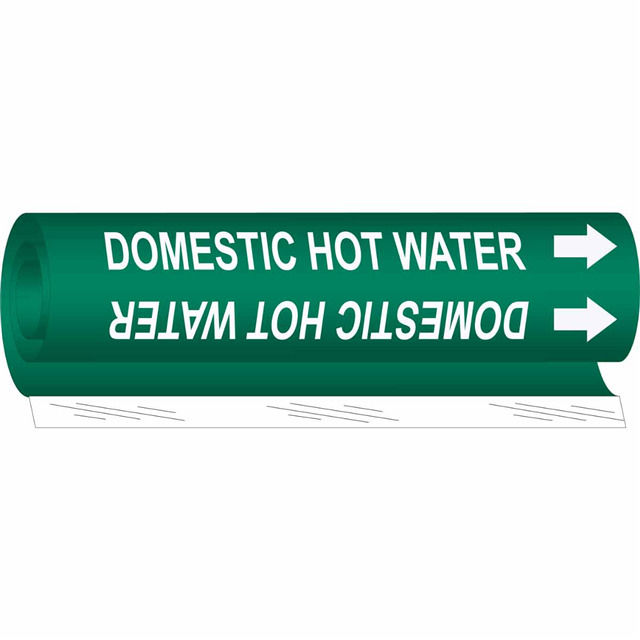

B689 5815-II WHT/GRN STYLE II
| Part | Arrangement | Material - Body | Print Type | Legend (Symbol Only) | Outside Pipe Diameter (Min) [Min] | Outside Pipe Diameter (Min) [Min] | Color - Background | Shape | Language | Features | Outside Pipe Diameter (Max) [Max] | Outside Pipe Diameter (Max) [Max] | Color - Legend | Application Specifics | Mounting Type | Applications | Legend (Text) | Location | Width | Width | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 BRADY | Symbol and Text | Plastic | Pre-Printed | Directional Arrow | 7.875 in | 200.03 mm | Green | Rectangle | 63000 A 69000 A | Abrasion Resistant Chemical Resistant Humidity Resistant UV Resistant Water Resistant Weather Resistant | 63.5 mm | 2.5 in | White | Directionality | Snap On | Pipe | Domestic Hot Water | Outdoor | 304.8 mm | 12 in | 660.4 mm | 26 in |
