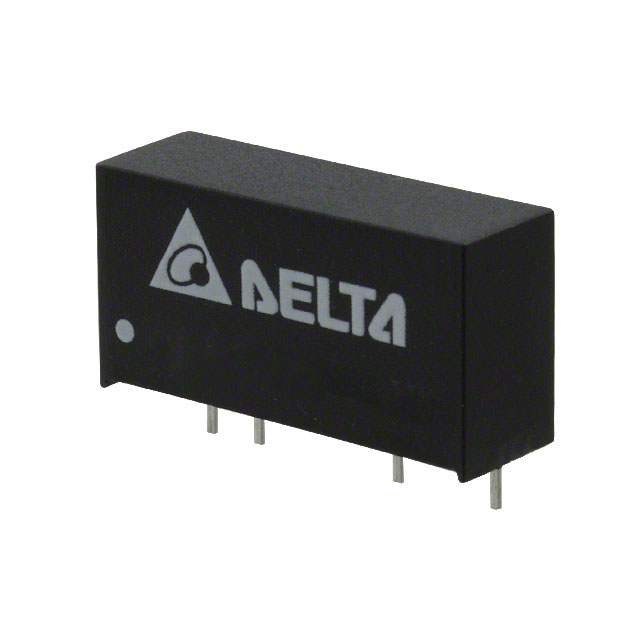

PD01S Series
Manufacturer: Delta Electronics
Beta
⌘K
DC DC CONVERTER 3.3V 1W
| Part | Voltage - Output 1 | Type | Applications | Package / Case | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Current - Output (Max) [Max] | Voltage - Input (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Voltage - Isolation | Features | Efficiency | Voltage - Input (Min) [Min] | Number of Outputs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | 3.3 V | Isolated Module | Medical | 7-SIP Module 4 Leads | 0.4 " | 0.24 " | 0.77 in | 6 mm | 10.2 mm | 19.6 mm | 260 mA | 26.4 V | 85 °C | -40 C | Through Hole | 3000 V | SCP | 73 % | 21.6 V | 1 |
Delta Electronics | 5 V | Isolated Module | Medical | 7-SIP Module 4 Leads | 0.4 " | 0.24 " | 0.77 in | 6 mm | 10.2 mm | 19.6 mm | 200 mA | 26.4 V | 85 °C | -40 C | Through Hole | 3000 V | SCP | 71 % | 21.6 V | 1 |
Delta Electronics | 12 V | Isolated Module | Medical | 7-SIP Module 4 Leads | 0.4 " | 0.24 " | 0.77 in | 6 mm | 10.2 mm | 19.6 mm | 84 mA | 5.5 V | 85 °C | -40 C | Through Hole | 3000 V | SCP | 78 % | 4.5 V | 1 |
Delta Electronics | 12 V | Isolated Module | Medical | 7-SIP Module 4 Leads | 0.4 " | 0.24 " | 0.77 in | 6 mm | 10.2 mm | 19.6 mm | 84 mA | 26.4 V | 85 °C | -40 C | Through Hole | 3000 V | SCP | 78 % | 21.6 V | 1 |
Delta Electronics | 5 V | Isolated Module | Medical | 7-SIP Module 4 Leads | 0.4 " | 0.24 " | 0.77 in | 6 mm | 10.2 mm | 19.6 mm | 200 mA | 13.2 V | 85 °C | -40 C | Through Hole | 3000 V | SCP | 73 % | 10.8 V | 1 |
