ELL-VFG Series

Catalog

FIXED IND 33UH 330MA 1.16OHM SMD

Part	Shielding	Inductance Frequency - Test	Tolerance	Current Rating (Amps)	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Inductance	Current - Saturation (Isat)	Package / Case	Mounting Type	DC Resistance (DCR)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Type

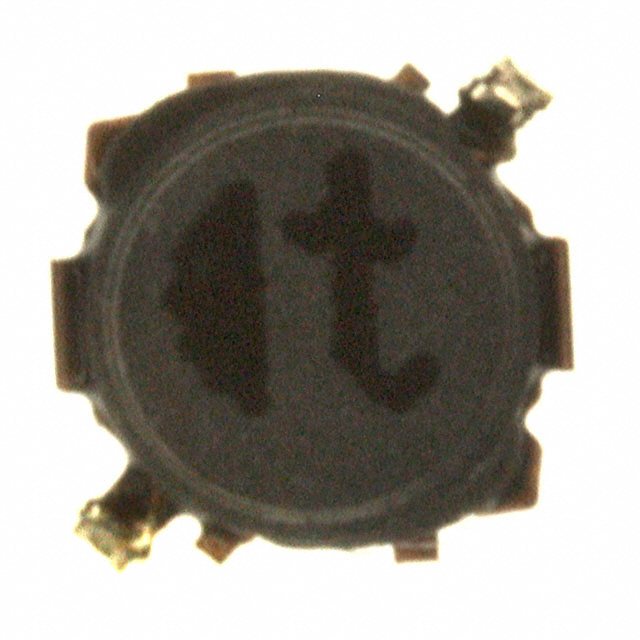

Panasonic Industrial Automation Sales ELL-VFG330MC	Shielded	100 kHz	20 %	0.33 A	0.118 in	3 mm	3 mm	0.118 in	33 µH	280 mA	Nonstandard	Surface Mount	1.16 Ohm	1.2 mm	0.047 in	Wirewound

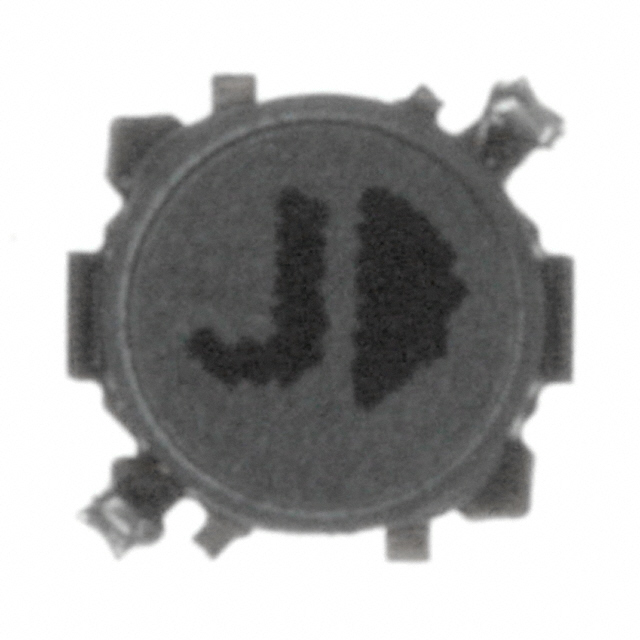

Panasonic Industrial Automation Sales ELL-VFG220MC	Shielded	100 kHz	20 %	430 mA	0.118 in	3 mm	3 mm	0.118 in	22 µH	350 mA	Nonstandard	Surface Mount	710 mOhm	1.2 mm	0.047 in	Wirewound

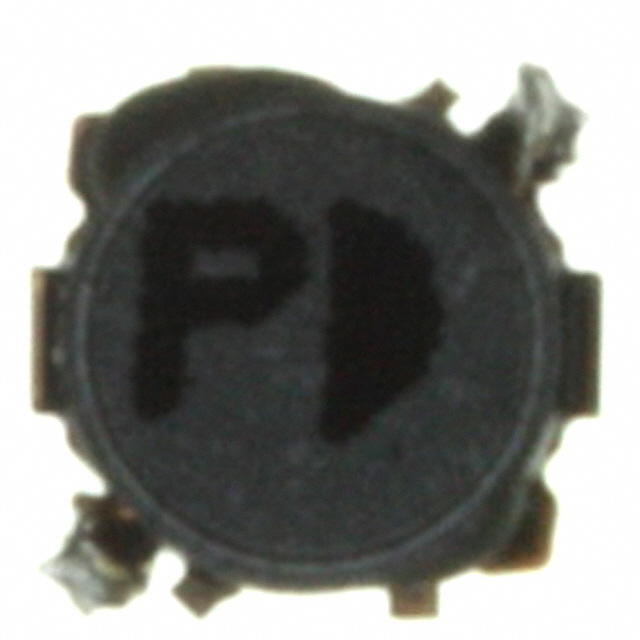

Panasonic Industrial Automation Sales ELL-VFG2R2NC	Shielded	100 kHz	30 %	1.4 A	0.118 in	3 mm	3 mm	0.118 in	2.2 µH	1.1 A	Nonstandard	Surface Mount	87 mOhm	1.2 mm	0.047 in	Wirewound
