2110-7511 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

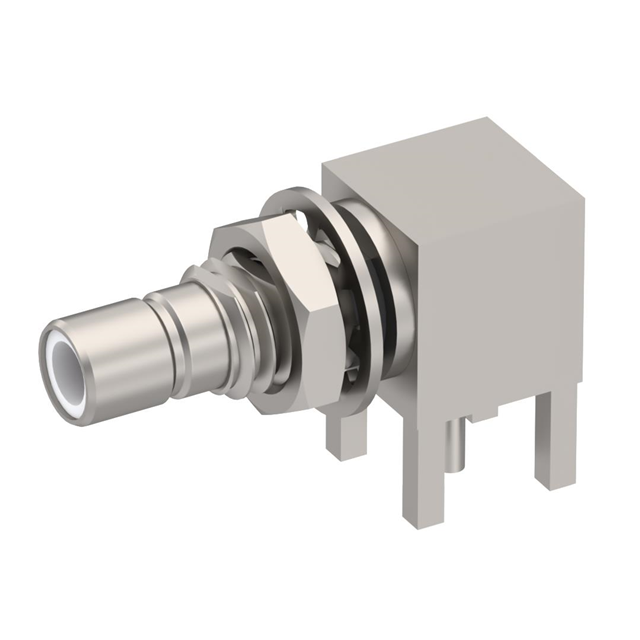

SMB M RA BHD
| Part | Body Finish | Includes | Mating Cycles | Center Contact Plating | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Body Material | Mounting Feature | Connector Type | Number of Ports | Mounting Type | Contact Termination | Frequency - Max [Max] | Center Contact Material | Connector Style | Fastening Type | Impedance | Shield Termination | Housing Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Nickel | 1 Connector 1 Lockwasher 1 Nut | 500 | Gold | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | Brass | Bulkhead - Front Side Nut | Jack Male Pin | 1 | Panel Mount Right Angle Through Hole | Solder | 4 GHz | Brass | SMB | Snap-On | 50 Ohms | Solder | Silver |
