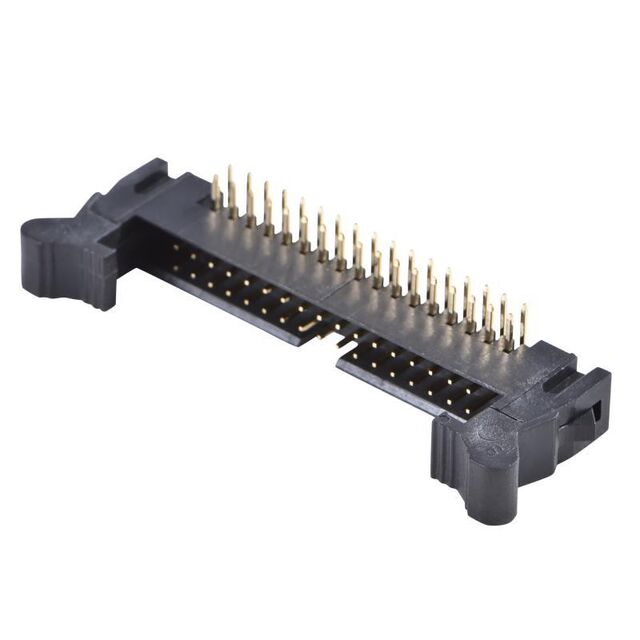

AWHW-200-10 Series
Manufacturer: Assmann WSW Components
Beta
⌘K
DIN 41651 HEADER MALE THR 10PIN
| Part | Insulation Color | Contact Material | Contact Length - Post | Contact Length - Post | Contact Finish - Mating | Row Spacing - Mating | Row Spacing - Mating | Contact Type | Insulation Height | Insulation Height | Fastening Type | Material Flammability Rating | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions Loaded | Number of Rows [custom] | Contact Shape | Style | Contact Finish Thickness - Mating | Contact Length - Mating | Contact Length - Mating | Mounting Type | Features | Connector Type | Pitch - Mating | Pitch - Mating | Insulation Material | Number of Positions | Termination | Shrouding | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Assmann WSW Components | Black | Brass | 0.118 in | 3 mm | Gold | 2 mm | 0.079 in | Male Pin | 8 mm | 0.315 in | Latch Lock/Eject Hooks | UL94 V-0 | -40 C | 105 ░C | All | 2 | Square | Board to Cable/Wire | Flash | 0.142 in | 3.6 mm | Right Angle Through Hole | Keying Slot | Header | 0.079 " | 2 mm | Glass Filled Nylon 9T Polyamide (PA9T) | 10 | Solder | Shrouded - 4 Wall | |
 Assmann WSW Components | Black | Brass | 0.118 in | 3 mm | Gold | 2 mm | 0.079 in | Male Pin | 20.85 mm | 0.821 in | Latch Lock/Eject Hooks | UL94 V-0 | -40 C | 105 ░C | All | 2 | Square | Board to Cable/Wire | Flash | 0.146 in | 3.7 mm | Through Hole | Keying Slot | Header | 0.079 " | 2 mm | Glass Filled Nylon 9T Polyamide (PA9T) | 10 | Solder | Shrouded - 4 Wall | 2 A |
