CIRP03 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN RCPT HSG FMALE 37POS PNL MT

Part	Orientation	Mounting Feature	Note	Shielding	Shell Finish	Number of Positions	Shell Size - Insert	Type	Connector Type	Contact Shape	Shell Material	Insert Material	Fastening Type	Ingress Protection	Contact Size	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Contact Type	Housing Color	Shell Size - Insert	Shell Size - Insert [Max]	Shell Size - Insert [Min]
TE Connectivity AMP Connectors CIRP03T2821SV0N	N (Normal)	Flange	Contacts Not Included	Unshielded	Chromate over Zinc Cobalt	37	21 28	For Female Sockets	Receptacle Housing	Circular	Aluminum Alloy	Thermoplastic	Reverse Bayonet Lock	IP67 - Dust Tight Waterproof	16	-45 °C	125 °C	Panel Mount	Crimp	Black

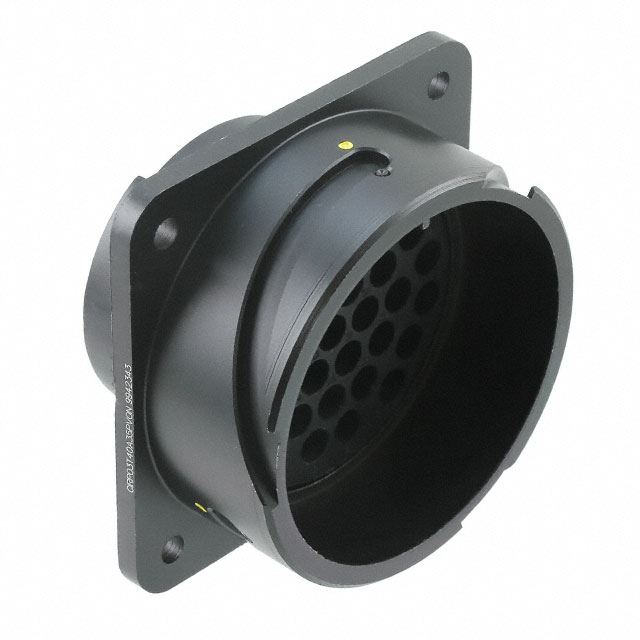

TE Connectivity AMP Connectors CIRP03T40A35PV0N	N (Normal)	Flange	Contacts Not Included	Unshielded	Chromate over Zinc Cobalt	35		For Male Pins	Receptacle Housing	Circular	Aluminum Alloy	Thermoplastic	Reverse Bayonet Lock	IP67 - Dust Tight Waterproof	12	-45 °C	125 °C	Panel Mount	Crimp	Black	40-A35

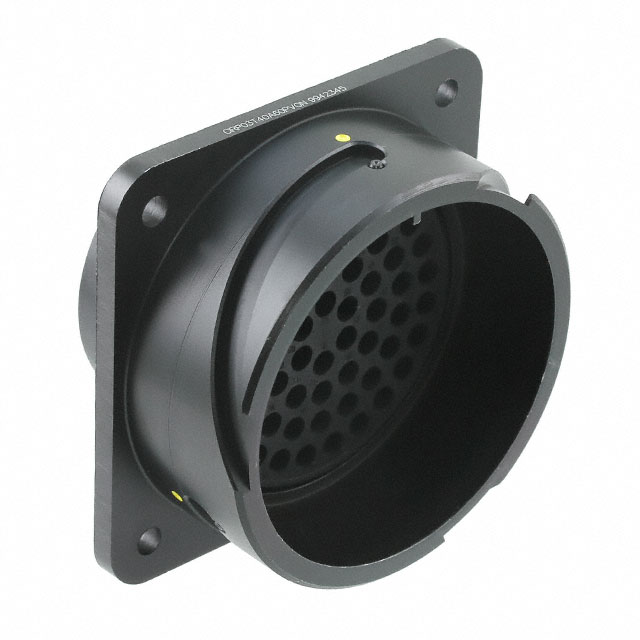

TE Connectivity AMP Connectors CIRP03T40A60PV0N	N (Normal)	Flange	Contacts Not Included	Unshielded	Chromate over Zinc Cobalt	60		For Male Pins	Receptacle Housing	Circular	Aluminum Alloy	Thermoplastic	Reverse Bayonet Lock	IP67 - Dust Tight Waterproof	16	-45 °C	125 °C	Panel Mount	Crimp	Black	40-A60
TE Connectivity AMP Connectors CIRP03T2214PV0N	N (Normal)	Flange	Contacts Not Included	Unshielded	Chromate over Zinc Cobalt	19		For Male Pins	Receptacle Housing	Circular	Aluminum Alloy	Thermoplastic	Reverse Bayonet Lock	IP67 - Dust Tight Waterproof	16	-45 °C	125 °C	Panel Mount	Crimp	Black	22-14

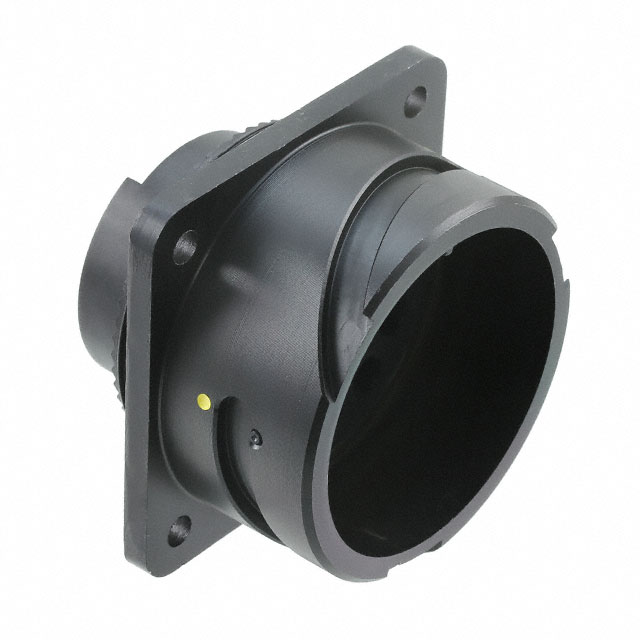

TE Connectivity AMP Connectors CIRP03T32A13PV0N	N (Normal)	Flange	Contacts Not Included	Unshielded	Chromate over Zinc Cobalt	13		For Male Pins	Receptacle Housing	Circular	Aluminum Alloy	Thermoplastic	Reverse Bayonet Lock	IP67 - Dust Tight Waterproof	12	-45 °C	125 °C	Panel Mount	Crimp	Black	32-A13

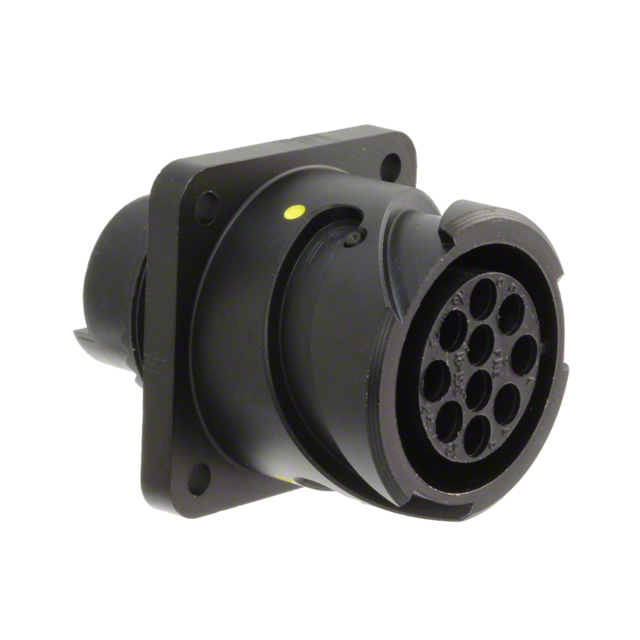

TE Connectivity AMP Connectors CIRP03T1819SV0N	N (Normal)	Flange	Contacts Not Included	Unshielded	Chromate over Zinc Cobalt	10		For Female Sockets	Receptacle Housing	Circular	Aluminum Alloy	Thermoplastic	Reverse Bayonet Lock	IP67 - Dust Tight Waterproof	16	-45 °C	125 °C	Panel Mount	Crimp	Black		19	18

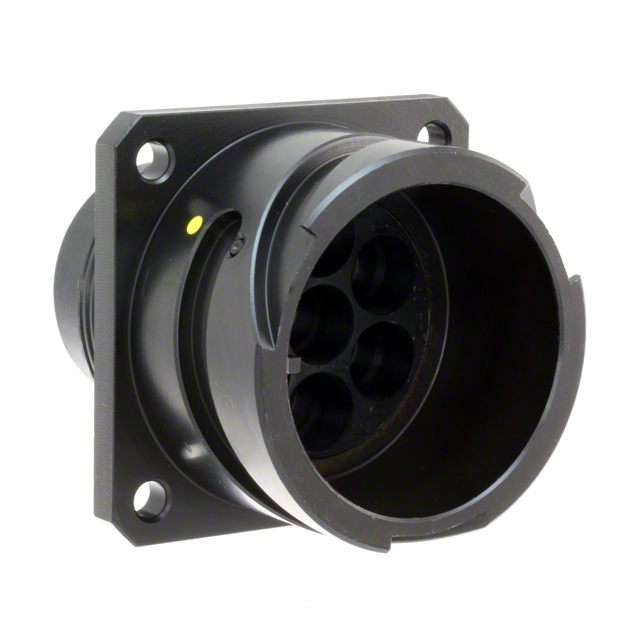

TE Connectivity AMP Connectors CIRP03T2410PV0N	N (Normal)	Flange	Contacts Not Included	Unshielded	Chromate over Zinc Cobalt	7		For Male Pins	Receptacle Housing	Circular	Aluminum Alloy	Thermoplastic	Reverse Bayonet Lock	IP67 - Dust Tight Waterproof	8	-45 °C	125 °C	Panel Mount	Crimp	Black		10	24
