746-092 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 92POS 0.125

Part	Termination Rows [custom]	Material - Insulation	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Contact Type	Gender	Card Type	Pitch	Pitch	Contact Finish	Number of Rows [custom]	Number of Positions/Bay/Row	Color	Read Out	Number of Positions	Termination	Card Thickness [Max]	Card Thickness [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type
EDAC Inc. 746-092-545-606	2	Polyester Thermoplastic	30 Áin	0.76 Ám	Copper Alloy	Cantilever	Female	Non Specified - Dual Edge	3.18 mm	0.125 in	Gold	2	46	Black	Dual	92	Press-Fit Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Through Hole
EDAC Inc. 746-092-545-201	2	Polyester Thermoplastic	30 Áin	0.76 Ám	Copper Alloy	Cantilever	Female	Non Specified - Dual Edge	3.18 mm	0.125 in	Gold	2	46	Black	Dual	92	Press-Fit Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Through Hole
EDAC Inc. 746-092-545-601	2	Polyester Thermoplastic	30 Áin	0.76 Ám	Copper Alloy	Cantilever	Female	Non Specified - Dual Edge	3.18 mm	0.125 in	Gold	2	46	Black	Dual	92	Press-Fit Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Through Hole
EDAC Inc. 746-092-553-206	2	Polyester Thermoplastic	30 Áin	0.76 Ám	Copper Alloy	Cantilever	Female	Non Specified - Dual Edge	3.18 mm	0.125 in	Gold	2	46	Black	Dual	92	Press-Fit Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Through Hole
EDAC Inc. 746-092-560-206	2	Polyester Thermoplastic	30 Áin	0.76 Ám	Copper Alloy	Cantilever Make Before Break	Female	Non Specified - Dual Edge	3.18 mm	0.125 in	Gold	2	46	Black	Dual	92	Press-Fit	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Through Hole
EDAC Inc. 746-092-540-601	2	Polyester Thermoplastic	30 Áin	0.76 Ám	Copper Alloy	Cantilever	Female	Non Specified - Dual Edge	3.18 mm	0.125 in	Gold	2	46	Black	Dual	92	Press-Fit Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Through Hole
EDAC Inc. 746-092-540-206	2	Polyester Thermoplastic	30 Áin	0.76 Ám	Copper Alloy	Cantilever	Female	Non Specified - Dual Edge	3.18 mm	0.125 in	Gold	2	46	Black	Dual	92	Press-Fit Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Through Hole

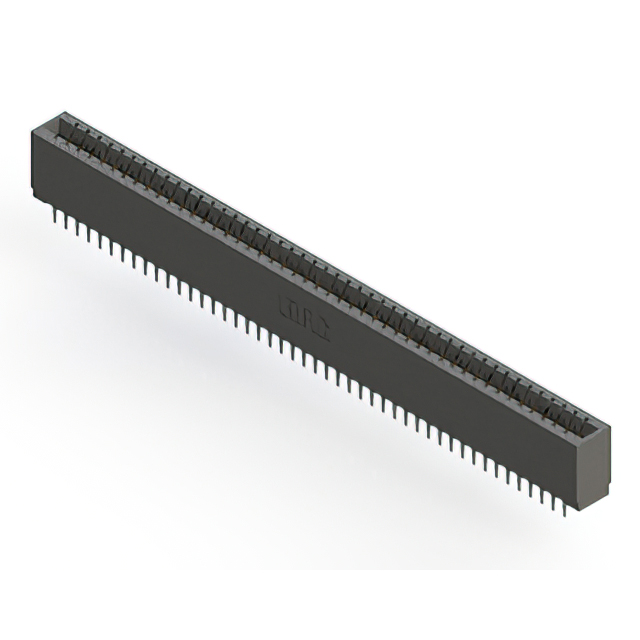

EDAC Inc. 746-092-525-601	2	Polyester Thermoplastic	30 Áin	0.76 Ám	Copper Alloy	Cantilever	Female	Non Specified - Dual Edge	3.18 mm	0.125 in	Gold	2	46	Black	Dual	92	Press-Fit	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Through Hole
EDAC Inc. 746-092-541-606	2	Polyester Thermoplastic	30 Áin	0.76 Ám	Copper Alloy	Cantilever	Female	Non Specified - Dual Edge	3.18 mm	0.125 in	Gold	2	46	Black	Dual	92	Press-Fit Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Through Hole
EDAC Inc. 746-092-553-601	2	Polyester Thermoplastic	30 Áin	0.76 Ám	Copper Alloy	Cantilever	Female	Non Specified - Dual Edge	3.18 mm	0.125 in	Gold	2	46	Black	Dual	92	Press-Fit Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Through Hole
