LMR33630-Q1 Series

SIMPLE SWITCHER® 3.8V to 36V, 3A Synchronous Buck Converter With Ultra-Low EMI

Catalog

SIMPLE SWITCHER® 3.8V to 36V, 3A Synchronous Buck Converter With Ultra-Low EMI

Part	Supplier Device Package	Package / Case	Voltage - Output (Min/Fixed)	Frequency - Switching	Topology	Qualification	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output	Voltage - Input (Max) [Max]	Number of Outputs	Voltage - Output (Max)	Grade	Output Type	Function	Mounting Type	Voltage - Input (Min) [Min]	Output Configuration	Regulator Topology	Board Type	Main Purpose	Supplied Contents	Voltage - Output	Outputs and Type	Outputs and Type	Utilized IC / Part	Voltage - Input [Max]	Voltage - Input [Min]	Package / Case [y]	Package / Case [x]
Texas Instruments LMR33630AQRNXTQ1	12-VQFN-HR (3x2)	12-PowerVFQFN	1 V	400 kHz	Buck	AEC-Q100	-40 °C	125 °C	3 A	36 V	1	24 V	Automotive	Adjustable	Step-Down	Surface Mount Wettable Flank	3.8 V	Positive
Texas Instruments LMR33630BRNXR	12-VQFN-HR (3x2)	12-PowerVFQFN	1 V	1.4 MHz	Buck		-40 °C	125 ¯C	3 A	36 V	1	24 V		Adjustable	Step-Down	Surface Mount Wettable Flank	3.8 V	Positive

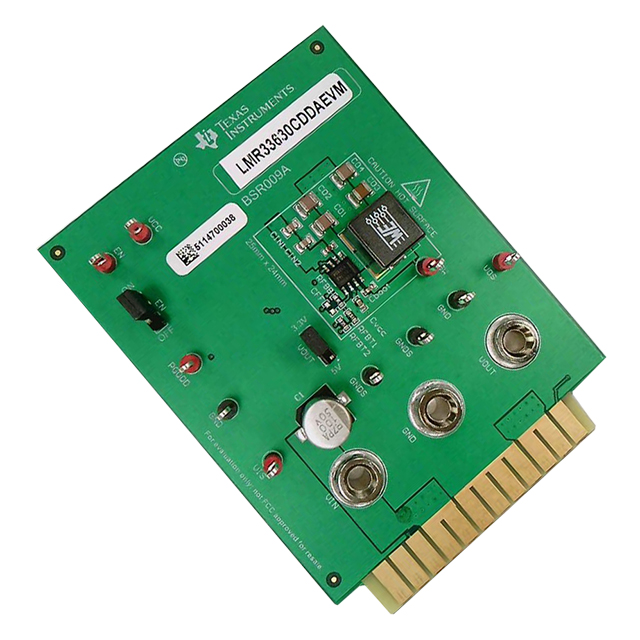

Texas Instruments LMR33630CDDAEVM				2.1 MHz					3 A										Buck	Fully Populated	DC/DC Step Down	Board(s)	3.3 V 5 V	Non-Isolated	1	LMR33630	36 V	5 V
Texas Instruments LMR33630ADDAR	8-SO PowerPad	8-PowerSOIC	1 V	400 kHz	Buck		-40 °C	125 ¯C	3 A	36 V	1	24 V		Adjustable	Step-Down	Surface Mount	3.8 V	Positive											3.9 mm	0.154 in
Texas Instruments LMR33630ARNXT	12-VQFN-HR (3x2)	12-PowerVFQFN	1 V	400 kHz	Buck		-40 °C	125 ¯C	3 A	36 V	1	24 V		Adjustable	Step-Down	Surface Mount Wettable Flank	3.8 V	Positive
Texas Instruments LMR33630CDDA	8-SO PowerPad	8-PowerSOIC	1 V	2.1 MHz	Buck		-40 °C	125 ¯C	3 A	36 V	1	24 V		Adjustable	Step-Down	Surface Mount	3.8 V	Positive											3.9 mm	0.154 in
Texas Instruments LMR33630BQRNXTQ1	12-VQFN-HR (3x2)	12-PowerVFQFN	1 V	1.4 MHz	Buck	AEC-Q100	-40 °C	125 °C	3 A	36 V	1	24 V	Automotive	Adjustable	Step-Down	Surface Mount Wettable Flank	3.8 V	Positive
Texas Instruments LMR33630CRNXR	12-VQFN-HR (3x2)	12-PowerVFQFN	1 V	2.1 MHz	Buck		-40 °C	125 ¯C	3 A	36 V	1	24 V		Adjustable	Step-Down	Surface Mount Wettable Flank	3.8 V	Positive

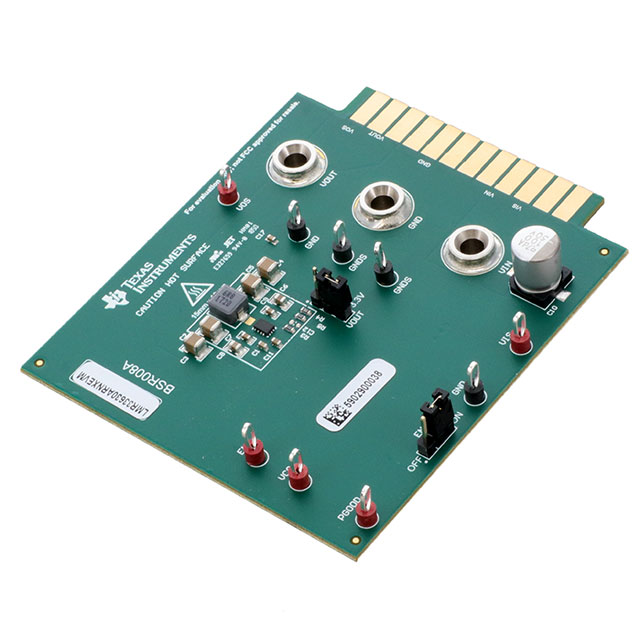

Texas Instruments LMR33630ARNXEVM				400 kHz					3 A										Buck	Fully Populated	DC/DC Step Down	Board(s)	3.3 V 5 V	Non-Isolated	1	LMR33630	36 V	5 V
Texas Instruments LMR33630CRNXEVM				2.1 MHz					3 A										Buck	Fully Populated	DC/DC Step Down	Board(s)	3.3 V 5 V	Non-Isolated	1	LMR33630	36 V	5 V

Catalog

SIMPLE SWITCHER® 3.8V to 36V, 3A Synchronous Buck Converter With Ultra-Low EMI

Key Features

• Functional Safety-CapableDocumentation available to aid functional safety system designConfigured for rugged industrial applicationsInput voltage range: 3.8 V to 36 VOutput voltage range: 1 V to 24 VOutput current: 3 A75-mΩ/50-mΩ RDS-ONpower MOSFETsPeak-current-mode controlShort minimum on-time of 68 nsFrequency: 400 kHz, 1.4 MHz, 2.1 MHzJunction temperature range –40°C to +125°CLow EMI and low switching noiseIntegrated compensation networkLow EMI and switching noiseHotRod™ packageParallel input current pathsHigh power conversion at all loadsPeak efficiency > 95%Low operating quiescent current of 25 µAFlexible system interfacePower-good flag and precision enableUseTPSM53603module for faster time to marketCreate a custom design using the LMR33630 with theWEBENCH Power DesignerFunctional Safety-CapableDocumentation available to aid functional safety system designConfigured for rugged industrial applicationsInput voltage range: 3.8 V to 36 VOutput voltage range: 1 V to 24 VOutput current: 3 A75-mΩ/50-mΩ RDS-ONpower MOSFETsPeak-current-mode controlShort minimum on-time of 68 nsFrequency: 400 kHz, 1.4 MHz, 2.1 MHzJunction temperature range –40°C to +125°CLow EMI and low switching noiseIntegrated compensation networkLow EMI and switching noiseHotRod™ packageParallel input current pathsHigh power conversion at all loadsPeak efficiency > 95%Low operating quiescent current of 25 µAFlexible system interfacePower-good flag and precision enableUseTPSM53603module for faster time to marketCreate a custom design using the LMR33630 with theWEBENCH Power Designer

Description

The LMR33630 SIMPLE SWITCHER regulator is an easy-to-use, synchronous, step-down DC/DC converter that delivers best-in-class efficiency for rugged industrial applications. The LMR33630 drives up to 3 A of load current from an input of up to 36 V. The LMR33630 provides high light load efficiency and output accuracy in a very small solution size. Features such as a power-good flag and precision enable provide both flexible and easy-to-use solutions for a wide range of applications. The LMR33630 automatically folds back frequency at light load to improve efficiency. Integration eliminates most external components and provides a pinout designed for simple PCB layout. Protection features include thermal shutdown, input undervoltage lockout, cycle-by-cycle current limit, and hiccup short-circuit protection. The LMR33630 is available in an 8-pin HSOIC package and in a 12-pin 3 mm × 2 mm next generation VQFN package with wettable flanks. This device is also available in an AEC-Q100-qualified version. The LMR33630 SIMPLE SWITCHER regulator is an easy-to-use, synchronous, step-down DC/DC converter that delivers best-in-class efficiency for rugged industrial applications. The LMR33630 drives up to 3 A of load current from an input of up to 36 V. The LMR33630 provides high light load efficiency and output accuracy in a very small solution size. Features such as a power-good flag and precision enable provide both flexible and easy-to-use solutions for a wide range of applications. The LMR33630 automatically folds back frequency at light load to improve efficiency. Integration eliminates most external components and provides a pinout designed for simple PCB layout. Protection features include thermal shutdown, input undervoltage lockout, cycle-by-cycle current limit, and hiccup short-circuit protection. The LMR33630 is available in an 8-pin HSOIC package and in a 12-pin 3 mm × 2 mm next generation VQFN package with wettable flanks. This device is also available in an AEC-Q100-qualified version.
