LMZ30602 Series

Catalog

2.95V TO 6V, 2A STEP-DOWN POWER MODULE IN 9X11X2.8MM QFN PACKAGE

Part	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Mounting Type	Features	Efficiency	Type	Number of Outputs	Package / Case	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Control Features	Applications	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Utilized IC / Part	Main Purpose	Supplied Contents	Outputs and Type	Outputs and Type	Regulator Topology	Voltage - Output	Board Type	Voltage - Input [Min]	Voltage - Input [Max]	Current - Output

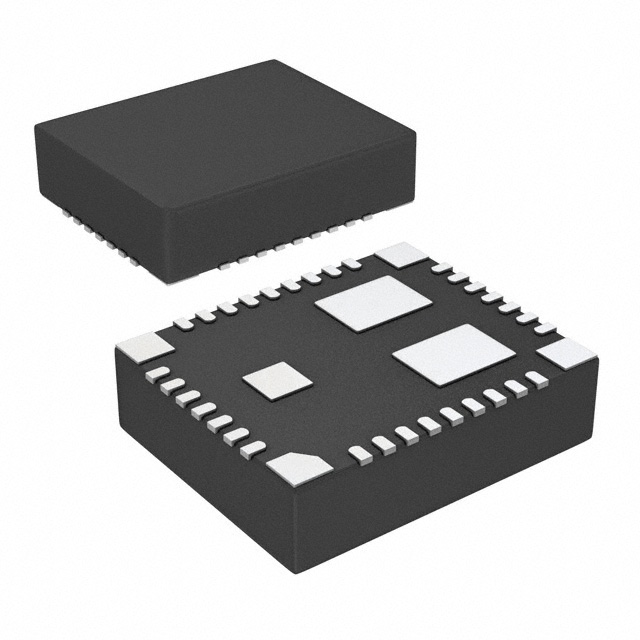

Texas Instruments LMZ30602RKGR	0.8 V	3.6 V	Surface Mount	OCP OTP UVLO	95 %	Non-Isolated PoL Module	1	39-BQFN Exposed Pad	2 A	6 V	2.95 V	Active High Enable	ITE (Commercial)	0.36 "	0.11 in	9.2 mm	2.9 mm	0.44 "	11.2 mm	85 °C	-40 °C

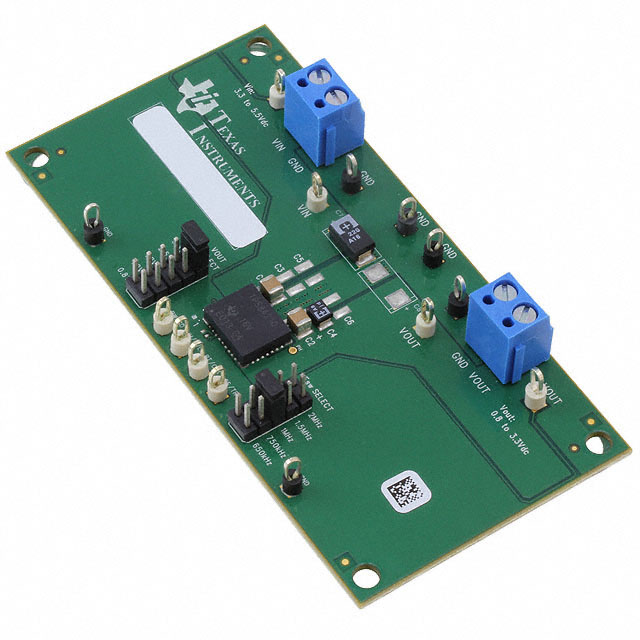

Texas Instruments LMZ30602EVM-002																						LMZ30602	DC/DC Step Down	Board(s)	Non-Isolated	1	Buck	0.8 V 1.2 V 1.8 V 2.5 V 3.3 V	Fully Populated	2.95 V	6 V	2 A
